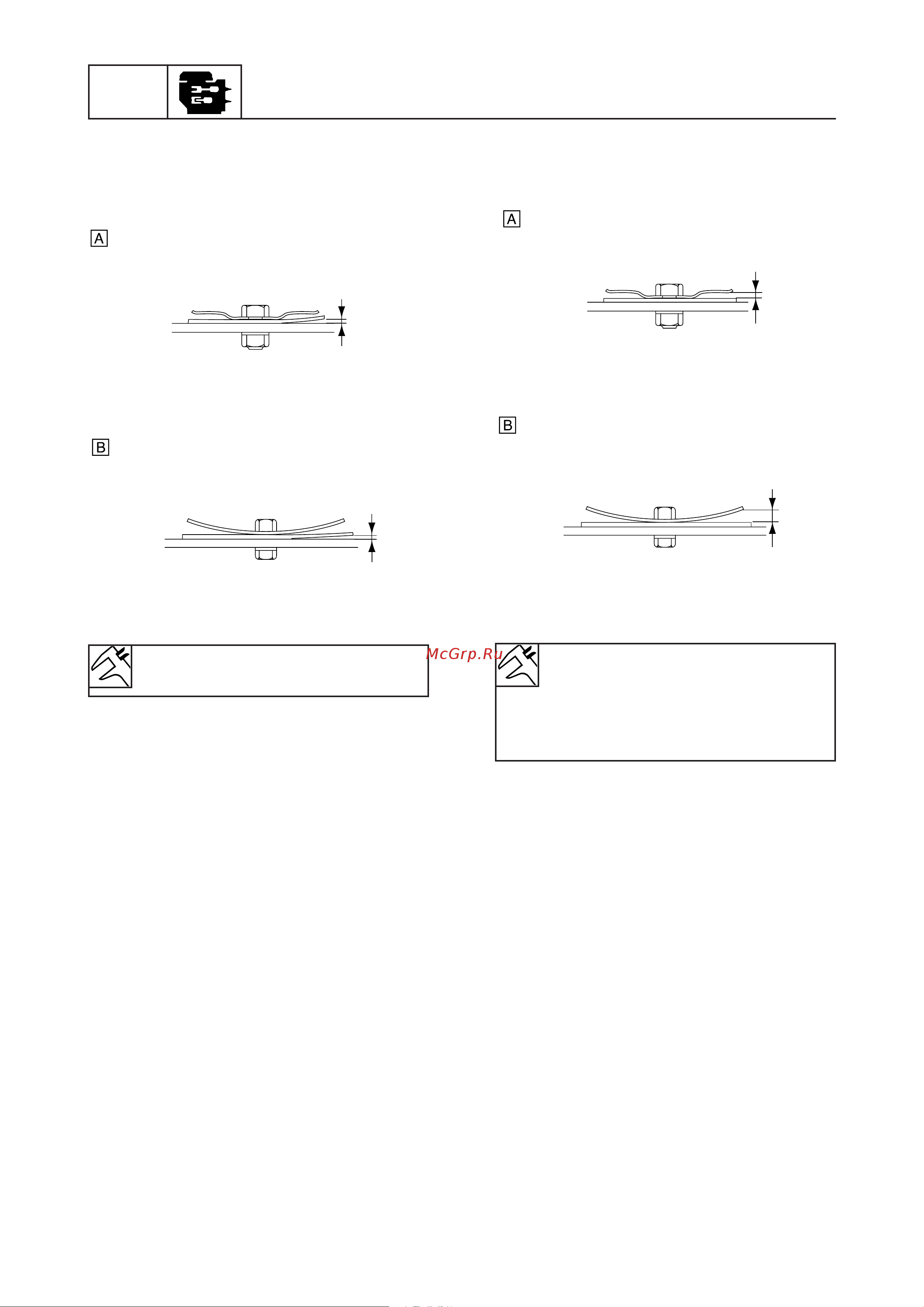

Checking the reed valve
1. Check the reed valves for bends a.
Replace the reed valves if above specifi-
cation.
å E25B, 25B
∫ 25X, E30H, 30H
POWR
5-21
69R3J11
Power unit
2. Measure the reed valve stopper height
b. Replace the reed valve stopper if out
of specification.
å E25B, 25B
∫ 25X, E30H, 30H
6S650210
b
69R5020A
b
Valve stopper height b:
E25B, 25B: 1.7–2.3 mm
(0.0669–0.0906 in)
25X, E30H, 30H: 4.75–5.75 mm
(0.1870–0.2264 in)
Valve bend limit a:
0.2 mm (0.0079 in)
6S650200
a
69R5020B
a
69R3J11_05.qxd 06.7.6 1:32 PM Page 23
