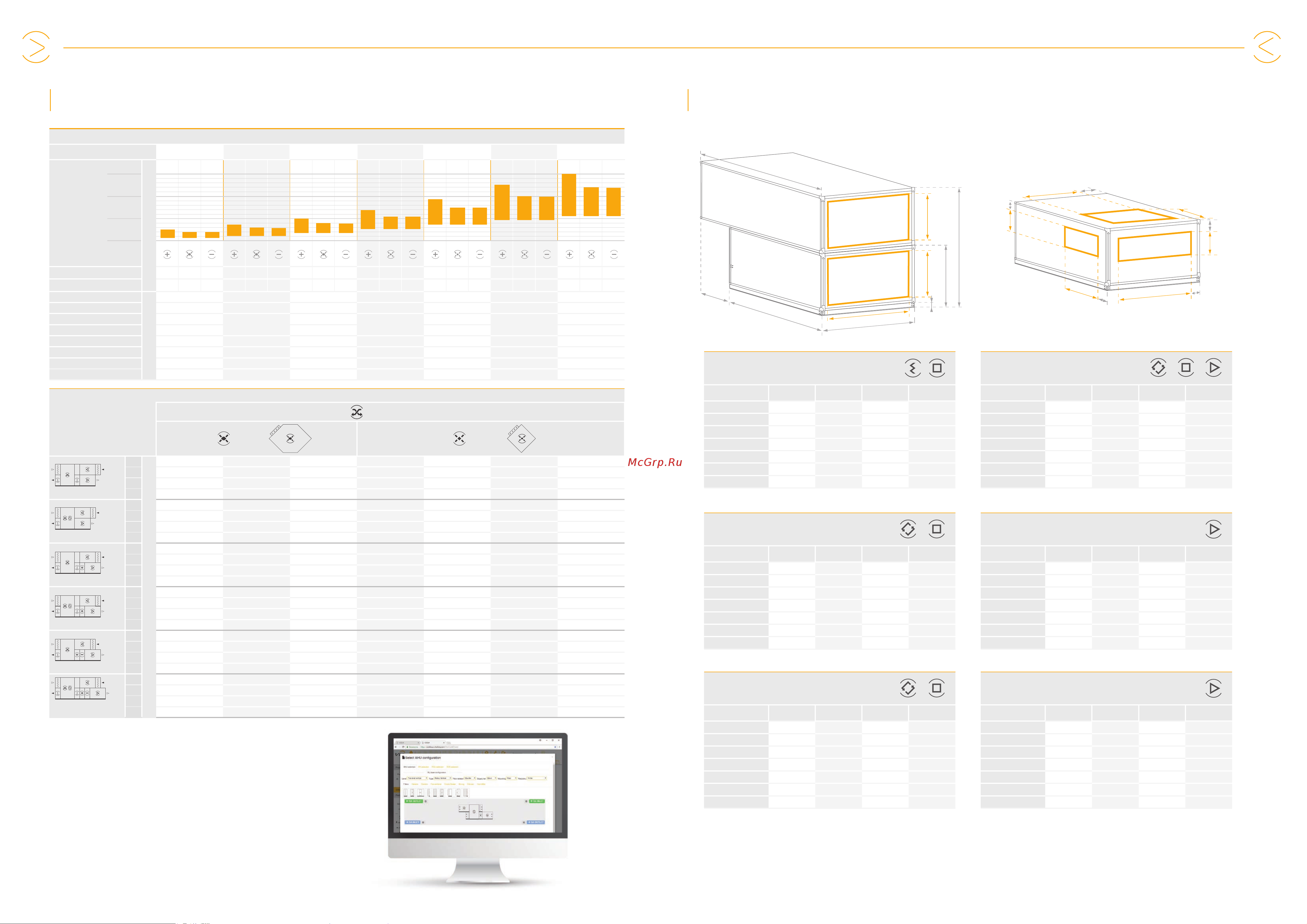

VTS Ventus VVS650 [14/55] Max airflow
![VTS Ventus VVS650 [14/55] Max airflow](/views2/1894673/page14/bge.png)
Entire range of conguration
in ClimaCAD OnLine 4 selection tool.
www.ccol4.com
Length of selected congurations
FPDV/FVPD_cd
L2
[mm]
2 928 3 294 3 294 3 294 3 294 4 026 4 026
L1
2 562 2 928 2 928 2 928 3 294 4 026 4 026
K
366 366 366 366 0 0 0
Lt
2 928 3 294 3 294 3 294 3 294 4 026 4 026
FPDHV/FVPD_cd
L2
2 928 3 294 3 294 3 294 3 294 4 026 4 026
L1
2 562 2 928 2 928 2 928 3 294 4 026 4 026
K
366 366 366 366 0 0 0
Lt
2 928 3 294 3 294 3 294 3 294 4 026 4 026
FPDHV/FVPD_cd
L2
2 928 3 294 3 294 3 294 3 294 4 026 4 026
L1
2 928 3 294 3 294 3 294 3 660 4 392 4 392
K
0 0 0 0 0 0 0
Lt
2 928 3 294 3 294 3 294 3 660 4 392 4 392
FPDMHV/FVMPD_cd
L2
2 928 3 294 3 294 3 294 3 294 4 026 4 026
L1
2 928 3 294 3 294 3 294 3 660 4 392 4 392
K
0 0 0 0 0 0 0
Lt
2 928 3 294 3 294 3 294 3 660 4 392 4 392
FPHCV/FVPD_cd
L2
2 928 3 294 3 294 3 294 3 294 4 026 4 026
L1
3 294 3 660 3 660 3 660 4 026 4 758 4 758
K
0 0 0 0 0 0 0
Lt
3 294 3 660 3 660 3 660 4 026 4 758 4 758
FPDMHCV/FVMPD_cd
L2
2 928 3 294 3 294 3 294 3 294 4 026 4 026
L1
3 294 3 660 3 660 3 660 4 026 4 758 4 758
K
0 0 0 0 0 0 0
Lt
3 294 3 660 3 660 3 660 4 026 4 758 4 758
VVS 021-120 – RECUPERATOR (HEX & PREMIUM PLUS)
DimensionSelected congurations
Recommended airow range
Unit size VVS021 VVS030 VVS040 VVS055 VVS075 VVS100 VVS120
[m
3
/h]
Min airow
806 806 806 1 180 1 180 1 180 1 958 1 958 1 958 2 878 2 878 2 878 3 805 3 805 3 805 4 863 4 863 4 863 5 815 5 815 5 815
Max airow
2 730 2 184 2 163 3 900 3 120 3 090 5 200 4 160 4 120 7 150 5 720 5 665 9 750 7 800 7 725 13 000 10 400 10 300 15 600 12 480 12 360
H
fd
[mm]
90 90 90 90 90 90 90
H
fu
- - - - - - -
H 538 670 670 805 925 1025 1062
W 961 961 1168 1339 1480 1660 1891
H
i
368 500 500 635 755 855 892
W
i
881 881 1088 1259 1400 1580 1811
H
2
986 1250 1250 1520 1760 1960 2034
I
40 40 40 40 40 40 40
18 000
12 000
6 000
0
Nominal parameters
Full-face horizontal outlet
END (FF)
Size
WA HA WA1 HA1
VVS021 821 313 70 67,5
VVS030 821 440 70 70
VVS040 1 028 440 70 70
VVS055 1 199 575 70 70
VVS075 1 340 695 70 70
VVS100 1 520 795 70 70
VVS120 1 751 832 70 70
Small horizontal inlet-outlet
END (FS)
Size WA HA WA1 HA1
VVS021 500 220 228 112
VVS030 500 220 228 178
VVS040 660 250 252 163
VVS055 821 440 257 135
VVS075 1 028 440 224 195
VVS100 1 199 575 228 200
VVS120 1 199 575 344 196
Vertical inlet-outlet
END (US)
Size
WB LB WB1 LB1
VVS021 500 220 228 200
VVS030 500 220 228 200
VVS040 660 250 252 200
VVS055 821 440 257 200
VVS075 1 028 440 224 200
VVS100 1 199 575 228 125
VVS120 1 199 575 344 125
Vertical outlet
END (US)
Size WB LB WB1 LB1
VVS021 660 250 152 212
VVS030 613 380 173 127
VVS040 821 440 175 127
VVS055 1 028 440 157 212
VVS075 1 199 575 142 212
VVS100 1 340 695 162 212
VVS120 1 520 795 187 127
Side inlet-outlet
END (BS)
Size
HC LC HC1 LC1
VVS021 213 380 115 165
VVS030 313 380 131 165
VVS040 313 380 131 165
VVS055 413 380 149 165
VVS075 413 380 209 165
VVS100 613 380 159 165
VVS120 613 380 177 165
Side outlet
END (BS)
Size HC LC HC1 LC1
VVS021 213 380 114 202
VVS030 313 380 180 202
VVS040 313 380 165 202
VVS055 413 380 137 202
VVS075 413 380 197 202
VVS100 613 380 158 127
VVS120 613 380 198 127
DIMENSIONS - VVS 021-120
– RECUPERATOR (HEX & PREMIUM PLUS)
W
L1
H2
H
Wi
Hi
K=L11
Hi
L2
HC
HC 1
HA HA 1
LB
LB
1
WA
WA1
WB
WB 1
LC
LC 1
Hfd
