VTS Ventus VVS650 [44/55] Remote monitoring and management of the operating parameters of the unit in real time

REMOTE MONITORING AND MANAGEMENT OF THE OPERATING PARAMETERS

OF THE UNIT IN REAL TIME

VISUALIZATION - presentation in the form of charts for all operating parameters of all ventilation units operating

within a common network.

DIAGNOSTICS - this function facilitates remote diagnostics and remote support by the service personnel.

CONVENIENCE - possibility of starting the unit via a web browser on any device, remote access and remote change

of parameters via a local area network or the Internet.

OPTIMIZATION - the operating parameters for each functional unit can be optimized.

ECONOMY - measurement and recording of current operating costs. Possibility of dening currencies and utility

prices.

RECORDING - recording of all AHU operating parameters and alarms and warnings, including a legible description.

VTS provides a standard automation functionality in the form of a factory-implemented VMS (Ventus Management

System) application for remote monitoring, with visualization and management of the operating parameters of

the units in real time via a web browser on any device.

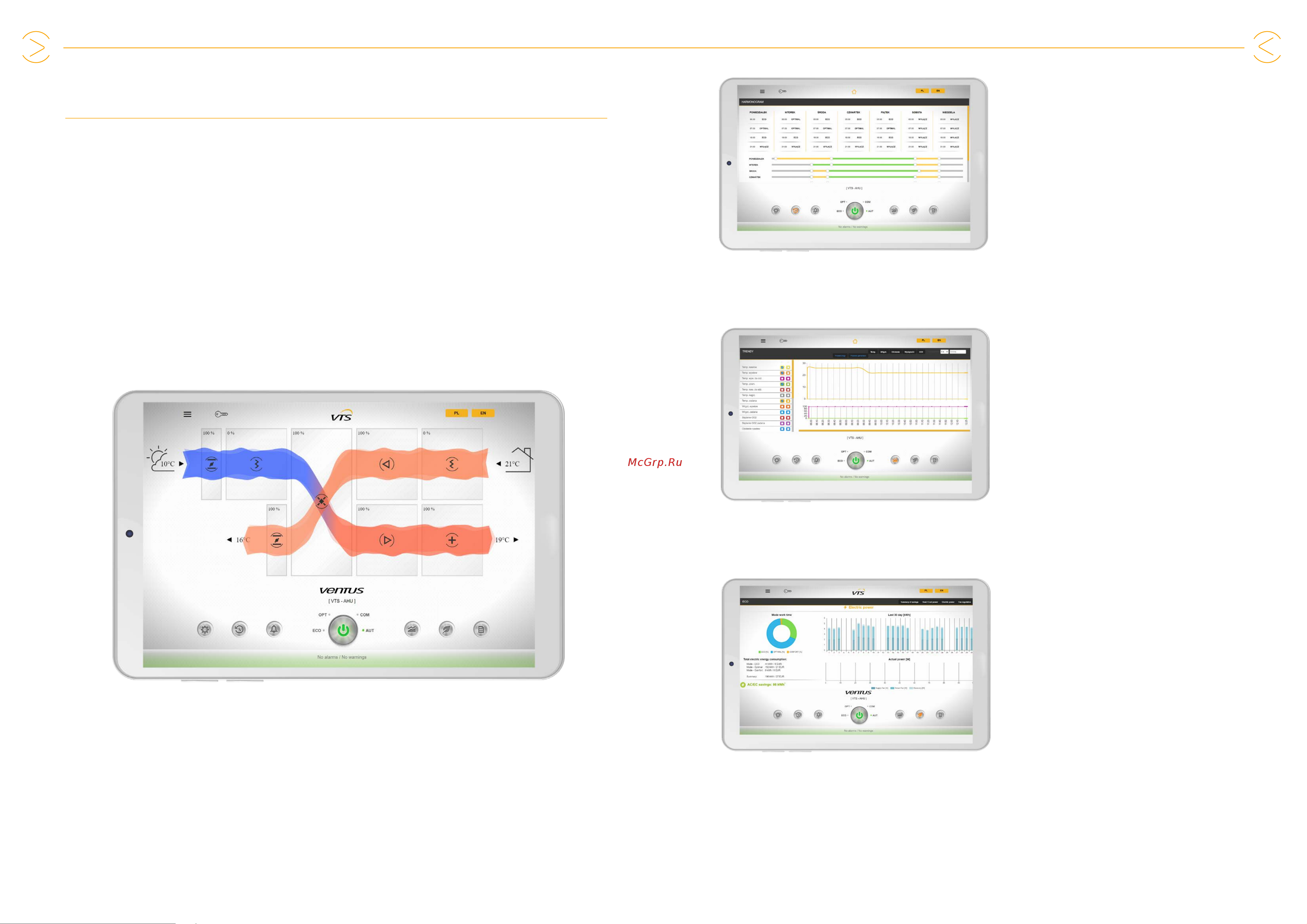

MAIN SCREEN

The main screen includes a graphic diagram of the air handling unit, with clearly marked air conditioning functions

and current settings and parameters.

The window also includes a set of buttons offering a wide spectrum of AHU management functions. The complete

window can be treated as a main navigation panel of the AHU management window. From this panels, the user

can monitor the status of the AHU, switch operating modes or navigate to any of the additional functions.

The AHU diagram combines a series of functions, such as displaying the status of each function in your unit -

informing the user about possible alarms directly on the applicable AHU block. The user can also monitor the

parameters of air owing into the unit and conditioned by the unit.

SCHEDULE

An air handling unit operating according to a

predened schedule is a know solution for control

applications.

However, what is new is the ease, with which the

user can manage schedule settings directly on the

diagram - using both standard computer screen

and a mouse and a touch screen on a tablet.

The schedule is designed as a series of scroll bars

for individual operating modes.

All display items are displayed on a time diagram.

Using the scroll bars, the user can change the

schedule of their AHU, improve the economics of

the ventilation system, all within seconds.

CHARTS

Charts are a tool used for recording all operating

parameters of the AHU, saving them and displaying

historical AHU operating data in the form of a time

chart. This tool was created to help the user to

develop the best AHU operation schedule, ideally

suited to the specic nature of a given ventilation

system, as well as to improve the economics

of operation of the system and fulll the user’s

preferences.

ECO

FThe ECO function is used for calculating the

savings generated through heat recovery, the

application of high-performance EC fans and

management of the complete device applying state

of the art algorithms developed by VTS.

All the user needs to do is spend a few minutes to

inform the application about the cost of each energy

carrier used - expressed in any currency. In return,

the application will report all savings expressed in

kW and money.

Depending on the preference, the user can monitor

the common savings generated through heat

recovery, the application of high-performance

EC fans and advanced VTS control algorithms,

or display a report on a separate, very detailed

diagram.

Components Components

8786
