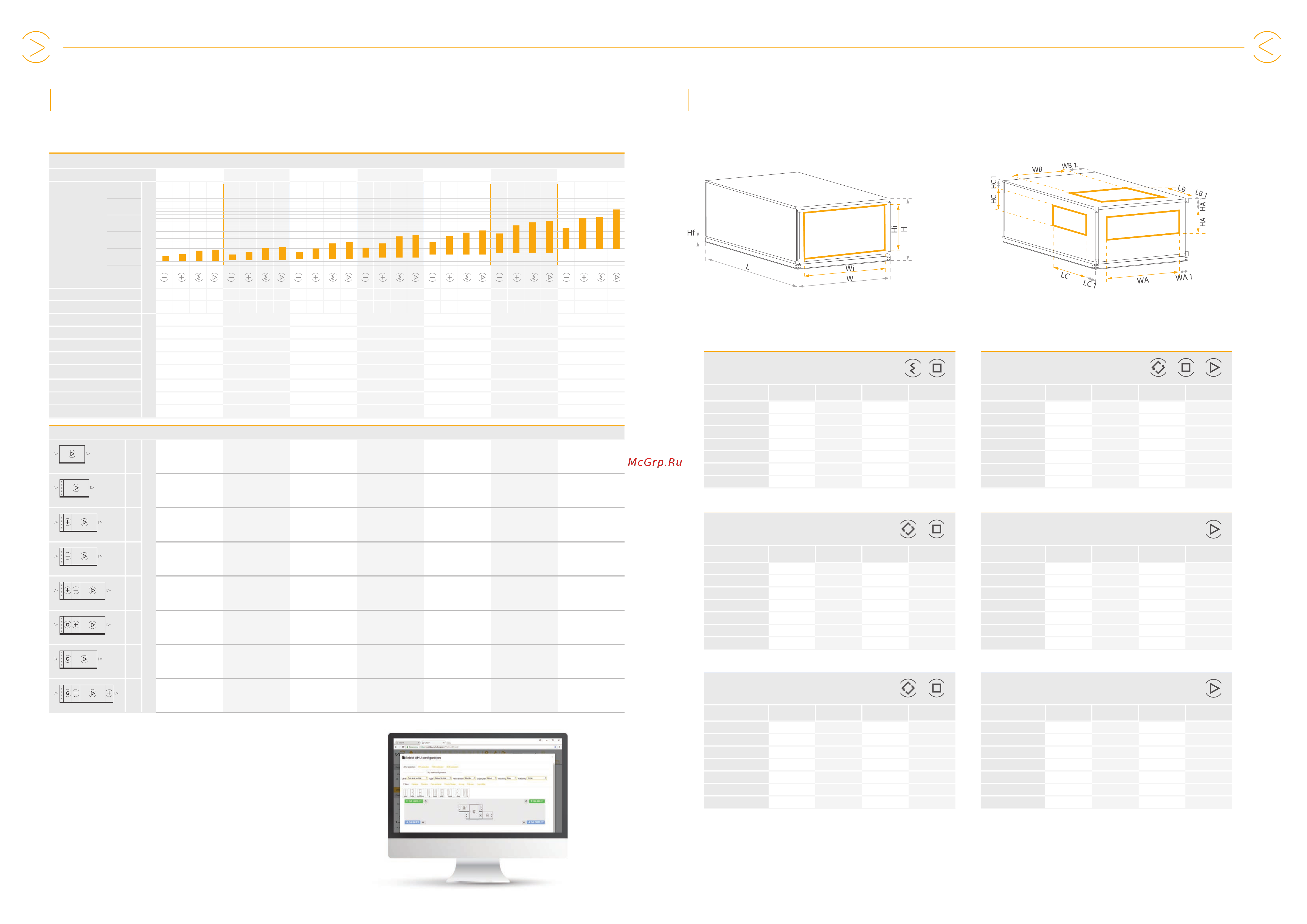

VTS Ventus VVS650 [19/55] Dimensions vvs 150 650 supply exhaust
![VTS Ventus VVS040 [19/55] Dimensions vvs 150 650 supply exhaust](/views2/1894673/page19/bg13.png)
Entire range of conguration
in ClimaCAD OnLine 4 selection tool.
www.ccol4.com
VVS 150-650 - SUPPLY & EXHAUST
Full-face horizontal outlet
END (FF)
Size
WA HA WA1 HA1
VVS021 821 313 70 67,5
VVS030 821 440 70 70
VVS040 1 028 440 70 70
VVS055 1 199 575 70 70
VVS075 1 340 695 70 70
VVS100 1 520 795 70 70
VVS120 1 751 832 70 70
Side inlet-outlet
END (BS)
Size
HC LC HC1 LC1
VVS021 213 380 115 165
VVS030 313 380 131 165
VVS040 313 380 131 165
VVS055 413 380 149 165
VVS075 413 380 209 165
VVS100 613 380 159 165
VVS120 613 380 177 165
Side outlet
END (BS)
Size HC LC HC1 LC1
VVS021 213 380 114 202
VVS030 313 380 180 202
VVS040 313 380 165 202
VVS055 413 380 137 202
VVS075 413 380 197 202
VVS100 613 380 158 127
VVS120 613 380 198 127
Recommended airow range
Unit size VVS150 VVS180 VVS230 VVS300 VVS400 VVS500 VVS650
[m
3
/h]
Min airow
7167 7167 7167 7167 8640 8640 8640 8640 10398 10398 10398 10398 13491 13491 13491 13491 18704 18704 18704 18704 21817 21817 21817 21817 28725 28725 28725 28725
Max airow
15450 19500 25500 27000 18540 23400 30600 32400 23690 29900 39100 41400 30900 39000 51000 54000 41200 52000 58000 62000 56650 71500 77000 79000 66950 84500 87000
100 000
H
fd
[mm]
90 120 120 120 120 120 120
H
fu
0 80 80 80 80 80 80
H 1 163 1 397 1 397 1 696 1 929 1 929 2 406
W 2 085 2 085 2 493 2 585 3 085 3 585 3 697
H
i
993 1 197 1 197 1 496 1 729 1 729 2 206
W
i
2 005 2 005 2 413 2 505 3 005 3 505 3 617
H
2
2 236 2 754 2 754 3 352 3 818 3 818 4 772
I 40 40 40 40 40 40 40
Nominal parameters
120 000
90 000
60 000
30 000
0
Length of selected congurations
V
Lt
[mm]
1 464 1 464 1 464 1 830 1 830 1 830 1 830
FV
Lt
1 830 1 830 1 830 2 196 2 196 2 196 2 196
FHV
Lt
2 196 2 196 2 196 2 562 2 562 2 562 2 562
FCV
Lt
2 196 2 196 2 196 2 562 2 562 2 562 2 562
FHCV
Lt
2 562 2 562 2 562 2 928 2 928 2 928 2 928
FGHV
Lt
2 562 2 562 2 562 2 928 2 928 2 928 2 928
FGV
Lt
2 196 2 196 2 196 2 562 2 562 2 562 2 562
FGCVH
Lt
2 928 2 928 2 928 3 294 3 294 3 294 3 294
Selected congurations
DIMENSIONS - VVS 150-650 - SUPPLY & EXHAUST
Dimension
Vertical outlet
END (US)
Size WB LB WB1 LB1
VVS150 1520 795 280 127
VVS180 1520 713 293 127
VVS230 1945 813 284 127
VVS300 1945 813 330 127
VVS400 2650 813 228 127
VVS500 3150 813 228 212
VVS650 3250 813 234 212
Vertical inlet-outlet
END (US)
Size
WB LB WB1 LB1
VVS150 1520 795 280 200
VVS180 1520 713 280 239
VVS230 1945 813 272 151
VVS300 1945 813 318 151
VVS400 2650 813 215 151
VVS500 3150 813 215 151
VVS650 3250 813 220 151
Small horizontal inlet-outlet
END (FS)
Size WA HA WA1 HA1
VVS150 1520 795 280 137
VVS180 1520 713 280 239
VVS230 1945 813 272 200
VVS300 1945 813 318 319
VVS400 2650 813 215 436
VVS500 3150 813 215 436
VVS650 3250 813 220 674
Technical Specification Technical Specification
