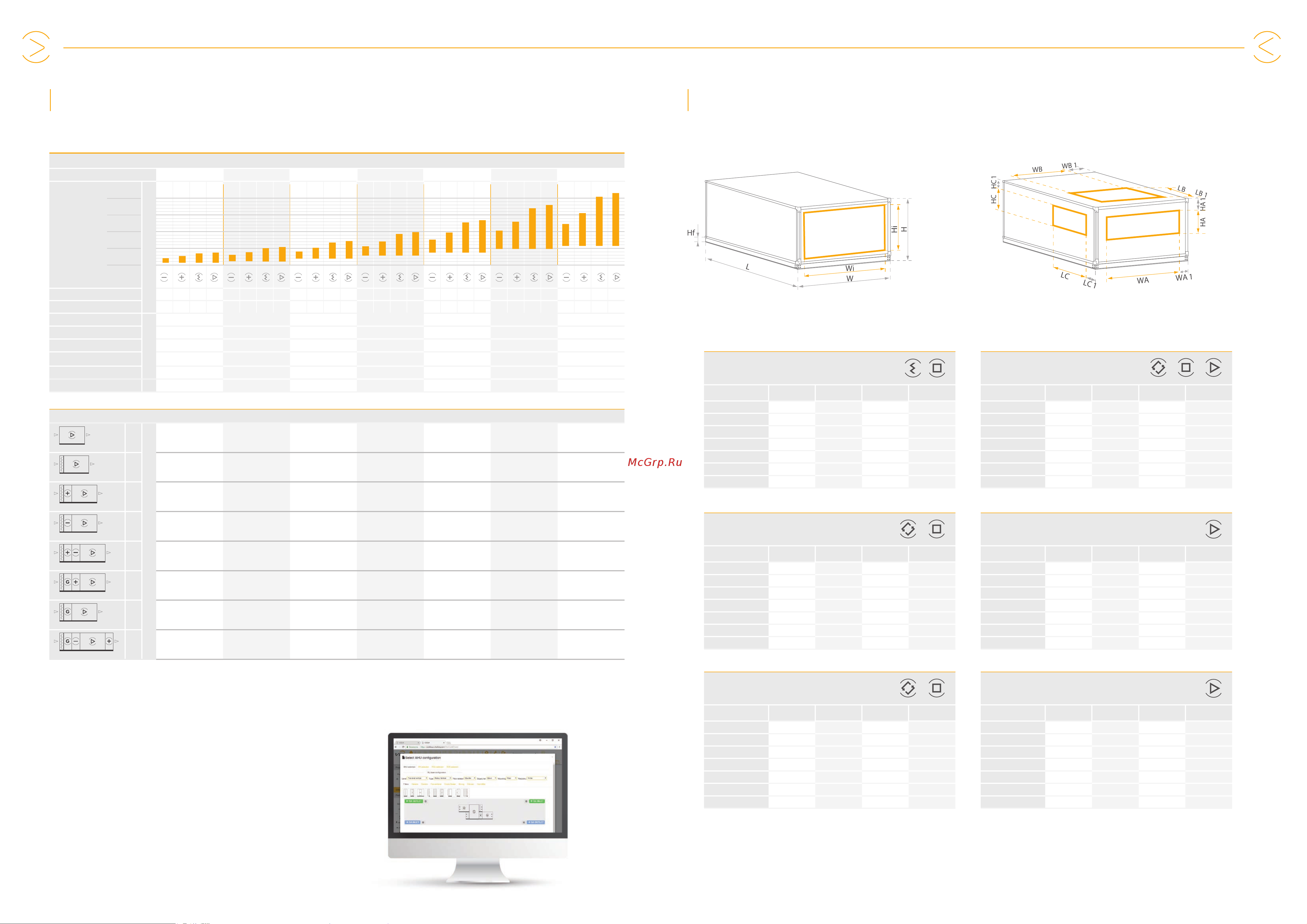

VTS Ventus VVS650 [18/55] Dimensions vvs 0 21 120 supply exhaust
![VTS Ventus VVS075 [18/55] Dimensions vvs 0 21 120 supply exhaust](/views2/1894673/page18/bg12.png)
Entire range of conguration
in ClimaCAD OnLine 4 selection tool.
www.ccol4.com
VVS 021-120 - SUPPLY & EXHAUST
Full-face horizontal outlet
END (FF)
Size
WA HA WA1 HA1
VVS021 821 313 70 67,5
VVS030 821 440 70 70
VVS040 1 028 440 70 70
VVS055 1 199 575 70 70
VVS075 1 340 695 70 70
VVS100 1 520 795 70 70
VVS120 1 751 832 70 70
Small horizontal inlet-outlet
END (FS)
Size WA HA WA1 HA1
VVS021 500 220 228 112
VVS030 500 220 228 178
VVS040 660 250 252 163
VVS055 821 440 257 135
VVS075 1 028 440 224 195
VVS100 1 199 575 228 200
VVS120 1 199 575 344 196
Vertical inlet-outlet
END (US)
Size
WB LB WB1 LB1
VVS021 500 220 228 112
VVS030 500 220 228 178
VVS040 660 250 252 163
VVS055 821 440 257 135
VVS075 1 028 440 224 195
VVS100 1 199 575 228 200
VVS120 1 199 575 344 196
Vertical outlet
END (US)
Size WB LB WB1 LB1
VVS021 660 250 152 212
VVS030 613 380 173 127
VVS040 821 440 175 127
VVS055 1 028 440 157 212
VVS075 1 199 575 142 212
VVS100 1 340 695 162 212
VVS120 1 520 795 187 127
Side inlet-outlet
END (BS)
Size
HC LC HC1 LC1
VVS021 213 380 115 165
VVS030 313 380 131 165
VVS040 313 380 131 165
VVS055 413 380 149 165
VVS075 413 380 209 165
VVS100 613 380 159 165
VVS120 613 380 177 165
Side outlet
END (BS)
Size HC LC HC1 LC1
VVS021 213 380 114 202
VVS030 313 380 180 202
VVS040 313 380 165 202
VVS055 413 380 137 202
VVS075 413 380 197 202
VVS100 613 380 158 127
VVS120 613 380 198 127
DIMENSIONS - VVS 0 21-120 - SUPPLY & EXHAUST
Recommended airow range
Unit size VVS021 VVS030 VVS040 VVS055 VVS075 VVS100 VVS120
[m
3
/h]
Min airow
806 806 806 806 1180 1180 1167 1167 1958 1958 1958 1958 2878 2878 2878 2878 3805 3805 3805 3805 4863 4863 4863 4863 5815 5815 5815 5815
Max airow
2163 2730 3570 3780 3090 3900 5100 5400 4120 5200 6800 7200 5665 7150 9350 9900 7725 9750 12750 13500 10300 13000 17000 18000 12360 15600 20400 21600
H
fd
[mm]
90 90 90 90 90 90 90
H 538 670 670 805 925 1 025 1 062
W 961 961 1 168 1 339 1 480 1 660 1 891
H
i
368 500 500 635 755 855 892
W
i
881 881 1 088 1 259 1 400 1 580 1 811
I 40 40 40 40 40 40 40
Nominal parameters
Length of selected congurations
V
Lt
[mm]
732 732 732 1 098 1 098 1 464 1 464
FV
Lt
1 098 1 098 1 098 1 464 1 464 1 830 1 830
FHV
Lt
1 464 1 464 1 464 1 830 1 830 2 196 2 196
FCV
Lt
1 464 1 464 1 464 1 830 1 830 2 196 2 196
FHCV
Lt
1 830 1 830 1 830 2 196 2 196 2 562 2 562
FGHV
Lt
1 830 1 830 1 830 2 196 2 196 2 562 2 562
FGV
Lt
1 464 1 464 1 464 1 830 1 830 2 196 2 196
FGCVH
Lt
2 196 2 196 2 196 2 562 2 562 2 928 2 928
20 000
15 000
10 000
5 000
0
DimensionSelected congurations
Technical Specification Technical Specification
