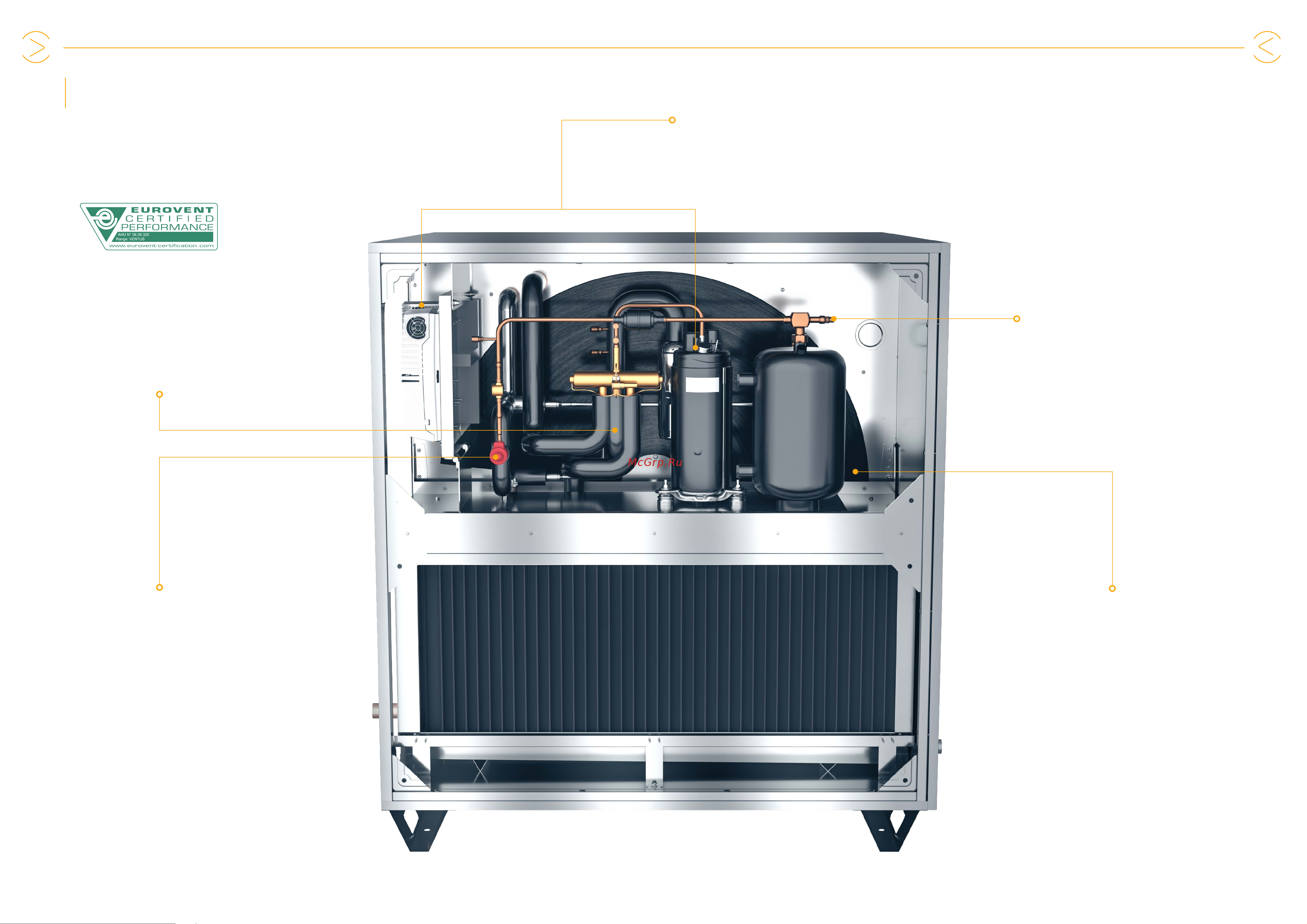

HEATING AND COOLING FUNCTION
» Four-way valve automatically switches reverse
operation modes
» Automatic defrosting function in winter
OPTIMISATION OF COOLING
PARAMETERS
» Electronic expansion valve dynamically adjusts
uid ow to current air handling unit parameters
SMOOTH REGULATION OF HEATING AND COOLING POWER
» Inverter compressor with DC motor smoothly adjusts cooling and heating power
» Controller equipped with sensors fully controls cooling parameters of the heat pump system
MULTI-STAGE HEAT PUMP
QUALITY CONTROL
» Ongoing monitoring
of the production process
» Individual leakage and operational
check conrmed by electronic report
» UDT (Ofce of Technical Inspection) certicate
SMOOTH REGULATION
OF HEAT RECOVERY POWER
» Electronically controlled stepper motor of the
rotary heat exchanger smoothly regulates heat
recovery capacity
» In winter time the automation system ensures
three-stage frost protection
for the rotary heat exchanger
VVS005 – VVS650
VENTUS COMPACT
FLOOR MOUNTED UNITS
WITH HEAT PUMP
VENTUS Compact VENTUS Compact
6968
