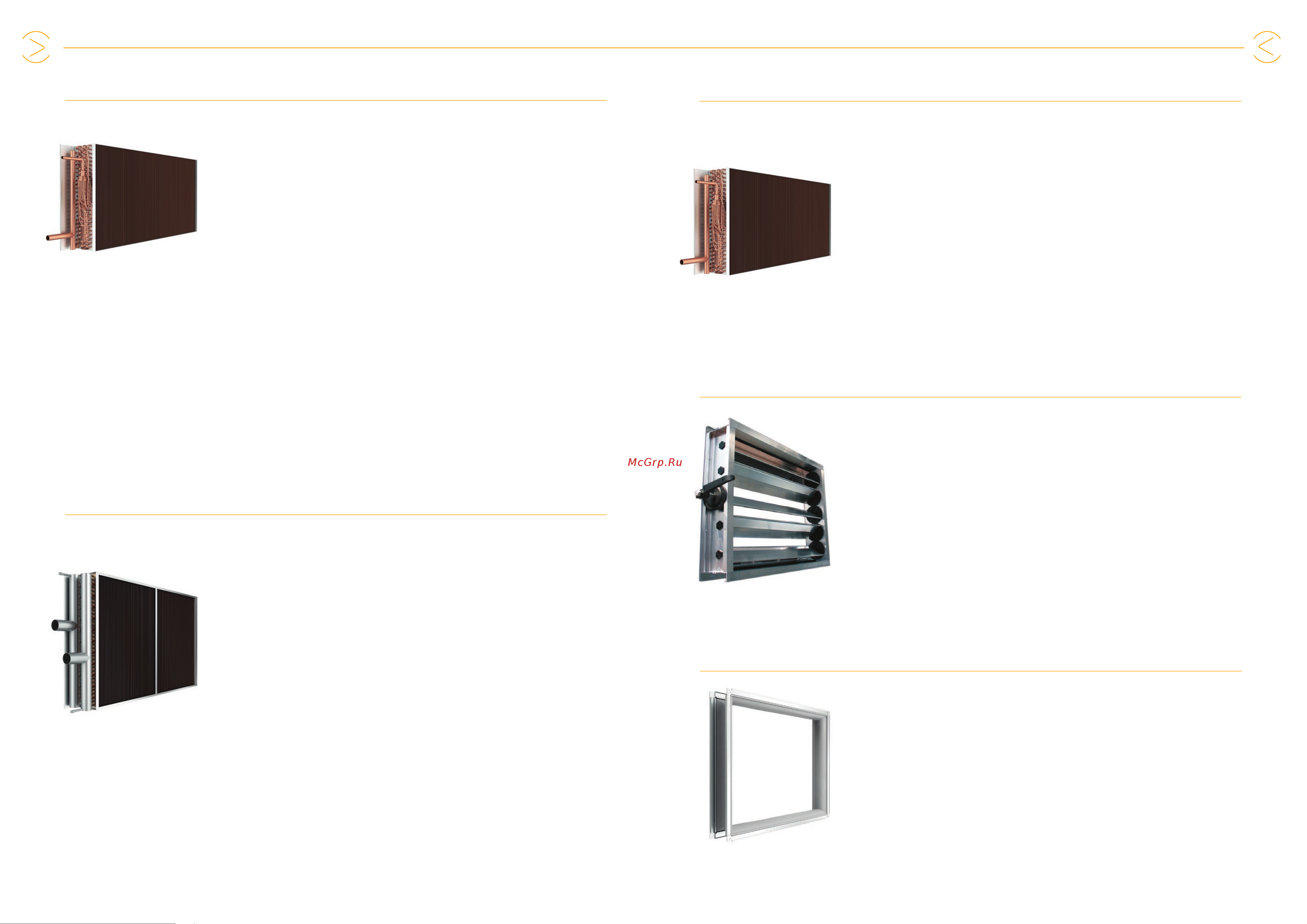

Design and application
» Block of copper pipes integrated with
another block of aluminum ns, creating
expanded heat exchange surface. Pipes
are bonded to the collectors, equipped
with headers (for connecting entire coil
to the cooling system circuit).
» Heating of the air supplied to the
handled spaces.
» Re-heating of the air as a part of air
dehumidifying process.
Specication
» Max medium temperature: 60°C.
» Max medium working pressure:
3,84MPa = 38,4bar (test: 50bar).
» Heating capacity: parameter resulting
from individual performance
calculaation of selected unit (CCOL).
» Max. refrigerant working pressure:
3.84 MPa = 38.4 bar (test: 50 bar).
» Thermal power: parameter available
from technical data of the unit (CCOL).
» Pressure loss / medium ow:
parameters available from technical
data (CCOL).
» Heat exchanger suitable for operation
as a cooler (evaporator) and as a heater
(condenser) in a heat pump circuit.
Cooling function
» Cooling of the ventilation air supplied
to the room.
» Dehumidication of the ventilation air
in summer.
» The exchanger is mostly used for
smaller cooling capacities compared
to water coolers and in "single" air-
conditioning systems.
Heating function
» Heating or cooling of ventilation air
supplied to the room.
» Heating of the ventilation air after
a drying process.
» Cooling of the ventilation air supplied
to the room.
» Dehumidication of the ventilation air
in summer.
» The exchanger is mostly used for
smaller cooling capacities compared
to water coolers and in "single"
air-conditioning systems.
DIRECT EXPANSION COIL AS CONDENSER IN HEAT PUMP CIRCUIT
Design and application
» A pack of copper tubes integrated
with a pack of ns forming the heat
exchange surface extension.
The heat exchanger tubes are
connected respectively to collectors,
to which the connection pipes of the
medium system are routed.
» The exchanger connecting pipes
are equipped with a drain and a vent
respectively.
Features
» Maximum glycol content 50%.
» Minimum temperature for chilled water
+2°C.
» Maximum heating medium
temperature: 150°C.
» Max. refrigerant working pressure:
1.6 MPa = 16 bar (test: 21 bar).
» Thermal power: parameter available
from technical data of the unit (CCOL).
» Pressure losses on the medium side:
available in technical data generated
in the CCOL selection programme.
» Connecting the exchanger supply in a
parallel ow circuit reduces the heater
power by up to several %.
Cooling function
» Cooling of the ventilation air supplied
to the room.
» Dehumidication of the ventilation air
in summer.
» The exchanger is used in complex
air-conditioning systems - several or
more devices supplied from a single
source of cold (water chiller) or in case
of using a single device with relatively
high cooling power.
Heating function
» Heating of the supply air to the room.
» Heating of the ventilation air after
a drying process.
» The exchanger is used in case
of access to a heating water system
(local boiler room or municipal
network).
WATER COOLER
Design and application
» Block of copper pipes integrated
with another block of aluminum ns,
creating expanded heat exchange
surface. Pipes are bonded to the
collectors, equipped with headers
(for connecting entire coil to the
cooling system circuit).
» DX cooler is also available as heater
execusion (so calleed Condenser).
» Cooling and dehumidifying of
the air as a part of air complex
dehumidifying process in summer
season.
» Coil usually applied for smallerd
cooling capacity systems vs
water coolers or for individual air
conditioning systems.
Specication
» Min. Refrigerant evaporation
temperature: +3°C.
» Max refrigerant working pressure:
2,2MPa=22bar (test: 29 bar).
» Cooling capacity - parameter
resulting from individual performance
calculation of selected unit (CCOL).
DX COOLING COIL
Design and application
» Blades made of aluminium with rubber
gasket on the edges.
» Aluminum frame.
» Blades drive realized by means of gears
made of composite material, installed
on frame internal side.
» Damper is equipped with square pivot,
tted for actuator (dampers of cross
section greater than 4 m
2
have 2 linked
pivots).
Specication
» Air leakage at closted damper:
50m
3
/h*m
2
- at 100 Pascals of
pressure difference.
» Workint temperature range:
-40 ÷ +70°C.
AIR DAMPER
Design and application
» Flexible connection made of 1
mm thick and 30 mm wide hot-dip
galvanized steel proles and polyester
fabric coated with PVC.
» Flame resistance: UL94 - HB [ISO 1210].
» Flexible connection resistant to UV
radiation
» Working temperature range:
-30°C do +70°C.
» Max connection length
(fully spread position): 110 mm.
» Flexible connection installed on each
AHU/Duct joint eliminates transfer
of possible AHU vibrations to the
ventilation ductwork.
Specication
» Max air face velocity: 5m/s.
» Working conditions: -40 ÷ +70°C.
FLEXIBLE CONNECTION
