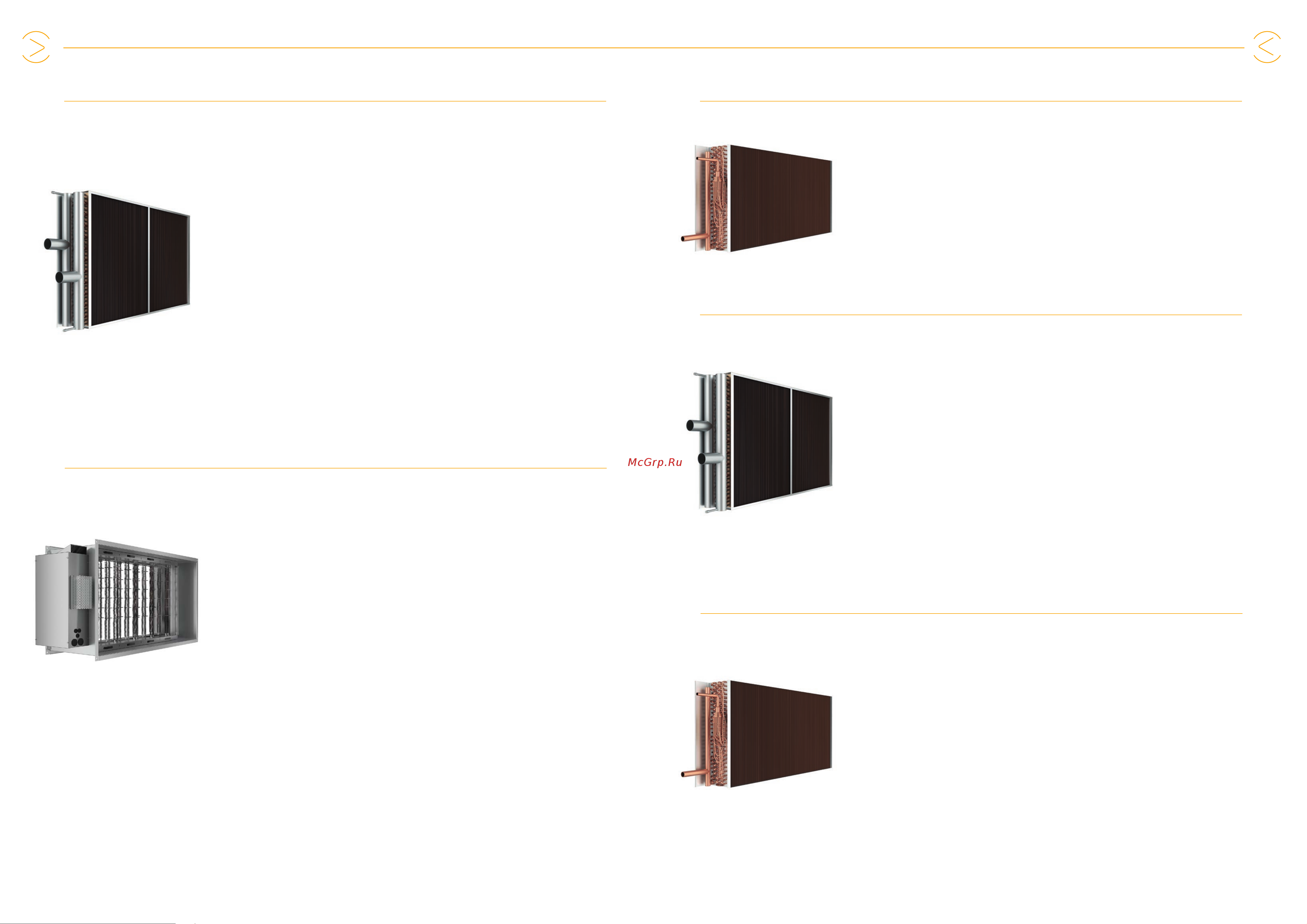

VTS Ventus VVS650 [23/55] Dx cooling coil
![VTS Ventus VVS400 [23/55] Dx cooling coil](/views2/1894673/page23/bg17.png)
Design and application
» Block of copper pipes integrated
with another block of aluminum ns,
creating expanded heat exchange
surface. Pipes are bonded to the
collectors, equipped with headers
(for connecting entire coil to the
medium supply system).
» Heating of the air supplied to the
handled spaces.
» Re-heating of the air as a part of air
dehumidifying process.
» The coil can be applied if heating
medium is available (local boiler or
district heating system).
» Coil headers are equipped with
medium damping valve and air vent.
» Connecting the coil in parallel
medium ow vs air, will result in its
capacity reduction by over a dozen
percent.
Specication
» Max glycol concentration: 50%.
» Max medium temperature: 150°C.
» Max medium working pressure:
1,6MPa = 16bar (test: 21bar).
» Heating capacity: parameter resulting
from individual performance
calculaation of selected unit (CCOL).
» Medium side pressure drop –
parameter resulting from individual
performance calculation of selected
unit (CCOL).
WATER HEATER
Design and application
» Block of copper pipes integrated with
another block of aluminum ns, creating
expanded heat exchange surface. Pipes
are bonded to the collectors, equipped
with headers (for connecting entire coil
to the cooling system circuit).
» Heating of the air supplied to the
handled spaces.
» Re-heating of the air as a part of air
dehumidifying process.
Specication
» Max medium temperature: 60°C.
» Max medium working pressure:
3,84MPa = 38,4bar (test: 50bar).
» Heating capacity: parameter resulting
from individual performance
calculaation of selected unit (CCOL).
DIRECT EXPANSION COIL AS CONDENSER IN HEAT PUMP CIRCUIT
Design and application
» Set of resistive heating elements
made of CR-Ni-Fe alloy, 6 kW/400V
each.
» Coils mounted on hot-dip galvanized
steel frame.
» Heater is equipped with power
terminals and thermostat protecting
against overheating.
» In case of AHU with complete
controls, heater is equipped with
integrated capacity control module.
» Heating capacity can be modied by
means of smooth regulation module
(HE module, set of Solid State Relays
as optional parts of AHU controls) or
by means of automatic engaging of
next heating sections.
Specication
» Max permissible ambient
temperature around heating
elements: 65°C.
ELECTRIC HEATER
Design and application
» Block of copper pipes integrated
with another block of aluminum ns,
creating expanded heat exchange
surface. Pipes are bonded to the
collectors, equipped with headers
(for connecting entire coil to the
medium supply system).
» Cooling of the air supplied to handled
spaces.
» Cooling and dehumidifying of
the air as a part of air complex
dehumidifying process in summer
season.
» Coil can be applied in complex air
conditioning systems consisting of
few or over a dozen of units supplied
from common chilling source (chiller)
or in case of single unit of relatively
high cooling capacity.
Specication
» Max glyccol concentration: 50%.
» Min supplying medium temperature:
+2°C.
» max medium working pressure:
1,6MPa = 16bar (test: 21bar).
» Cooling capacity: parameter resulting
from individual parameters of
selected unit (CCOL).
» Medium pressure drop / ow rate:
parameter resulting from individual
performance calculation of selected
unit (CCOL).
» For reversed operationg mode
(heating) max medium working
temperature: 140°C.
WATER COOLER
Design and application
» Block of copper pipes integrated
with another block of aluminum ns,
creating expanded heat exchange
surface. Pipes are bonded to the
collectors, equipped with headers
(for connecting entire coil to the
cooling system circuit).
» DX cooler is also available as heater
execusion (so calleed Condenser).
» Cooling and dehumidifying of
the air as a part of air complex
dehumidifying process in summer
season.
» Coil usually applied for smallerd
cooling capacity systems vs
water coolers or for individual air
conditioning systems.
Specication
» Min. Refrigerant evaporation
temperature: +3°C.
» Max refrigerant working pressure:
2,2MPa=22bar (test: 29 bar).
» Cooling capacity - parameter
resulting from individual performance
calculation of selected unit (CCOL).
DX COOLING COIL
