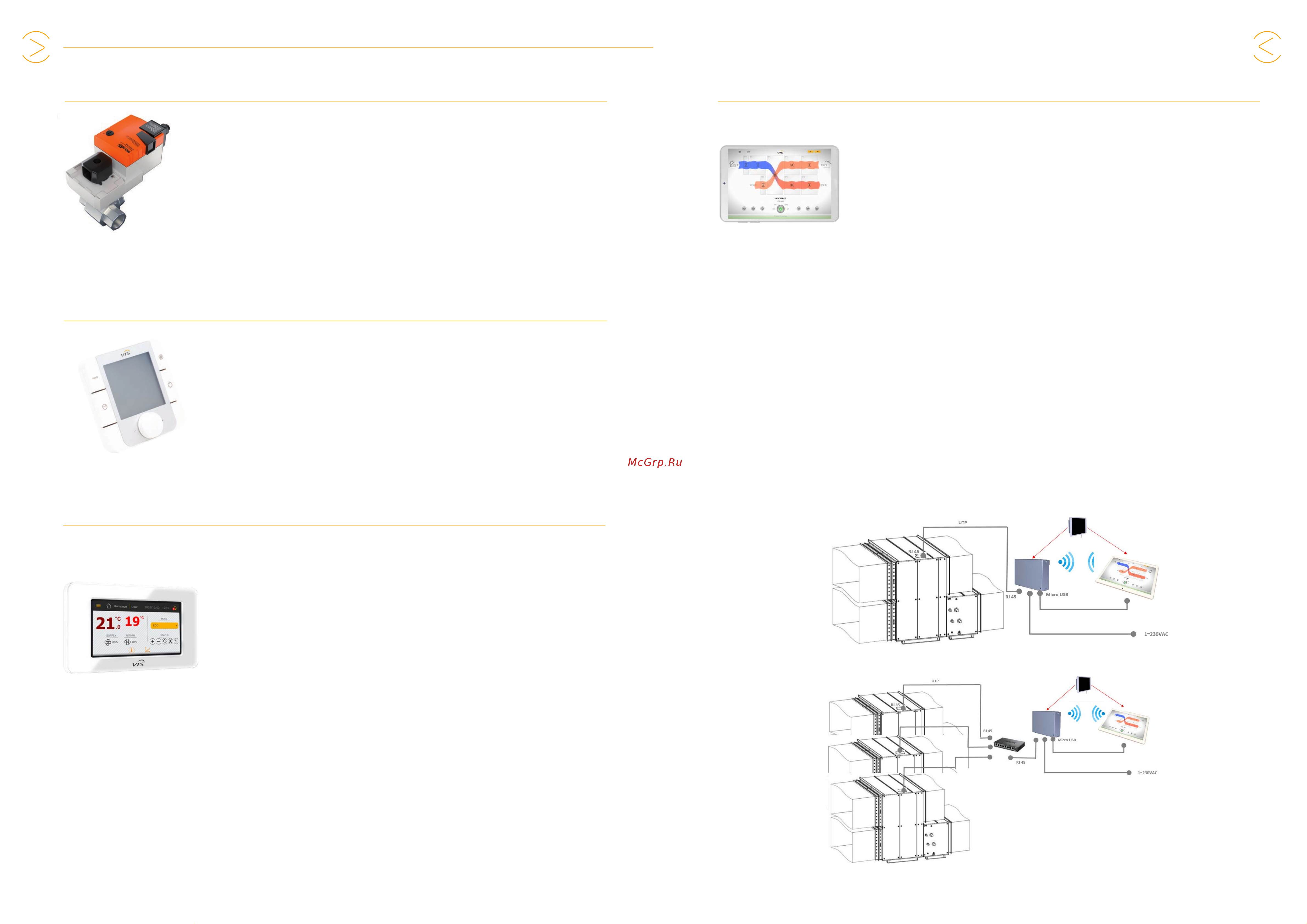

THREE-WAY VALVE FOR WATER HEATER OR COOLER

Functions and application

» Smooth regulation of water heater

or cooler capacity.

Operational parameters

» Regulation mode: 0 do 100% (smooth).

» Control signal: 0-10V.

» Full open/close time: 90 s.

» Valve supply voltage: 24V AC/DC.

» Working temperature: +5°C do 50°C.

» Medium temperature range:

-10°C do 120°C.

» Max glycol concentration: 50%.

» Protection degree: IP 54.

Functions and application

» Maintenance of Air handling Unit

– parameters setting and reading

(temperature, airow, CO2, humidity

etc), change of operational modes.

» Weekly schedule programming.

» Service maintenance –

conguration of all advanced AHU

operating parameters, conguration

controllers universal inputs and

outputs.

» Remote conguring of variable

frequency drives.

» AHU alarms and errors monitoring

(full text description)

and cancelling.

Operational parameters

» Power supply directly from

the controller.

» Communication with controller

– RS485 serial port.

» Max length of communication

cable: max. 1200 m,

» Working temperature: -20°C to 60°C.

» Humidity: <85% (no condensation).

» Protection degree: IP 20.

HMI ADVANCED USER INTERFACE

Functions and application

» Maintenance of Air handling

unit – temperatures setting and

reading, change of operating

modes, independent time schedule

management, alarm codes

displaying.

» Conguration of controller’s

universal inputs and outputs.

Operational parameters

» Power supply directly from the

controller.

» Communication with controller –

RS485 serial port.

» Max length of communication

cable: max. 500 m.

» Working temperature: -20°C to 60°C.

» Humidity: <85% (no condensation).

» Protection degree: IP 31.

HMI BASIC USER INTERFACE

Controls Controls

9594

HMI ADVANCED OPERATOR PANEL

Function and application

» HMI Advanced is a dedicated

tablet with the Android system

and the Chrome browser, which

provides comfort in managing and

conguring the parameters of the

device.

» The user receives a device for

conguring and parametrizing

the VENTUS air handling unit, a

compilation of documents, a set

of information about the product,

and access to the monitoring

and visualization of operating

parameters of devices in the same

network. The 10-inch high resolution

display provides comfort of reading

all data.

» The HMI Advanced tablet comes

with a communication box.

» The tablet is mounted to the box

using a set of magnets for easy

attaching and detaching.

» The communication box includes

a WiFi router for wireless

communication with the tablet, and

a power supply unit for connecting

the tablet. This solution allows the

remote use of the tablet within WiFi

range.

Operational parameters

» Micro USB connector

» Power supply input: 100-240V

50-60 Hz

» Tablet input: 5.0V - 2.0A

» Operation temperature: 0°C to 40°C.

» Humidity: <85% (non-condensing).

» OS: Android 9

» Screen: 10.1"

» Wi: 802.11a/c/b/g/n

» 2G: GPRS class 12/EDGEE

» 3G: HSPA+, EVDO, GPRS EDGE;

» 4G: TDD LTE FDD LTE, VoLTE

» Bluetooth: 4.2, VoLTE

» Battery: 8000 mAh

» GSM: B2/3/5/8

» CDMA1X: BC0

» WCDMA: B1/2/5/8

Single AHU

connected to tablet

Multiple AHUs

connected

to single tablet

Wi-Fi communication

Wi-Fi communication
