Chapter 2. Hardware Setup

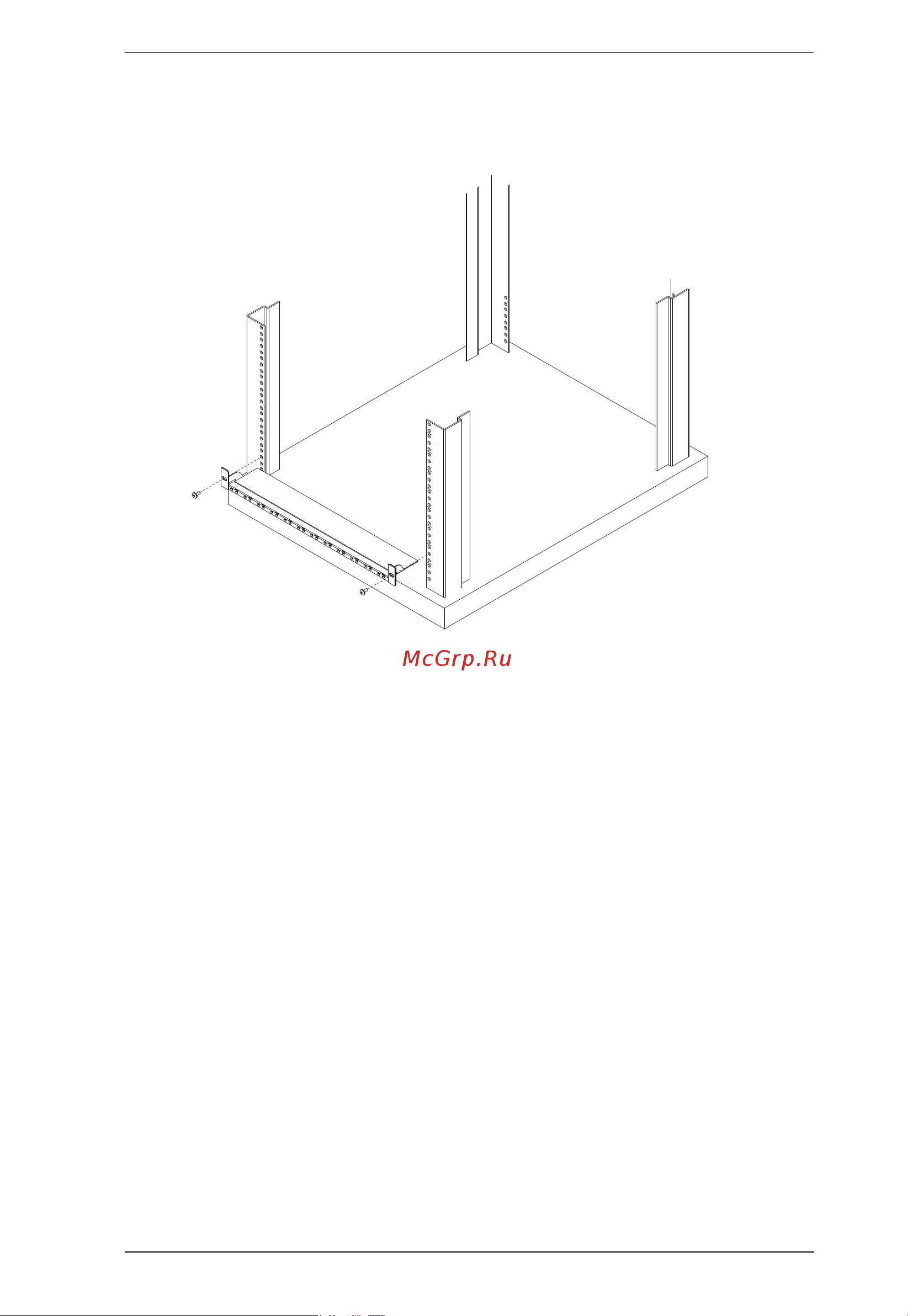

3. Position and align the holes on the VE-RMK1U frame with that of the

rack, and secure the frame onto the rack with 2 self-supplied screws, as

illustrated below.
