5•12
How To...
Relay G70/G75 Advanced Guide
Footswitch / Select Button Control
You can use the Receiver’s “Stomp” feature (tap the footswitch on the G70 or press the
Select/Mute button on the G75) to cycle between all the saved Scenes on your Receiver.
Optionally, you can connect a momentary (closed or open) footswitch to the Remote jack on
the back of the Relay G75 Receiver for footswitch control (see page 4•2 for more info on
the Remote input).
1
8h
45mA
ELECTRIC
5
8h
45mB
C
ACOUSTIC
A
AUX IN
Tap the footswitch
(G70)
or
Select/Mute button
(G75)

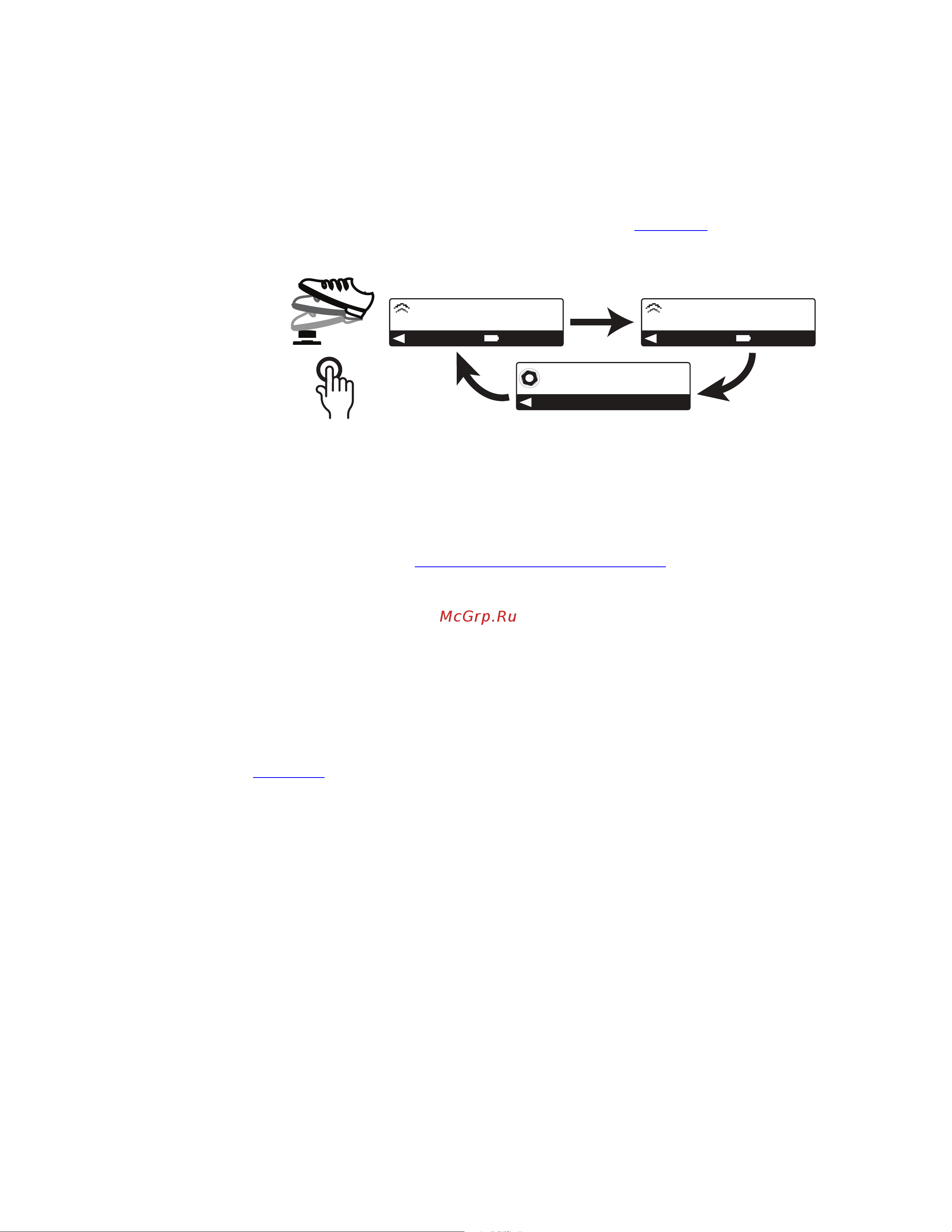

Navigating through Scenes using the G70 footswitch or G75 Select/Mute button
Note: You can alternatively turn the Encoder knob to cycle through Scenes - the selected Scene will blink
in the display indicating that it is not loaded until you then press the Encoder button, allowing you to search
for a Scene before actually engaging it.
Additional Scenes can be added or modied for alternate routings or additional Transmitters
in the Receiver’s Edit Mode - see “Adding a Scene” on page 5•6. Once you’ve created
additional Scenes on your Receiver, the Stomp feature cycles through Scenes in the order
created.
Tip! While in Edit Mode, the footswitch or Select/Mute button still allows you to cycle sequentially through
your created Scenes. This makes it easier to edit parameters in several Scenes without switching out and
back to Edit Mode again for each edit.
Color LED Ring Indicator
As covered on page 5•5, the Color Ring LED surrounding the G70 footswitch or G75 Scene/
Mute button can be customized to your desired color to identify multiple Transmitters. This
LED also has several additional illumination states that provide even more visual feedback
about the incoming wireless signal:
• Maintains a steady brightness when the RF signal is good
• Flickers whenever the RF reception is poor
• Blinks steadily when Muted
• Blinks yellow when the Transmitter battery time is less than 1 hour
• Blinks red when the Transmitter battery time is less than 30 minutes
