6•1
Tip for Best Operation & Hook Up Examples
Relay G70/G75 Advanced Guide
Tips for besT operaTion & Hook up examples
In this chapter, we’ve provided several tips and hook up examples for your Line 6 Relay
®
Receiver & Transmitter devices for optimal wireless operation. The predominant rule for the
best placement of your Relay G70 or G75 Receiver is “Line of Sight” - that is, the range
and reception is optimal when there is an unobstructed line of sight between your Receiver
and Transmitter. In particular, metal housings (e.g. - fully enclosed metal racks) and close
proximity of metal objects (e.g. - tall pedals) to your Relay Receiver can block the wireless
signal. Other wireless devices such as WiFi and In Ear Monitor systems can also disrupt your
Relay system if positioned too near your Receiver.
About the Quad-Internal Antenna Array
The Relay G70 and G75 Receivers are the rst to feature a Quad-Internal Antenna Array
system. Simply put, this is a super-precise set of 4 internal antennas, plus two complete
Receivers, all expertly aimed and tuned by our RF engineering team. The entire layout of
both Receivers, including size, materials used and even the location of the display and Input/
Output jacks, were expertly set to provide the best possible wireless reception.

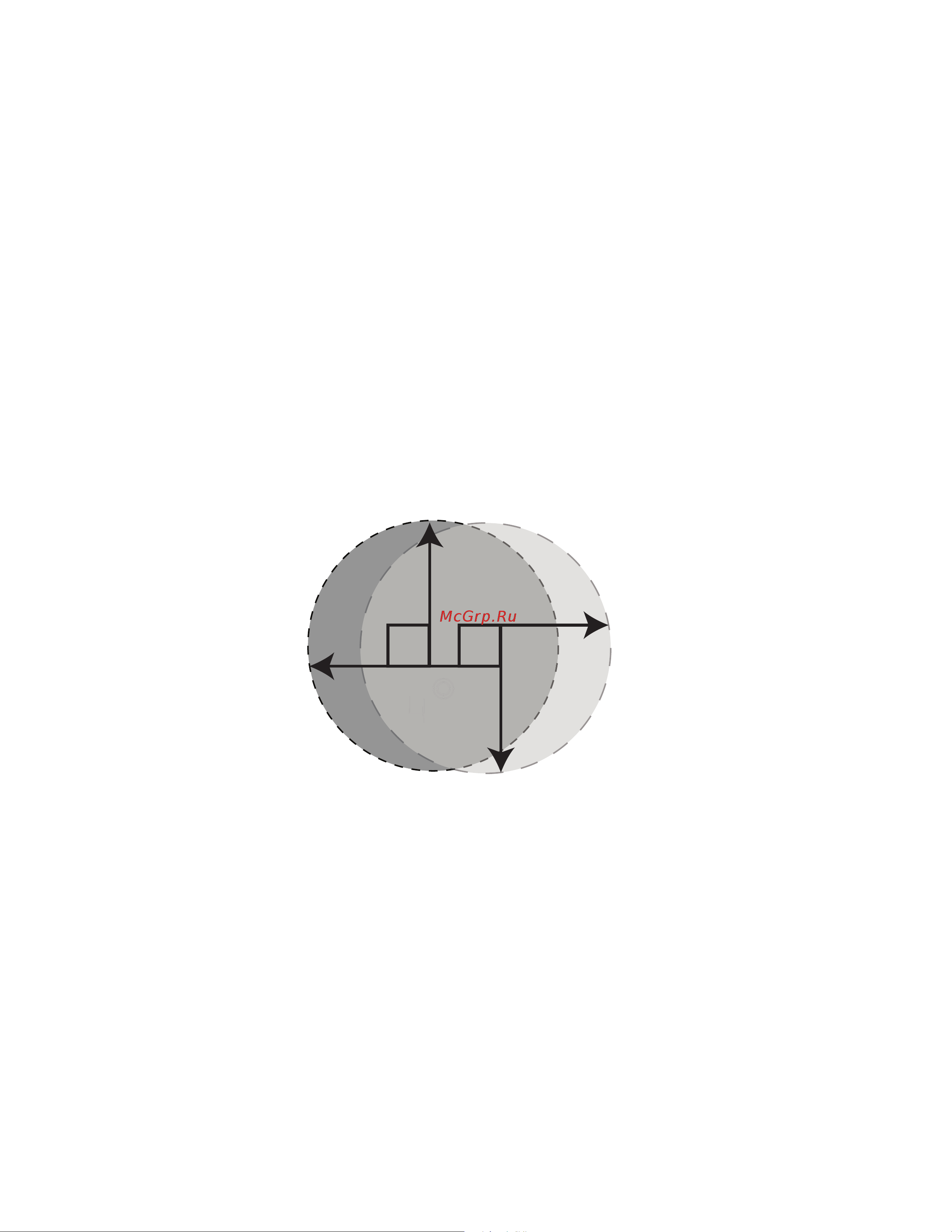

Two Full Diversity
Antenna Systems
(4 Antennas)
Two Full-Time Radios
Hopping to
Multiple Frequencies
Receiver
#1
Receiver
#2
For the geeks out there among you (others feel free to skip to the next section), the Quad-
Internal Antenna Array consists of two complete Receivers, each of which are working full-
time to track and capture the entire Line 6 Relay wireless spectrum for 100% redundancy.
Each Receiver has two dedicated antennas, expertly aimed by Line 6 RF engineering to
provide 360 degrees of uniform coverage with true diversity. Finally, each antenna pair is set
up to provide additional diversity between antenna systems as well as antenna pairs.
Interference Sources
All wireless users want to enjoy the freedom their wireless system provides without dropouts or
interference. Your Relay G70/75 system features the Line 6 5th-generation radio technology,
providing the most advanced dropout protection available:
• Advanced radio tuner protection against adjacent channel power
• Industry leading near/far performance
• Internal quad-antenna system calibrated for maximum coverage by Line 6
