LINE 6 Relay G75 [9/40] Relay tb516 g transmitter
![LINE 6 Relay G75 [9/40] Relay tb516 g transmitter](/views2/1992380/page9/bg9.png)
3•1
Relay TB516 G Transmitter
Relay G70/G75 Advanced Guide
relay Tb516 G TransmiTTer
This Chapter provides details on the Line 6 Relay
®
TB516 G Wireless Transmitter unit. A TB516
G is included in the retail box with each Relay G70 or G75 system. It can also be purchased
individually, allowing you to expand your wireless setup with individual Transmitters for as
many instruments as you like. Be sure to check out the “How To...” Chapter for tips on
conguring Transmitters for use with your Relay Receiver.

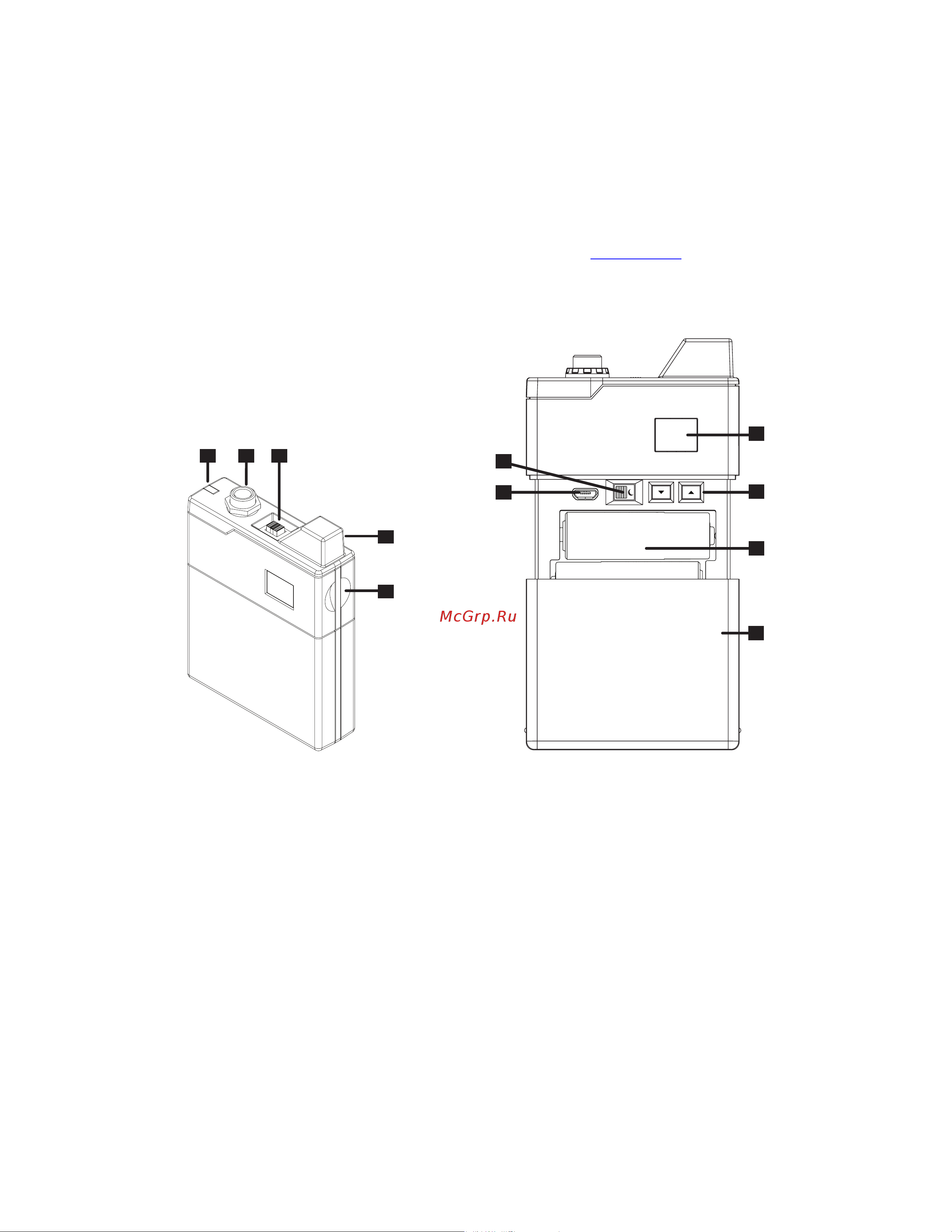

Transmitter Features
1 2 3
4
5
7
10
9
8
6
11
The Relay TB516 G Transmitter
1. Battery Status – This LED illuminates green when the Transmitter is powered On, and more than 1
hour of battery operation time remains. It ashes yellow when less than 1 hour, and ashes red
when less than 30 minutes of battery operation time remain.
Note: Battery operation time is calibrated for 2x AA Alkaline batteries - actual times may vary when using
non-alkaline batteries.
2. Guitar Input – Plug in the included guitar cable here.* To lock the cable, simply plug in the end with
the locking collar and gently twist so that it fastens onto the exposed thread of the Transmitter’s
input jack. DO NOT OVERTIGHTEN. To unlock, spin the collar counter-clockwise and pull the
plug out.
* Note: You can use regular ¼” guitar cables as well.
