5•16
How To...
Relay G70/G75 Advanced Guide
• Connect your G70/G75 or TB516 G to your computer’s USB port* using the supplied
Micro-USB cable and power your device On.
*A USB 2 or USB 3 type port is required to suciently power your device.
• When a G70 or G75 Receiver is connected to your computer’s USB port and powered
On, you’ll see that it remains displaying the “Line 6” logo screen and the Audio
LED above the LCD is solidly lit red, as shown below, indicating that the device is in
Update Mode. If the Home screen is displayed on the Receiver instead, simply turn
the Receiver power O then back On again while connected to the computer via USB
cable.

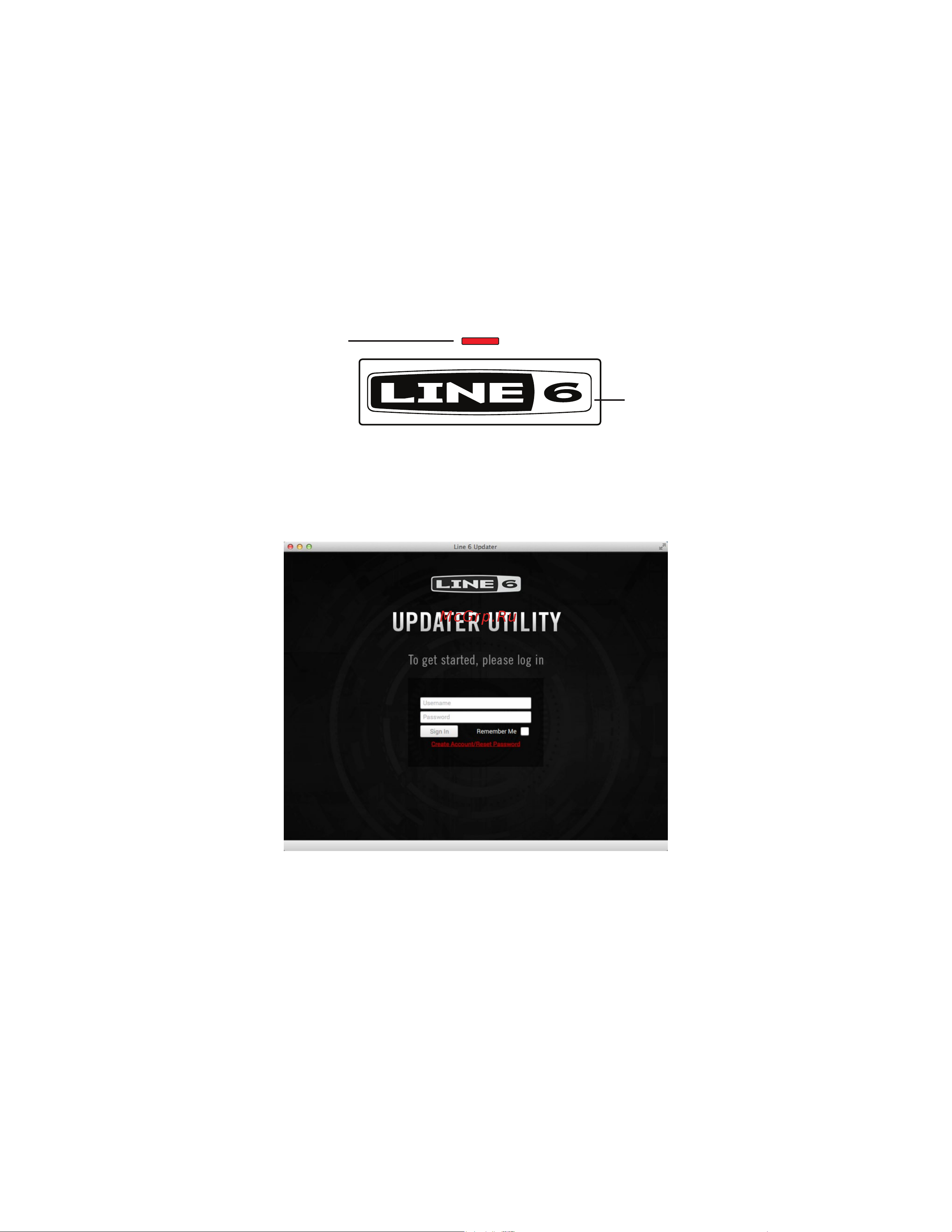

Audio LED is
lit red
Line 6 logo screen
is displayed
The Receiver in Update Mode
• Launch the Line 6 Updater Utility application and Sign In using your Line 6 account. If
you do not yet have a Line 6 account, click on Create Account to do so, then return
to the Updater screen and Sign In.
The Line 6 Updater Utility - Log In screen
• The Updater will detect your connected Relay device. Select it to allow the Updater
Utility to check for available Firmware versions for the device.
• If a newer Firmware version is available than already installed on your device, select
the latest Firmware and then follow the on-screen instructions to install it.
Be sure not to change any settings, disconnect or power your Relay device O
until the Update process has fully completed.
