Appendix B: FBV Foot Controllers
B•10
Pedal Controllers
FBV Express MkII devices include an “on-board” Pedal which provides access to both
the POD HD EXP 1 and EXP 2 assignable controllers. Please see “Expression Pedal
Assignment” on page B•16 for how to assign these controllers to Amp & FX parameters
to customize your Presets.
The Pedal‘s “Toe Switch” will toggle between the control of EXP 1 and EXP 2. The
red WAH and green VOL LEDs on FBV illuminate to indicate the current Pedal Mode,
respectively. (It is also possible to manually assign other functions to the Toe Switch - see
“Using the EXP Pedal Toe Switch” on page B•20.)

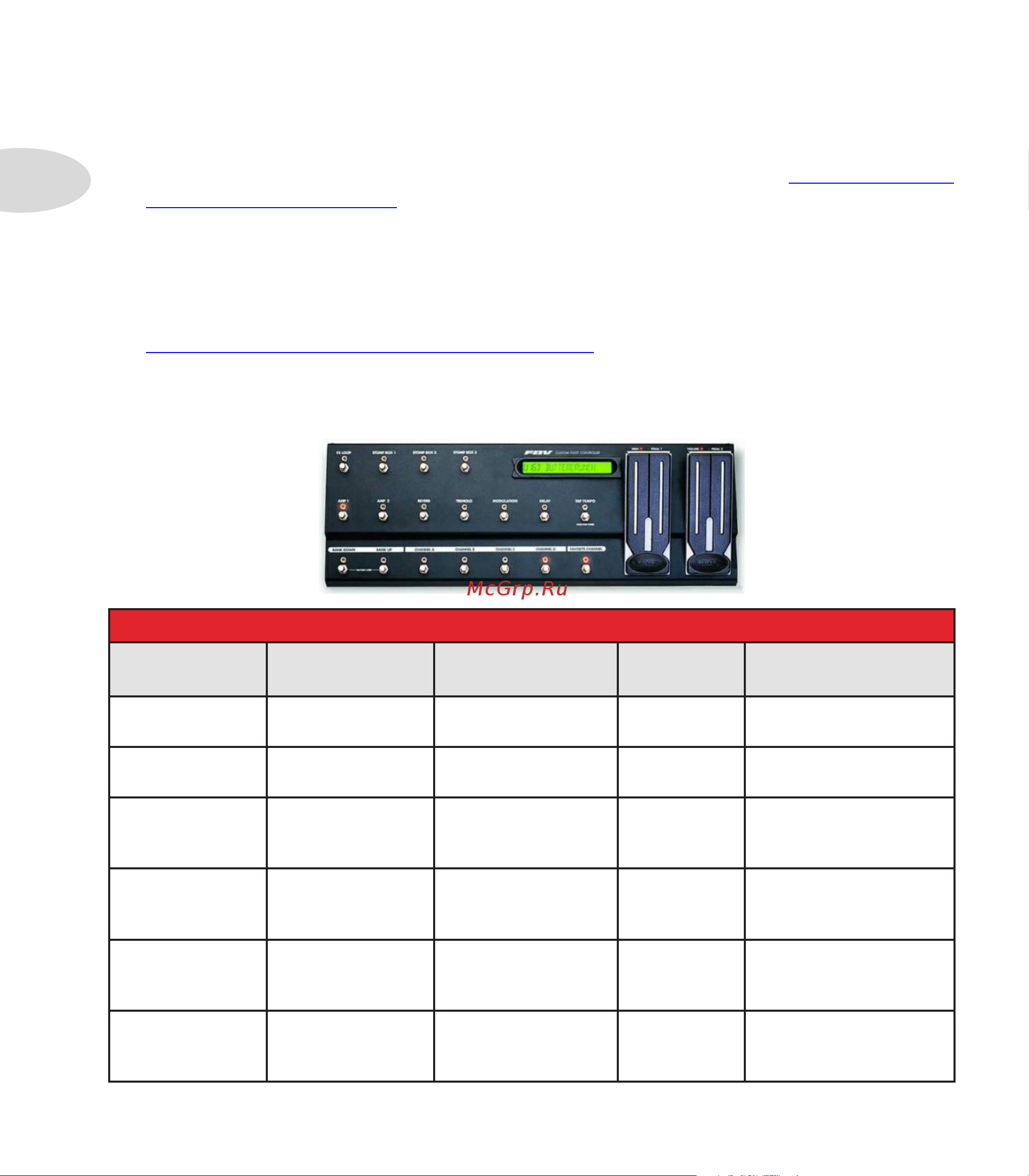

FBV Longboard
FBV Longboard - Footswitch & Pedal Mappings
Footswitch
Label
POD HD
Function
FBV LCD Screen Footswitch
LED
Description
FX LOOP
Looper Mode
On/Off
No change Lit when
mode active
Toggles Looper Mode
On/Off
AMP 1
Set List Select
Mode On/Off
Displays Set List
selection screen
Lit when
mode active
Toggles Set List Select
Mode On/Off
REVERB
FS4 On/Off No change Lit when
Block active
Toggles the “FS4”
assigned Amp/FX
Block
TREMOLO
FS1 On/Off No change Lit when
Block active
Toggles the “FS1”
assigned Amp/FX
Block
MODULATION
FS2 On/Off No change Lit when
Block active
Toggles the “FS2”
assigned Amp/FX
Block
DELAY
FS3 On/Off No change Lit when
Block active
Toggles the “FS3”
assigned Amp/FX
Block
