Amp, Cab & Mic Models
6•7
Amp & Cab Edit Display
Double-press the ENTER button to access the Amp & Cab Edit screens. You’ll see up to 5
pages of options here, allowing you to fine-tune Amp, Cab and Mic settings.* All settings
in these screens are saved per Preset.
*Note: When the selected Amp Model is a “full” Amp Model, you will see five Amp Edit
pages, with pages 2 & 3 offering additional “deep-editing” power amp-related functions,
and pages 4 & 5 offering deep-edit Cab functions, as described below. When the selected
Amp Model is a Preamp, you will see only three Amp Edit pages, which offer the same
options as the Amp/Cab Edit pages 1, 4 and 5 described below. Use the Nav. Disc left &
right arrow buttons to access all available pages.
Amp Edit - Page 1
ENTER
DBL PRESS TO ASSIGN CTL
MOVE
AMP & FX ON / OFF

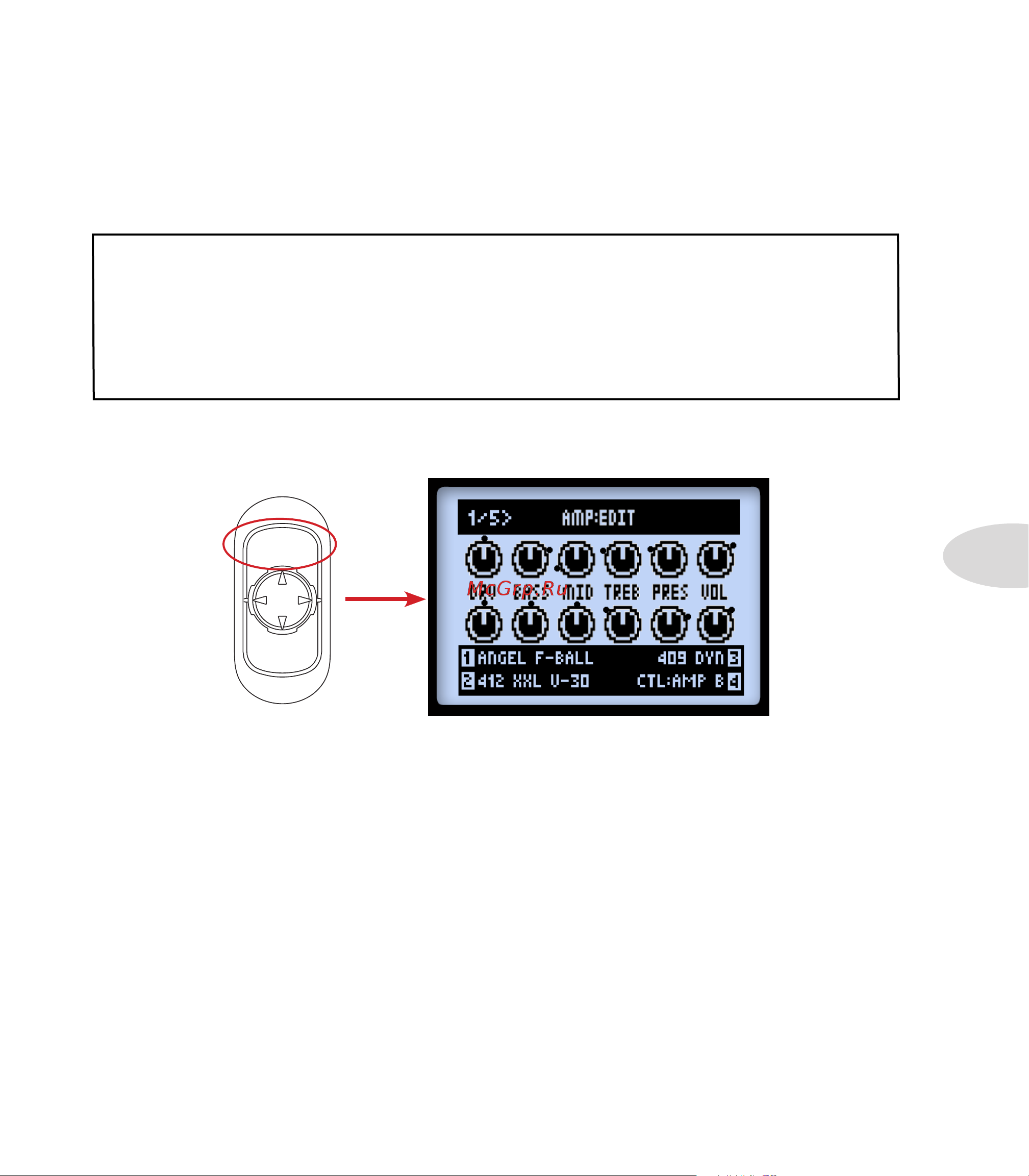

Page 1 of the Amp:Edit Screen - both Amps are On
• With both Amp Models On: You’ll see the screen’s respective controls update as
you adjust the Amp Tone knobs, as shown above. Note that the black “dots” around
each knob indicate its last-saved value. You can also still access the Amp, Cab &
MicModelandAmpA/BselectionsviatheMulti-functionKnobs1-4whilethis
screen is displayed.
