Appendix B: FBV Foot Controllers
B•18
Amp & FX Block Footswitch Assignment
FBV footswitches, as well as the on-board Pedal’s “Toe Switch,” can be configured to
toggle any of the Amp or FX Blocks On/Off. You can reference the current Preset’s FX
footswitch assignments within the Performance View screen, as covered on page B•4.
These settings are saved per Preset.
Assigning an FX or Amp Block to a Footswitch
From the Signal Flow View, select the FX or Amp Block that you want assigned to one of
your footswitches. As an example, we’ll select the Delay FX Block. Then Press and hold
the ENTER button to display the Footswitch Assign screen.
ENTER
DBL PRESS TO ASSIGN CTL
MOVE
AMP & FX ON / OFF
Select the desired Amp or FX block, then press and hold the ENTER button

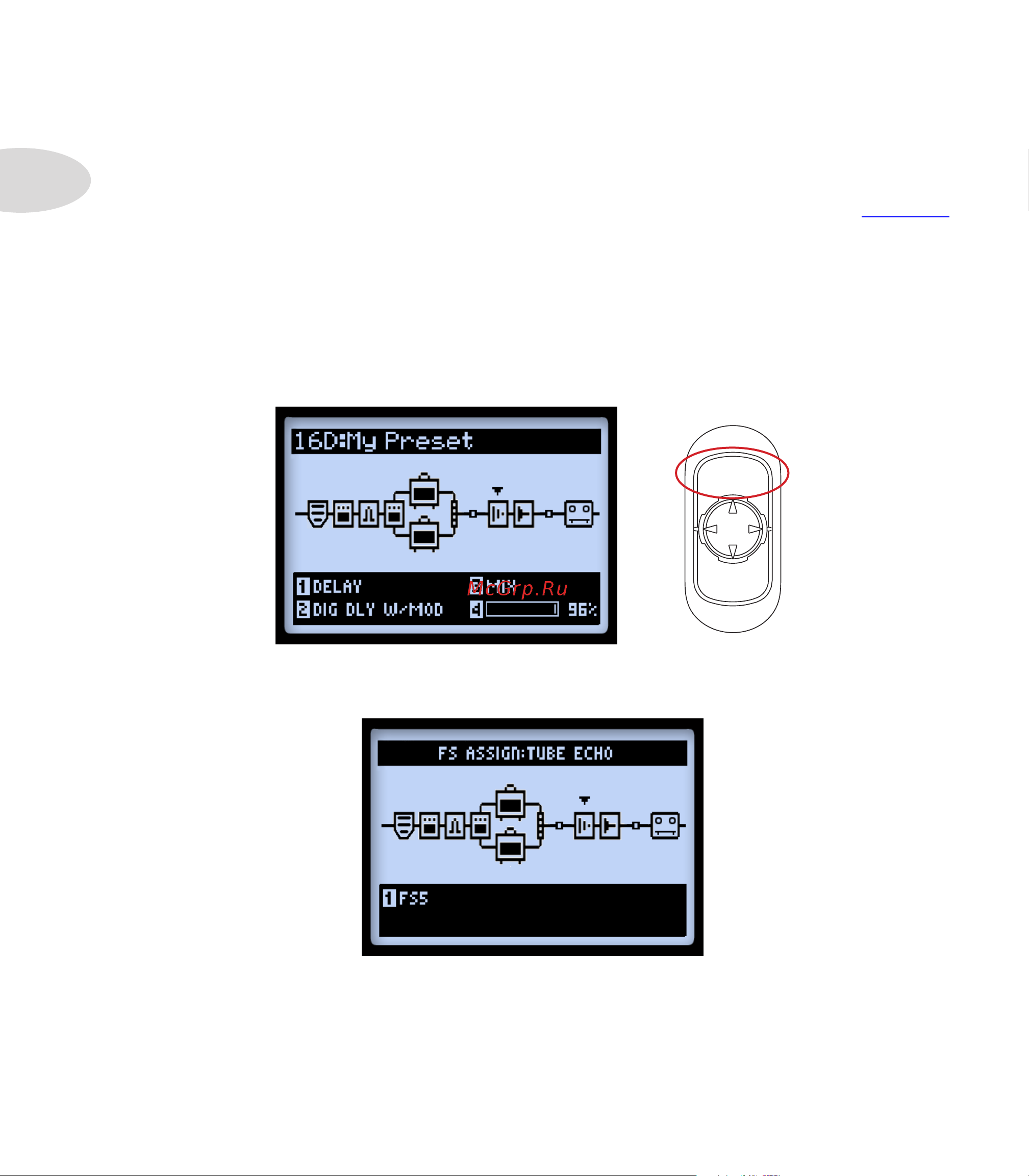

The Footswitch Assign screen, with a Delay FX Model selected
