Features & Functionality
3•2
• FX Parameters (Knob 3): Choose from up to 5 adjustable parameters. Alternatively,
double-press the ENTER button to access all the Model’s parameters in one screen -
see “FX Edit Mode” on page 5•1.
• Parameter Value (Knob 4): Adjusts the value for the currently selected parameter.
Each FX Block also offers the following features:
• On/Off: Toggle the FX Block “On” or “Off” by pressing the ENTER button once.
When Off, your signal flows through the FX Block unprocessed.
• Move FX Position: Each FX Block can be moved throughout the signal chain,
providing complete routing flexibility. Place any FX Model before the Amp (“Pre”),
after the Amp (“Post”), or within one of the parallel Paths A & B - see “Amp Model
Positioning” on page 6•1 for details.
• Saved Per Preset: All FX Block positions, their loaded FX Models and all FX
parameter values within the tone are saved with each Preset.
Amp Blocks
A single Amp Block can be placed in the “Pre” or “Post” signal flow positions, or within
parallel “Path A.” Or, two Amps can be used if positioned within Paths A & B, as shown
below. Much like FX Blocks, Amp Blocks can be toggled On/Off and include several
editable parameters. But there’s quite a bit more available for Amps as well, so please refer
to the dedicated chapter “Amp, Cab & Mic Models” on page 6•1 for details!

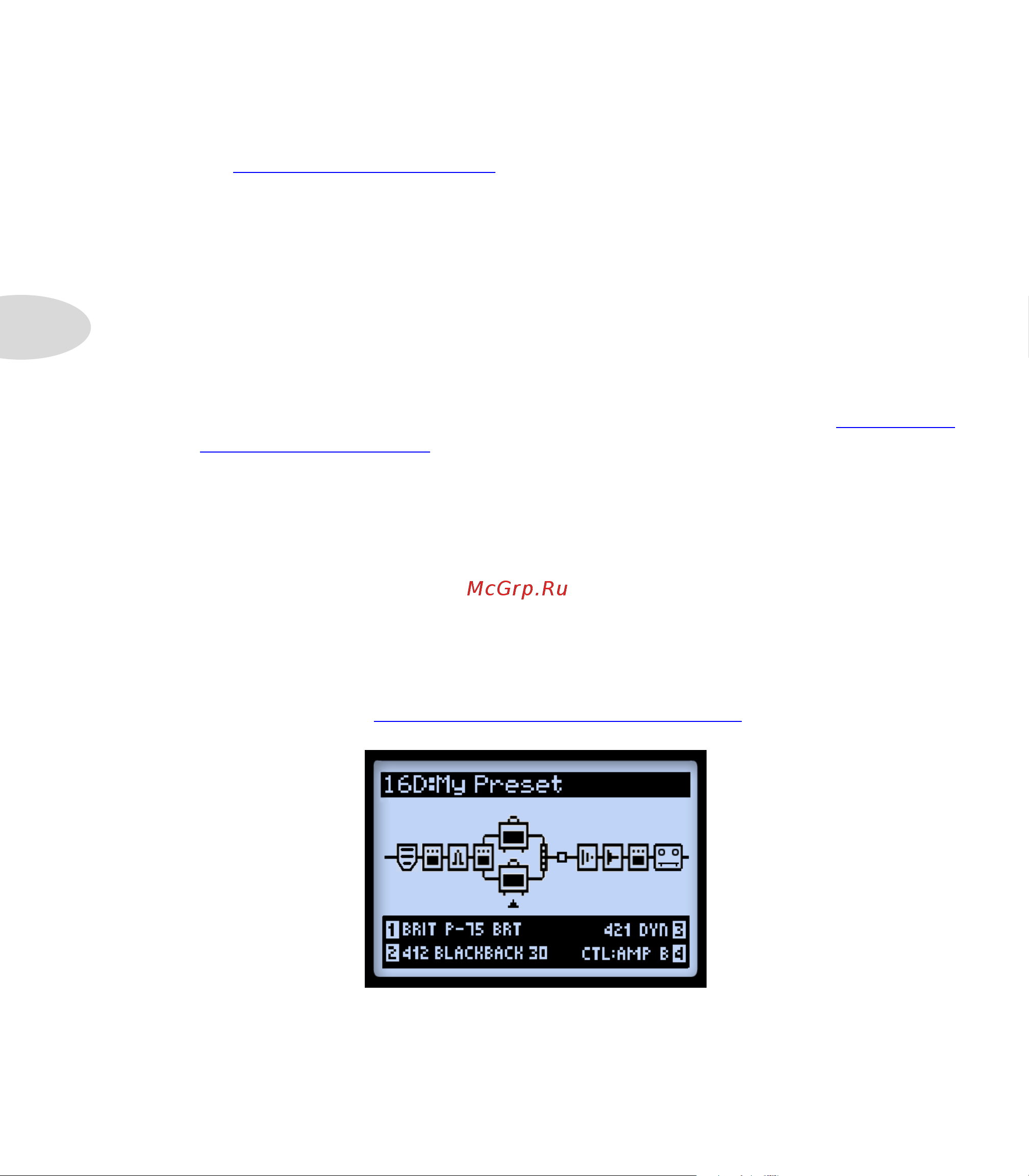

A Preset with two Amp Blocks
