Appendix B: FBV Foot Controllers
B•8
EXP 1 and EXP 2 with Pedal 2 Connected
Whena2ndExpressionPedal(suchasaLine6EX-1ExpressionPedal)isconnected,the
on-board Pedal remains mapped to only EXP 1, and Pedal 2 to only EXP 2. Whenever a
Pedal 2 is connected, you’ll see the EXP 1 & EXP 2 LEDs both lit.

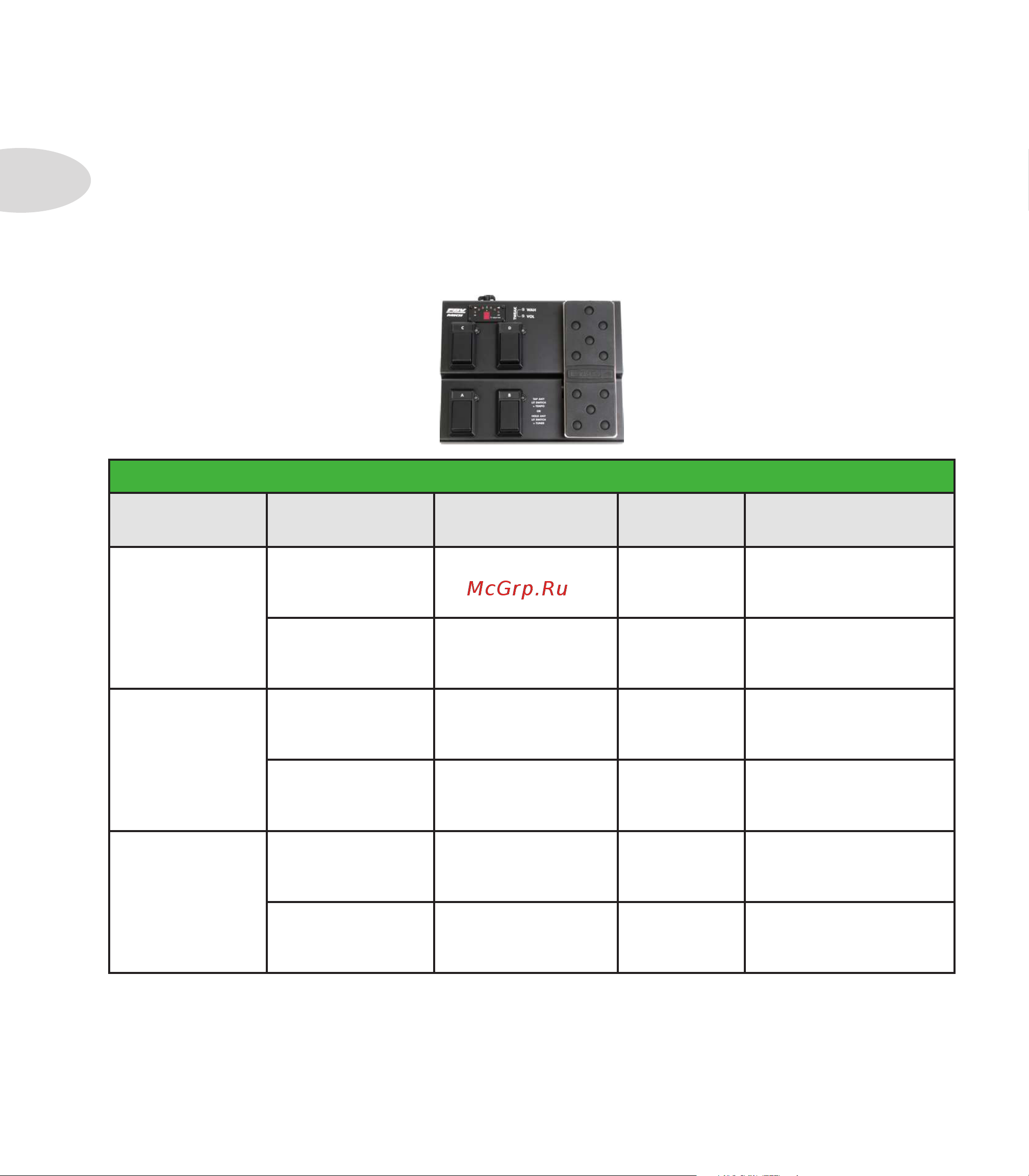

FBV Express MkII
FBV Express MkII - Footswitch & Pedal Mappings
Footswitch
Label
POD HD
Function
7-Segment LED
Display
Footswitch
LED
Description
A
Selects Preset A
(ABCD Mode)
Displays “A” to
indicate selected
Preset
Lit when
selected
Loads Preset A of
current Bank
FS5 On/Off
(FS 5-8 Mode)
Displays current
Preset channel
Lit when
Block active
Toggles the “FS5”
assigned Amp/FX
Block
B
Selects Preset B
(ABCD Mode)
Displays “B” to
indicate selected
Preset
Lit when
selected
Loads Preset B of
current Bank
FS6 On/Off
(FS 5-8 Mode)
Displays current
Preset channel
Lit when
Block active
Toggles the “FS6”
assigned Amp/FX
Block
C
Selects Preset C
(ABCD Mode)
Displays “C” to
indicate selected
Preset
Lit when
selected
Loads Preset C of
current Bank
FS7 On/Off
(FS 5-8 Mode)
Displays current
Preset channel
Lit when
Block active
Toggles the “FS7”
assigned Amp/FX
Block
