FX Models

7•14

Pan

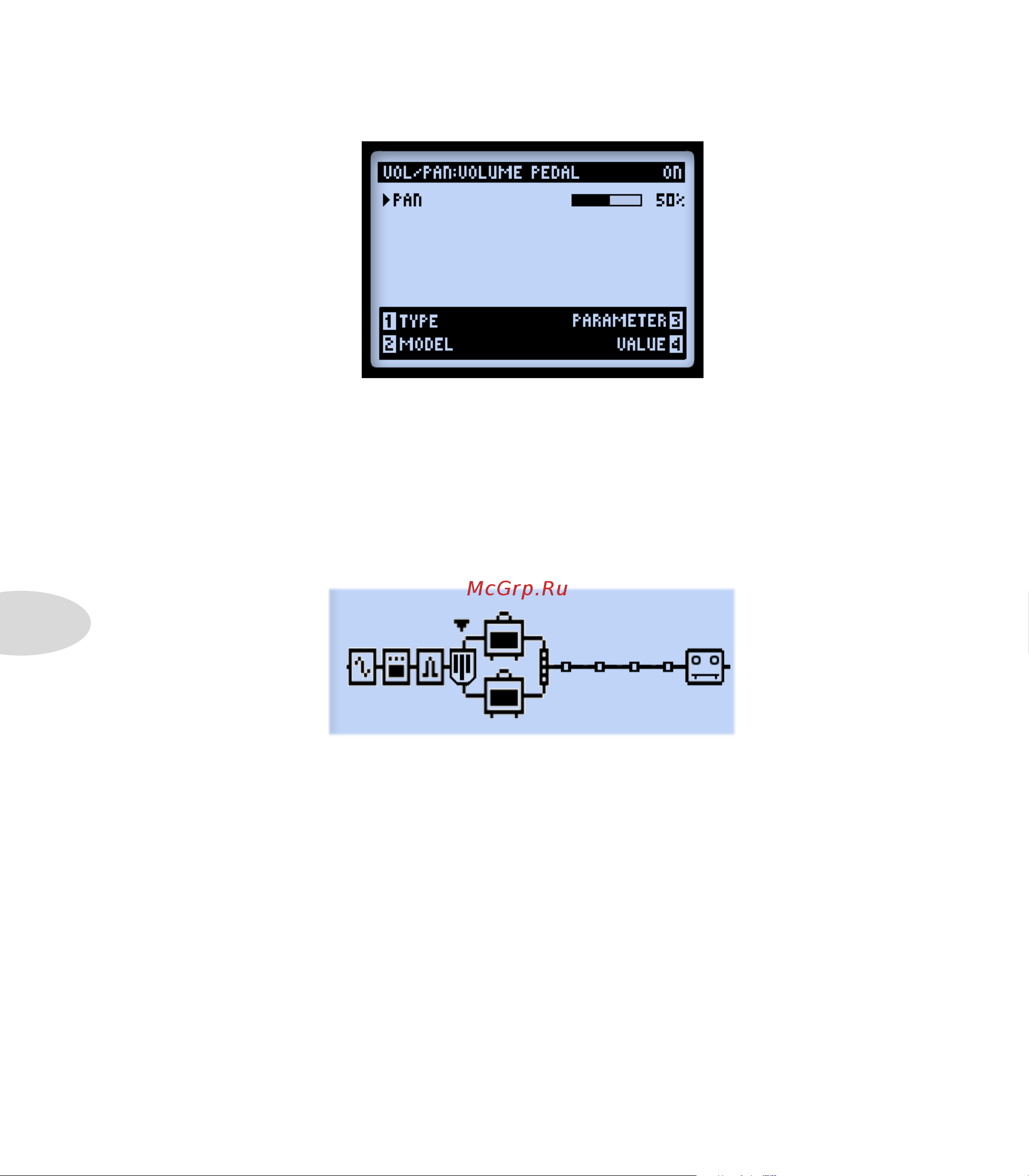

• Pan: Adjusts the signal balance sent to the left and right stereo channels. 0% sends

full left, 50% sends equally left & right, and 100% sends full right.

The audible effect heard when using the Pan can differ quite a bit depending on the

position in your signal chain and what types of FX follow it. Here are a few examples:

Before Path A & B split

Pan positioned before Path A & B split

When placed here, your guitar signal is panned left to Path A and right to Path B. This

can be a cool way to “blend” the sounds of two Amp models.
