USB Audio
9•1
uSb audiO
In this chapter, we’ll cover the USB audio capabilities of POD® HD. With the installation
of the Line 6 USB audio driver, you can use POD HD as a high quality audio interface for
your Mac® or Windows® computer!
The Line 6 USB Audio Driver
Before you connect POD HD to your computer, it is recommended that you download
and install the free Line 6 POD HD Edit software. This installs the necessary Line 6 USB
Audio Driver, as well as the Line 6 Monkey update utility (also see “Appendix A: Line 6
Monkey” on page A•1). The latest POD HD Edit installer, as well as individual installers
for the Driver & Line 6 Monkey, are also always available from http://line6.com/software.
*NOTE: As of the POD HD USB Device Driver version 5.7.0, Mac OS® X 10.4 (Tiger®)
is no longer supported. To use the POD HD USB connection with a Mac® running OS®
X 10.4, you’ll need to download and install the earlier POD HD Driver version 5.1.2,
available from http:line6.com/software/.

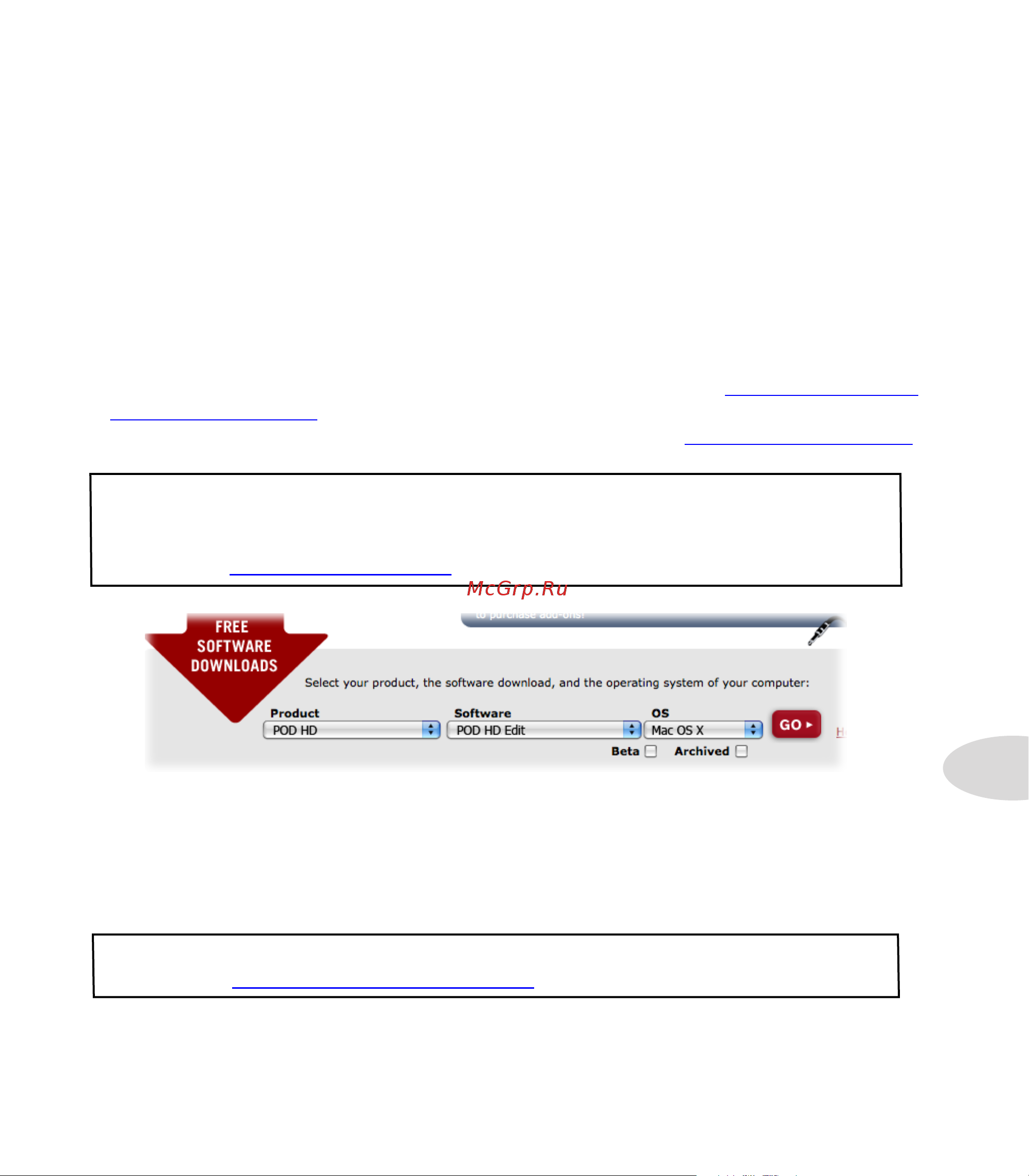

The Line 6 Software Downloads site - selecting the POD HD Edit software
Once installation is complete, just connect your device directly to a USB 2.0 port on your
computer (not into a USB hub) and power on your POD HD. Note that POD HD requires
the use of a USB 2.0 port on your computer.
Also see the POD HD Edit Installer Guide and the POD HD Edit Pilot’s Handbook,
available from http://line6.com/support/manuals.
