Appendix B: FBV Foot Controllers

B•3

• ABCD: Toggles the current Bank’s Presets A through D.

• FS 5-8: Toggles the Amp or FX Block to which you have assigned FS5 through

FS8 On/Off.

Note that the Performance View screens offer handy visual references for the current

Preset’s ABCD and FS assignments - see next section.

• Looper FS Display (Knob 3): Determines how and when the Looper Mode screen

is displayed (see page 1•3, as well as the following “Performance View” section).

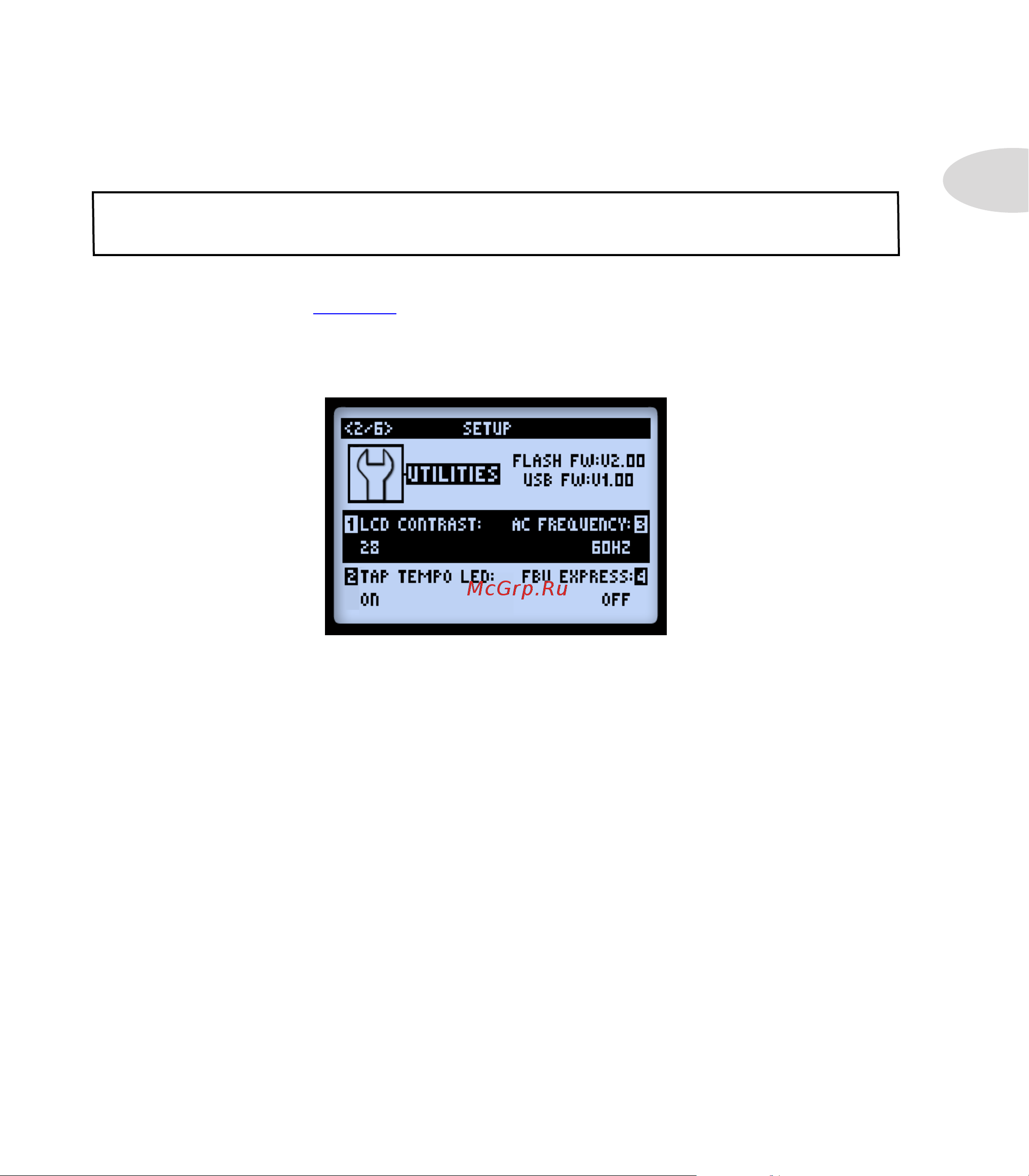

Setup Page 2

• FBV Express (Knob 4): This option should only be set to “On” speciﬁcally for an

FBV Express MkII model controller, to allow it to function correctly with POD HD.
