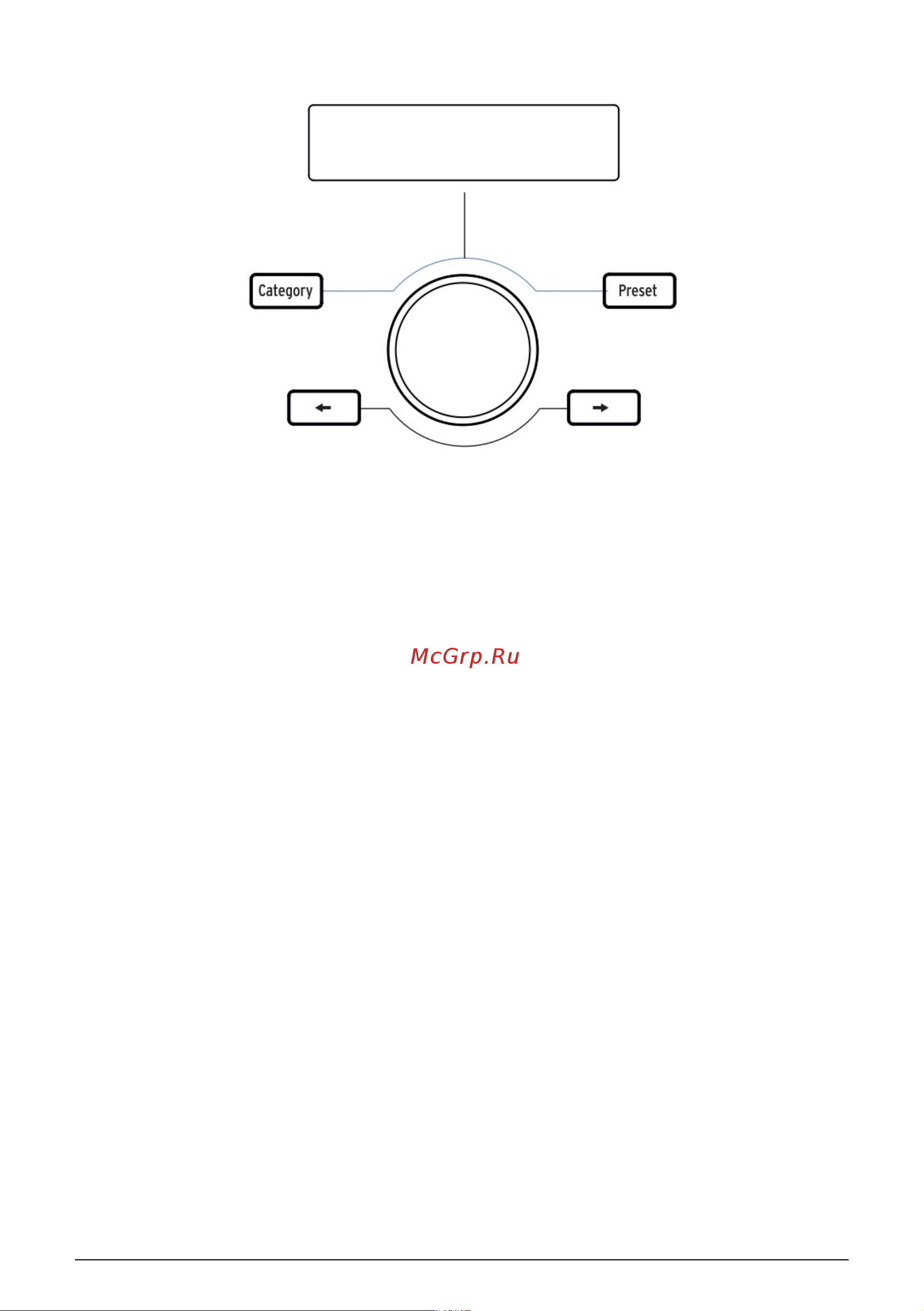

2.9. Preset Browser & Display
KeyLab mkII features a powerful Preset Browser and clickable center knob to help you
quickly find the sound you’re looking for within Analog Lab 4.
The Category, Preset, and Left / Right arrow buttons are used to select presets in Analog
Lab mode [p.24], so all four buttons are lit in this mode.
However, in User Edit mode [p.45] only the Left / Right arrow buttons are used for item
selection, so they are lit but the Category/Preset buttons are not.
To place KeyLab mkII into Analog Lab mode, press the Analog Lab button under the center
knob. For more information about Analog Lab mode, please refer to the Analog Lab 4
manual or the Analog Lab chapter [p.24] in this manual.
To place KeyLab mkII into User mode, press the User button under the center knob. For learn
about User mode, please read the User mode chapter [p.43].
Arturia - User Manual KeyLab MkII - Overview 18
