5.5.2.2. User Edit: Faders
In the case of the Faders (or Encoders, or Select buttons) there are 9 in each bank (top row,
box 1), and there are three banks of them (top row, box 2), for a total of 27 assignable faders.
The items in the top row are changed by
• moving one of the controls to select it (box 1)
• pressing one of the Control buttons (Part 1, Part 2, Live) to select the bank (box 2).
The bottom row of the display shows the parameter that is currently selected for editing,
such as the Mode, MIDI Channel, or Option, etc. At this point you can
• turn the center knob to select a different parameter to edit for this control (box 3)
• click the center knob to switch to the value field (box 4)
• turn the center knob to change the selection
• click the center knob to return to the parameter field and select a new parameter,
etc.
♪: Control banks 1-3 are selected with the Control buttons (Part 1, Part 2, Live), not the center knob.

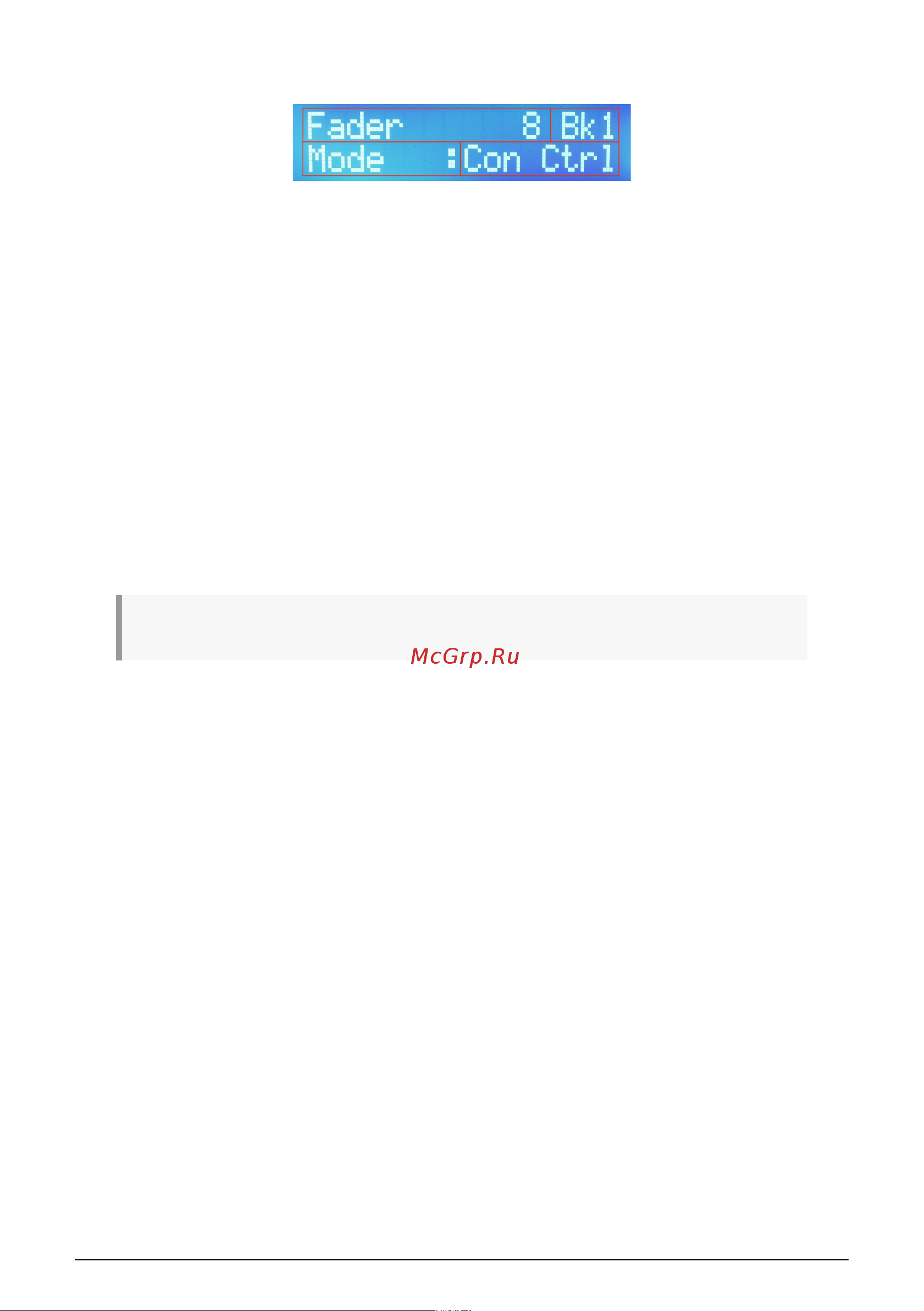

User Edit mode: Fader 8 selected
47 Arturia - User Manual KeyLab MkII - User mode
