5.5.2. The Display in User Edit mode

There may be more parameter fields in the display depending on the control you have

selected for editing. In the two examples that follow, each of the red boxes in the graphic

indicates a field where a value can be changed. The control itself determines what is shown

in the top row, and the center knob is used to change the items in the bottom row.

The name of the control displayed in the top row will change when you:

• move a control to select it, or

• use the Left / Right arrows to select a nearby control.

5.5.2.1. User Edit: Sustain Pedal

Since there is only one Sustain Pedal (or Mod Wheel, or Expression Pedal, etc.), the top row

of the display shows only the name of the control.

The bottom row of the display shows the parameter that is currently selected for editing,

such as the Mode, MIDI Channel, or Option, etc. At this point you can

• turn the center knob to select a different parameter to edit for this control (box 2)

• click the center knob to switch to the value field (box 3)

• turn the center knob to change the selection

• click the center knob to return to the parameter field and select a new parameter,

etc.

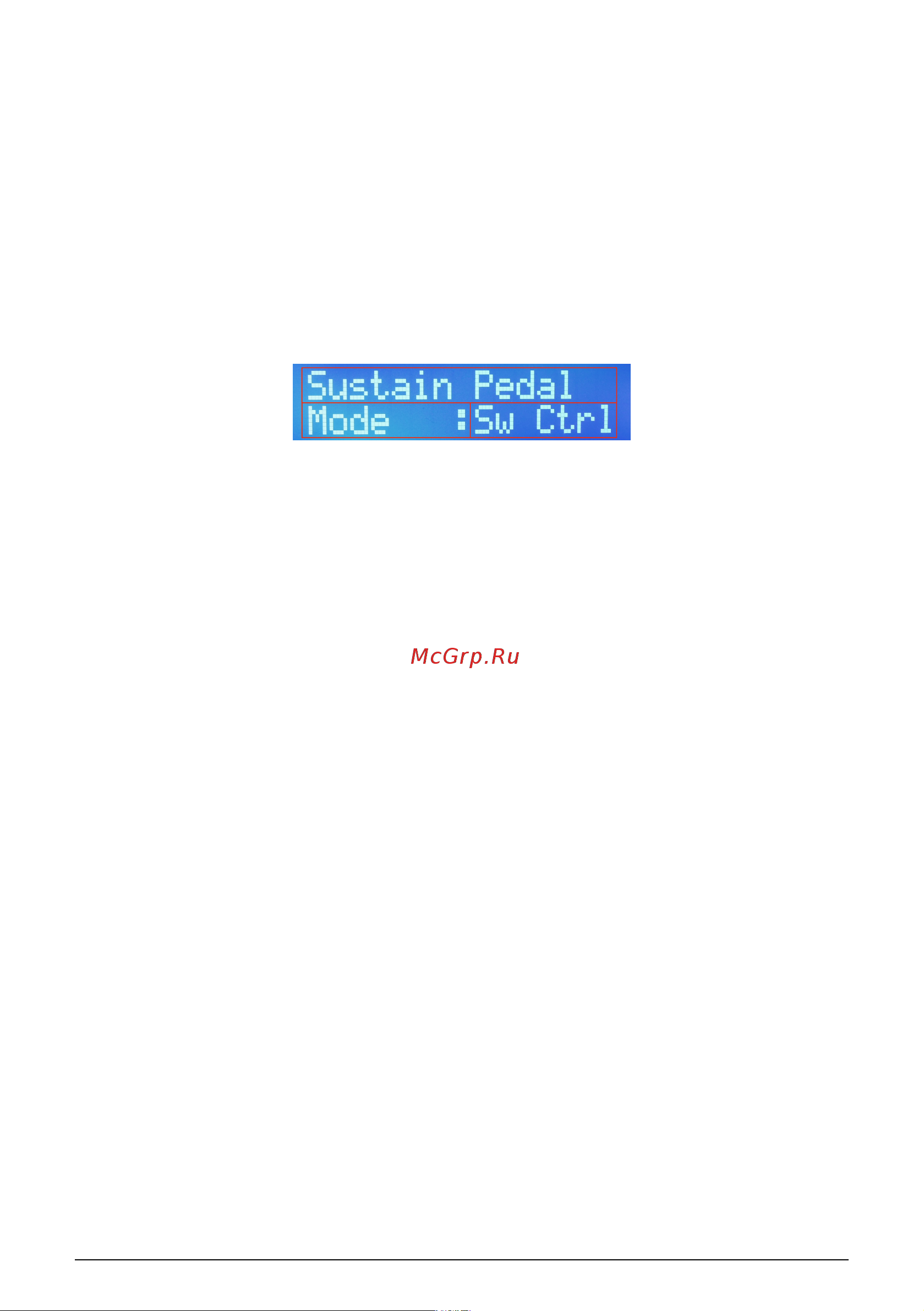

User Edit mode: Sustain pedal selected
