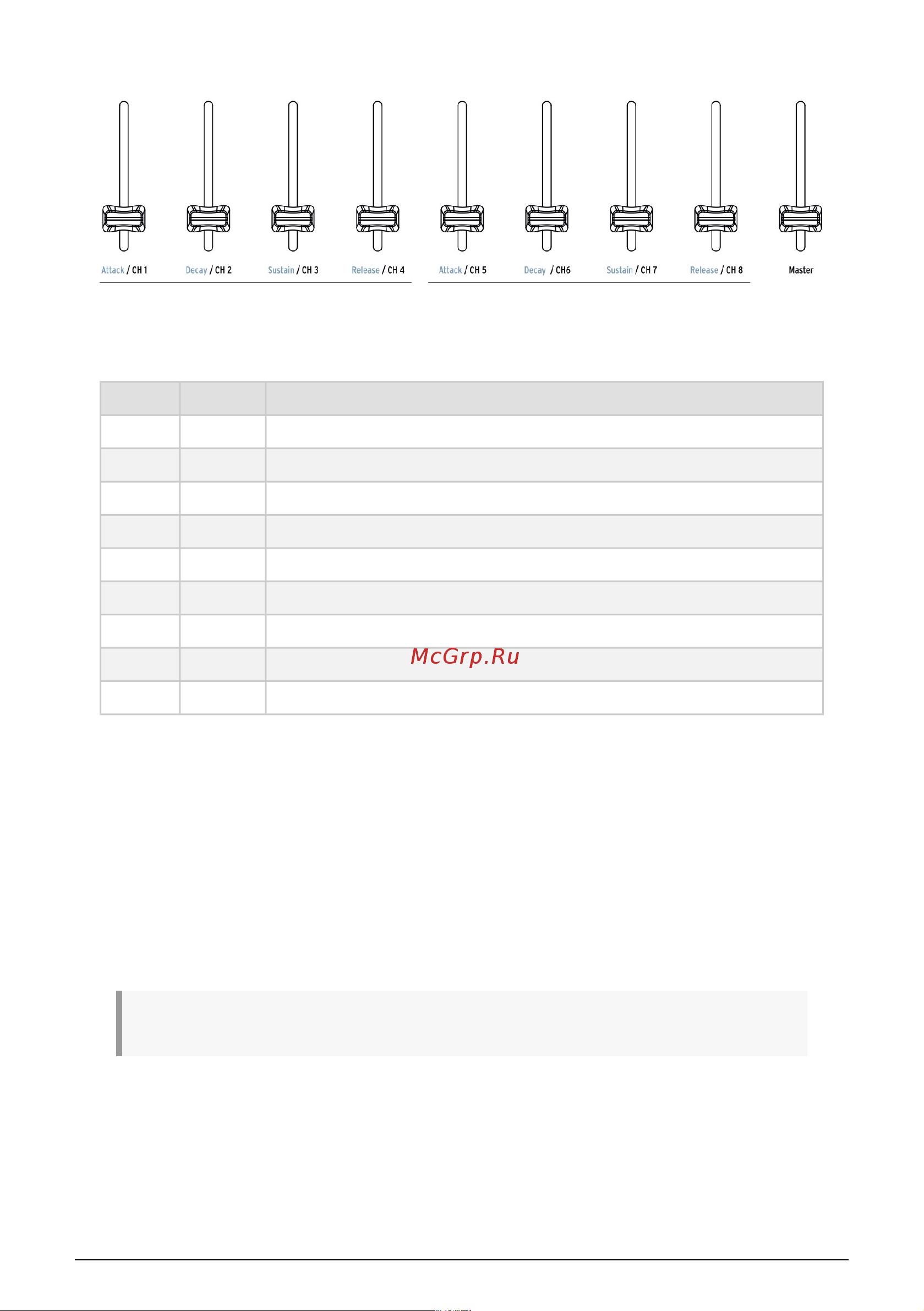

3.4.2. The Faders
The blue text under the encoders reveals their function for Part 1 and Part 2 in Analog Lab
mode:
Fader # Function Description
1 Attack Controls the attack rate of the filter envelope
2 Decay Adjusts the decay rate of the filter envelope
3 Sustain Sets the sustain level of the filter envelope
4 Release Determines the fade-out time of the filter envelope after a key is released
5 Attack Controls the attack rate of the amplitude envelope
6 Decay Adjusts the decay rate of the amplitude envelope
7 Sustain Sets the sustain level of the amplitude envelope
8 Release Determines the fade-out time of the amplitude envelope after a key is released
9 Master Controls the output volume of Analog Lab (Parts 1 and 2)
3.4.3. The Live button
The Live button selects a third bank of assignments for the encoders and faders in Analog
Lab mode. When this button is pressed the Live tab will be selected in Analog Lab 4. It allows
you to assign Macros to encoders 1-8, each of which can control up to 4 parameters drawn
from Part 1, Part 2, or both. The blue text under the faders does not identify their functions
when the Live button is pressed.
The Live tab is also where mixer-type assignments for the faders can be made. Available
parameters include Panning, Level, Effects Sends and Returns, and other parameters for
each Part.
♪: To learn more about the Live tab, please consult the Analog Lab 4 user manual.
Arturia - User Manual KeyLab MkII - Analog Lab mode 30
