Karcher TB 50 [10/168] Operation

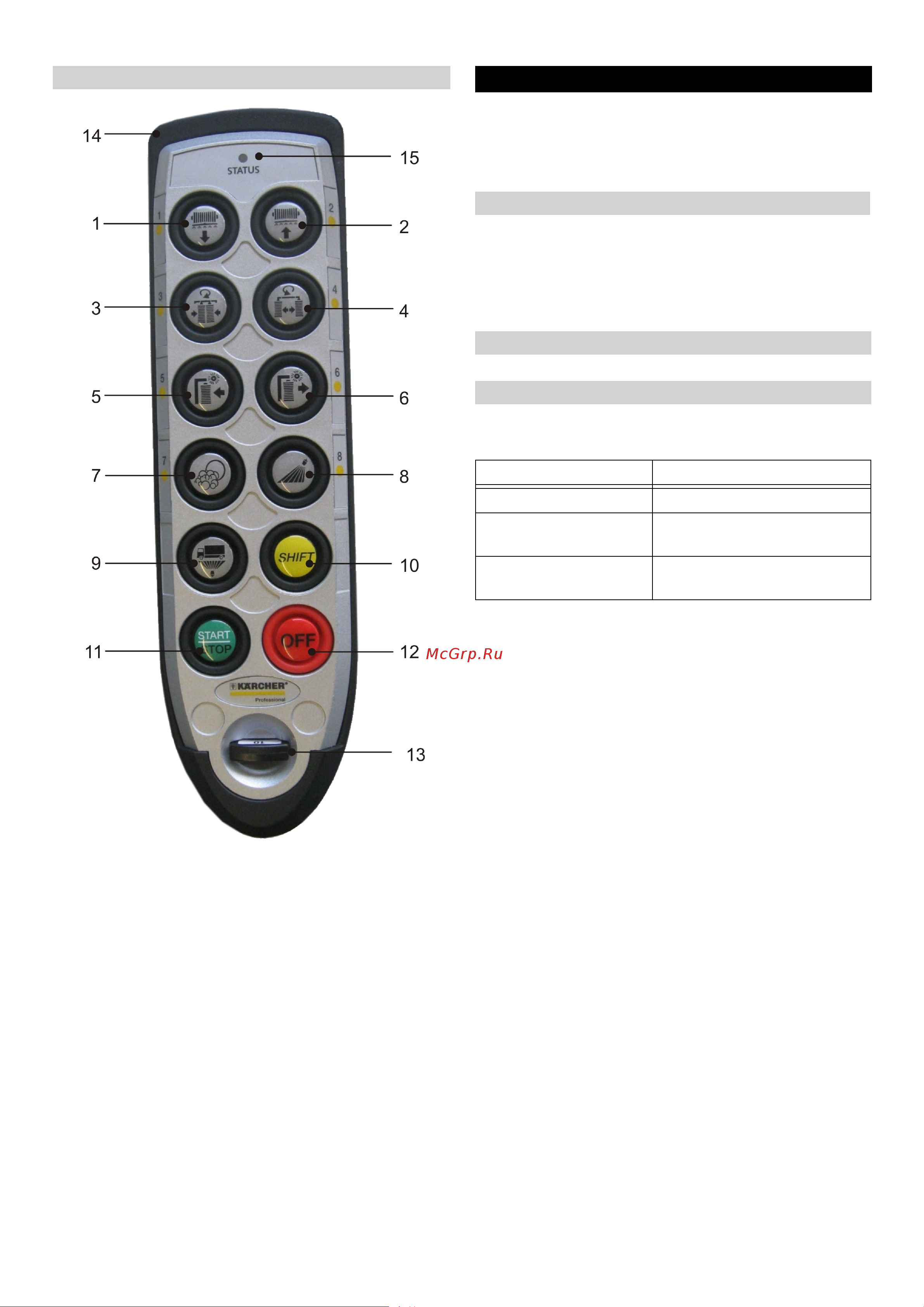

1 Key 1

2 Key 2

3 Key 3

4 Key 4

5 Key 5

6 Key 6

7 Key 7

8 Key 8

9 Key 9

10 SHIFT key

11 START/STOP key

12 OFF key

13 TransKey

14 Portable transmitter

15 "Status" LED

The radio remote control lets you:

– operate the system components directly while in standby

mode

– intervene manually during the wash

– perform manual operations

Switch the handheld transmitter on as follows:

 Press the "START/STOP" key; the status LED will light up in red.

 Press the "OFF" key; the status LED will light up in orange.

 Press the "START/STOP" key again; the status LED will

change to green.

This switch-on sequence must be executed within 10 seconds.

Press the OFF switch to turn off the transmitter.

The status LED shows the operating state and possible fault

messages of the radio control station.

Portable transmitter

Operation

Switching on the radio control station

Switching the radio control station off

"Status" LED

LED Explanation

blinks green 1 x per second Normal operation

blinks red 1 x per second Prewarning low voltage, replace

batteries within 10 seconds

blinks red 2 x per second Fault, see Chapter "Fault assist-

ance"
