Airrobo T10+ [6/87] Automatic dirt disposal and charging base

- 04 -

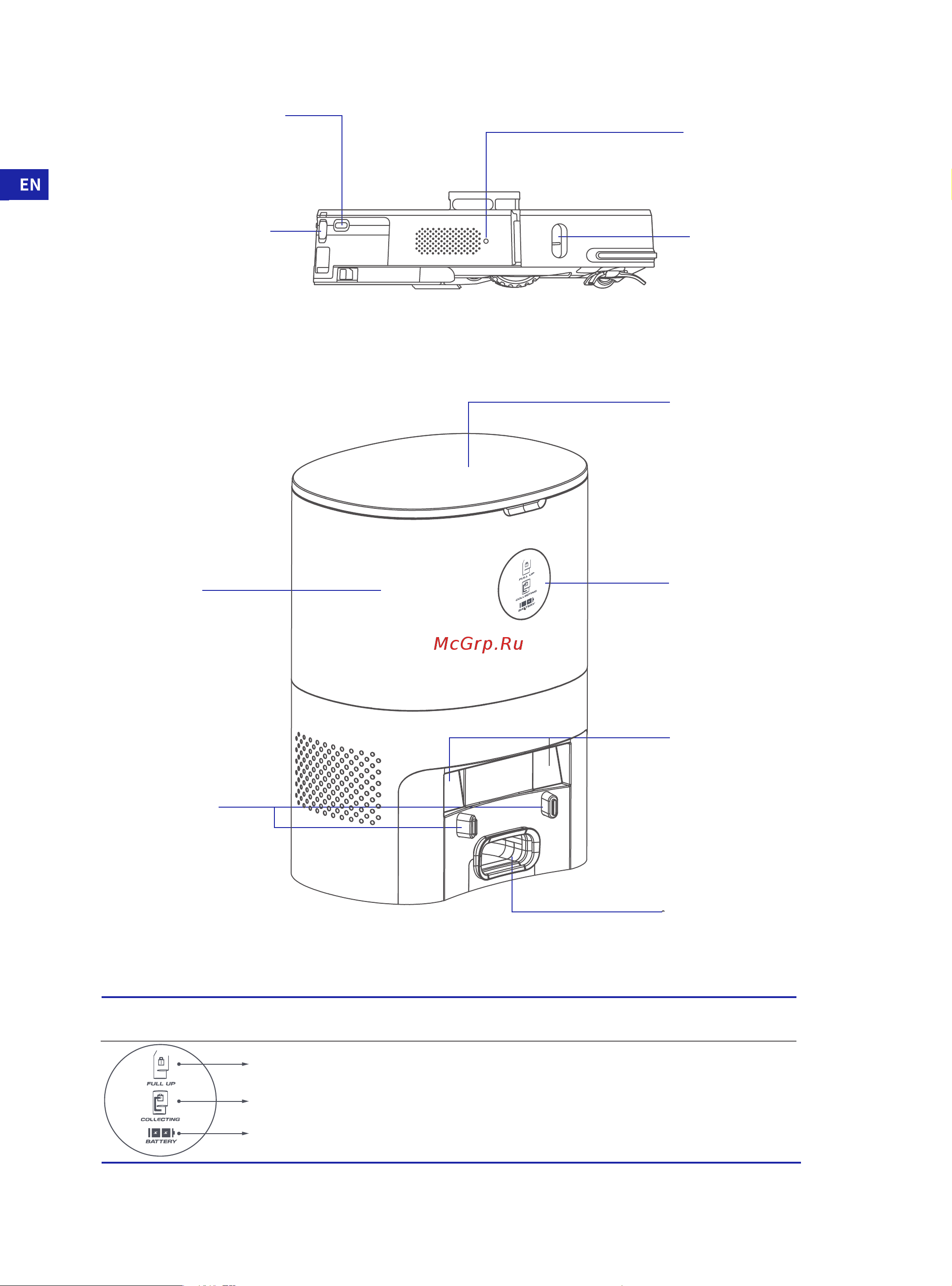

• Automatic dirt disposal and charging base

Charging contacts

Reset button

(Press it and hold for 3

seconds to power oﬀ and

reset the robot.)

ToF wall sensor

Dustbin Release buckle

Upper cover

(Open the upper cover,

put in/take out the dust

bag)

Icons on LCD screen

Infrared signal windows

Charging contacts

and dust collection

induction

Dust extraction port

(Where the dust in the

robot being sucked

through and collected

into the dust bag)

Cabin for dust bag

The description of the icons on LCD screen of the base:

*All the icons will be on and ﬂash when the fan fails.

The status of the icons on the LCD screen of the base

When the dust passage is stuck or dust bag is full, the icon will be on. And if the dust bag

is not installed correctly, the icon will ﬂash.

When collecting dust, the icon will ﬂash.

When the battery is fully charged, there will be two green bars, and when lower than

50%, there will be one green bar only.

Reminder:

The dust bag is a consumable item and needs to be purchased from the oﬃcial distribution channels.
