Getting to Know Your Copier
2
EP1085 2-7

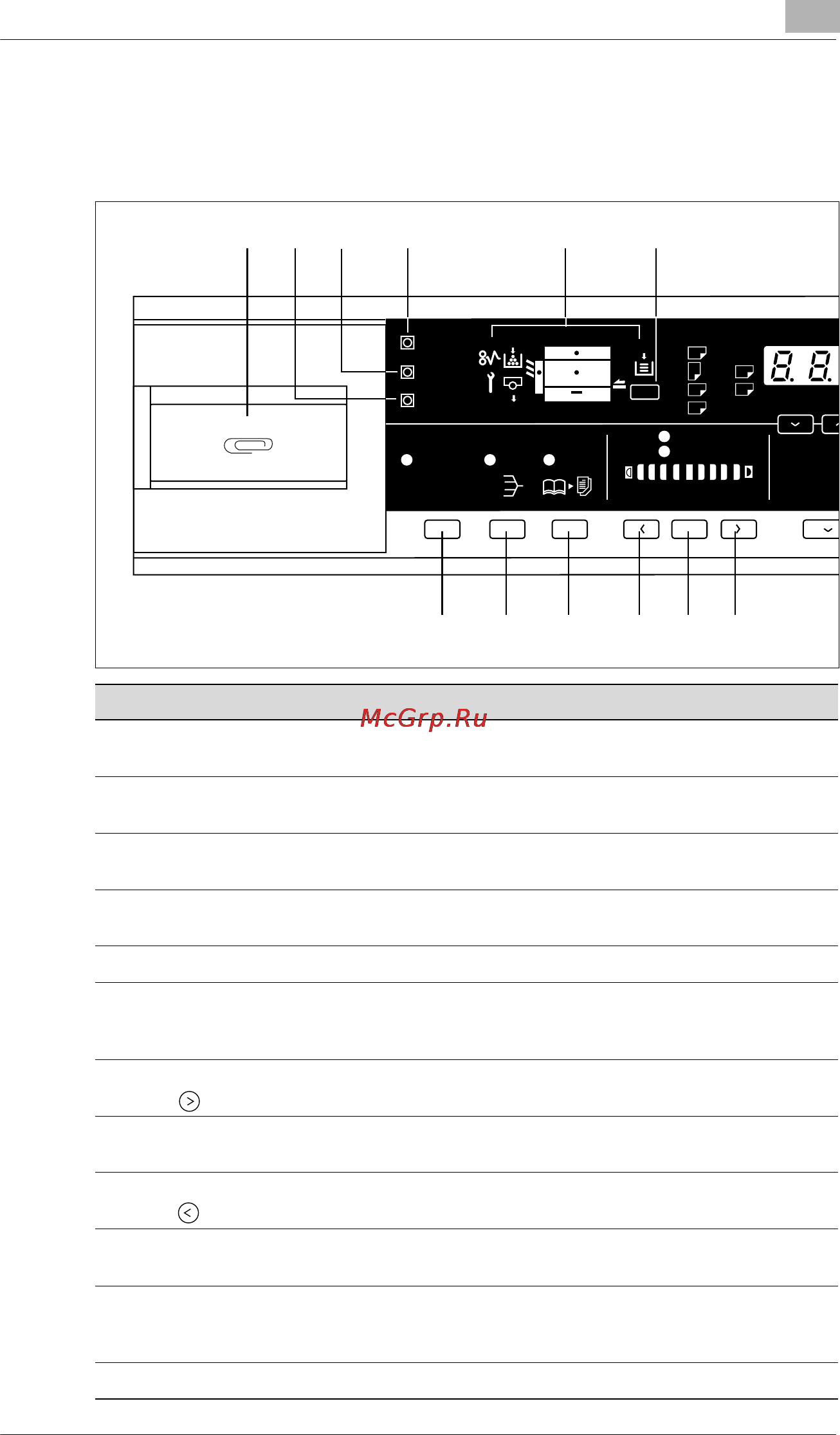

2.3 Control Panel Keys and Indicators
Control Panel
Pcs. Specification Description
1 Clip Tray Use this tray to put the paper clips used with the
documents.
2 Drum Dehumidify Key Presstoremovecondensationformedonthesurfaceofthe
PC Drum, see page 4-4.
3 Auxiliary Toner
Replenishing Key
Press when the image on the copy becomes too light, see
page 4-3.
4 Meter Count Key Press to check for the current counts of four electronic
counters of the copier, see page 4-2.
5 Display See the other pages in this manual, see page 2-9.
6 Paper Select Key Press to select the paper source, Drawer or Multi Bypass
Tray (option), when the Multi Bypass Tray is mounted to
the copier, see page 3-10.
7 Exposure Control Key
(,Darker)
Press as necessary to make the exposure level higher in
the Manual Exposure Mode, see page 3-16.
8 Auto Exposure Mode
Key
Press to select the Auto Exposure, Manual Exposure or
Photo Mode, see page 3-16.
9 Exposure Control Key
( ,Lighter)
Pressasnecessarytomaketheexposurelevellowerinthe
Manual Exposure Mode, see page 3-16.
10 Book Key Press as necessary to select the Book Copying Mode, see
page 3-17.
11 Finishing Mode Select
Key
Press as necessary to select the Sort or Non-Sort Mode,
when the sorter(option) ismounted to the copier, see page
3-20.
12 Auto Size Mode Key Feeder(option) is mounted to the copier, see page 3-14.
A
Meter Count
Toner
Drum Dehumidify
Paper
50%~20
0
Auto
Lighter Darker
Auto Size Sort Book
Auto/Photo
141
115
100
81
70
A3
@@
A4
@@
B4
A4
@@
FLS.
A5
@@
Inch
12 11 10 9 8 7
654321
