2

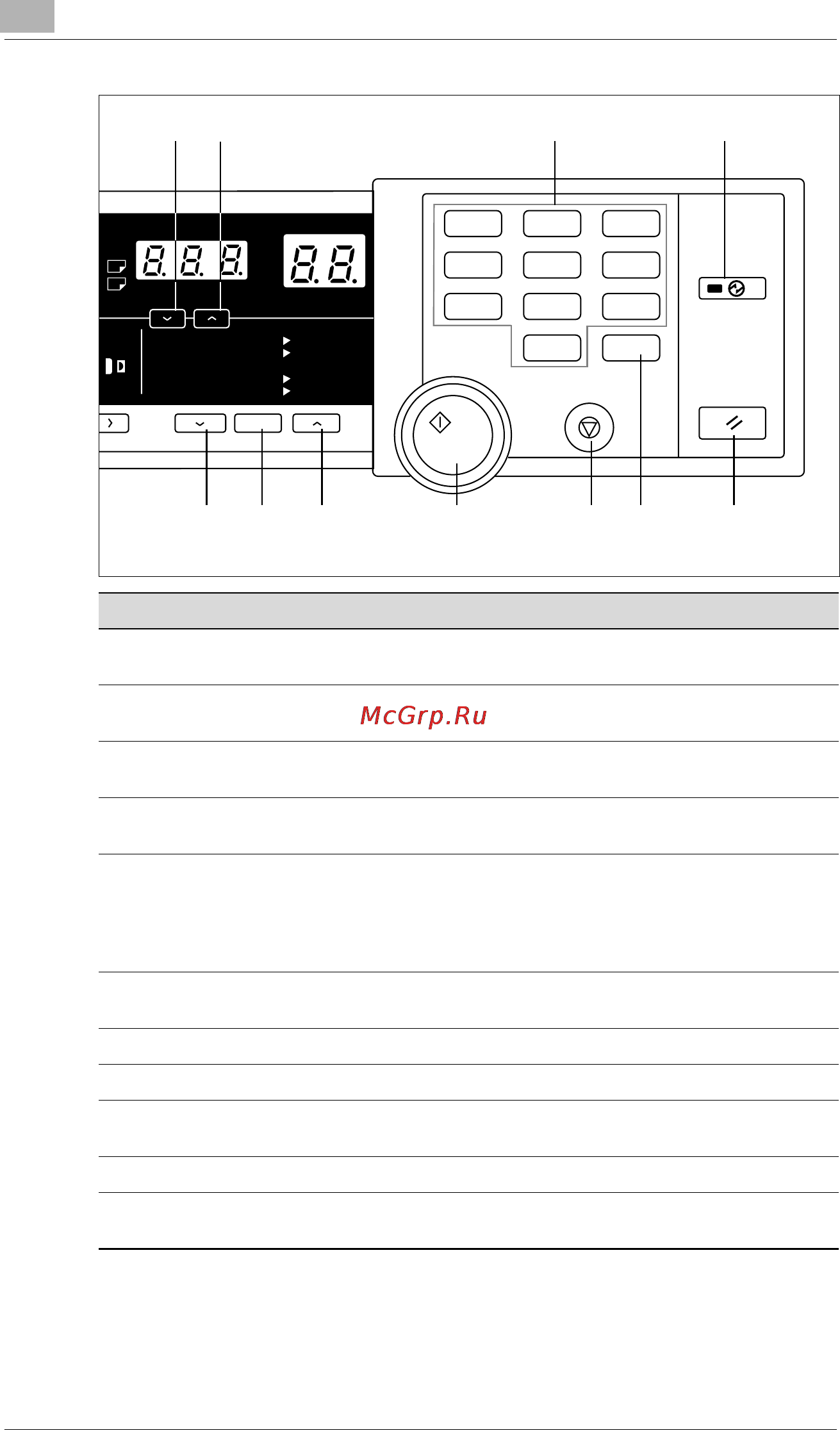

Getting to Know Your Copier
2-8 EP1085
Pcs. Specification Description
13 Zoom Down Key Press as necessary to make the zoom smaller in 1%
increments, see page 3-13.
14 Zoom Up Key Press as necessary to make the zoom larger in 1%
increments, see page 3-13.
15 Key Pad Use to enter the number of copies to be made and other
numeric data.
16 Energy Saver Key Press to set the copier into the Energy Saver Mode, see
page 2-14.
17 Panel Reset Key
Press to set the copier into the initial mode, clearing all
settings made previouslyon the controlpanel, seepage
2-15.
Holding down the Key for 3 seconds will initiate the
User’s Choice, see page 4-12.
18 Clear Key Press to clear the number of copies, zoom and other
settings.
19 Stop Key Press to stop a multi-copy cycle.
20 Start Key Press to start a copy cycle.
21 Enlargement Key Press toselect a desired fixedenlargementratio,seepage
3-12.
22 Full Size Key Press to select full size (100%), see page 3-12.
23 Reduction Key Press to select a desired fixed reduction ratio,
see page 3-12.
1
4
7
3
6
9
C
2
5
8
0
100%
%
50%~200%
1152O003DA
D
arker
141% A4
@
A3
115% B4
@
A3
100%
@@@
Full Size
81% B4
@
A4
70% A3
@
A4
B
4
F
LS.
nch
13 14 15 16
171819202122
23
