Getting to Know Your Copier
2
EP1085 2-13
Auto Copy Start Function
(Only when Automatic Document Feeder is used)
TheAuto Copy Start Function allows a copy process to bestarted as soon
as the copier completes warming up.

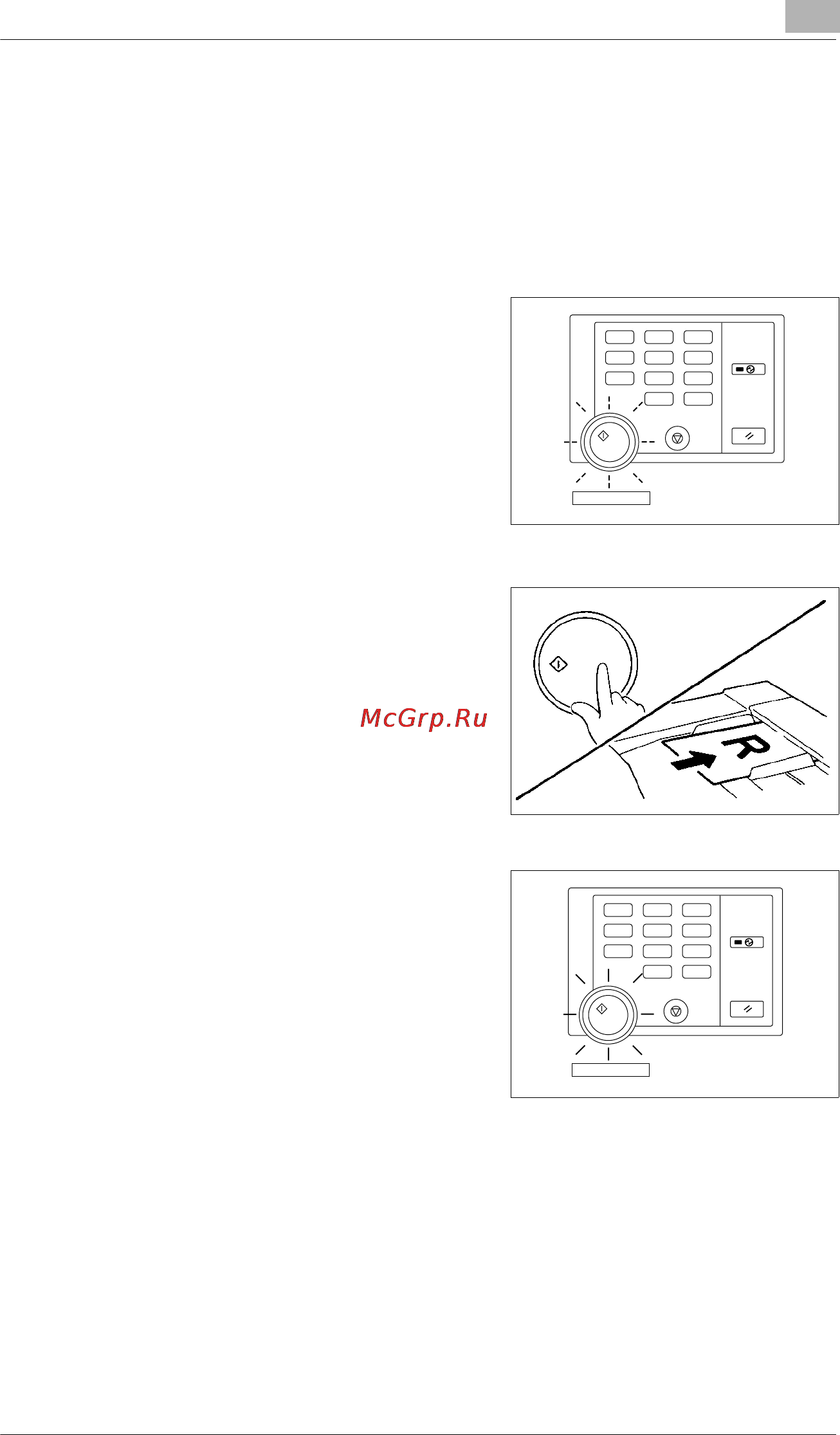

Using the Function
1 When you load the originals onto
the Automatic Document Feeder
while the copier is warming up, the
Start Key turns to green and blinks.
2 When the Start Key is then pressed,
the Start Key turns to blinking
orange and the Automatic
DocumentFeederstartsfeedingthe
first original onto the Original Glass.
3 As soon as the copier completes
warming up, the Start Key turns
green and the copy cycle is started.
Energy Saver
Panel Reset
1
4
7
3
6
9
C
2
5
8
0
Start Stop
1142O091EA
Blinking Green
Energy Saver
Panel Reset
1
4
7
3
6
9
C
2
5
8
0
Start Stop
1142O092EA
Turns Green
