When an Indicator Lights Up
5
EP1085 5-1
5 When an Indicator Lights Up

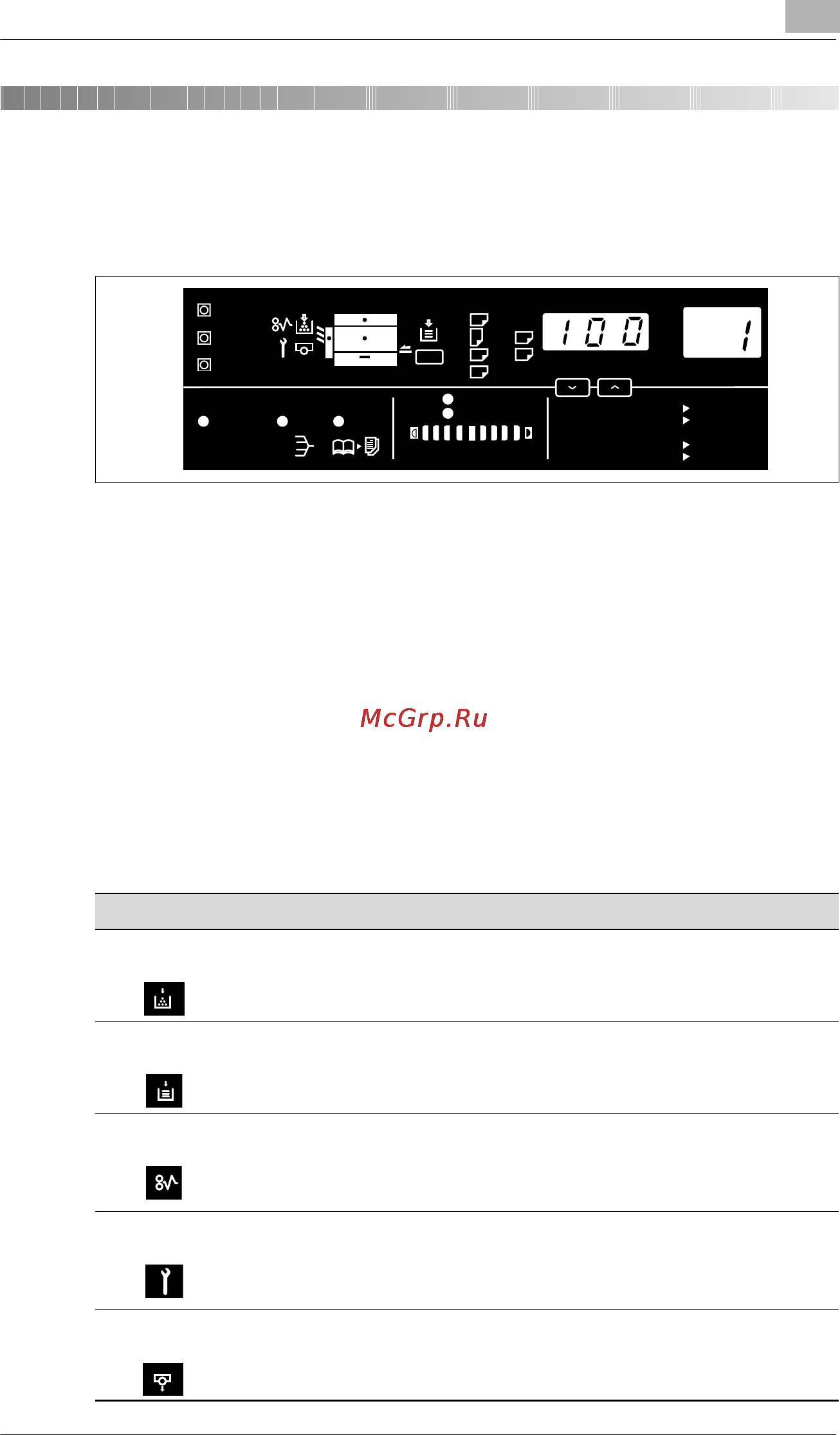

5.1 Quick Reference for Indicator Lights
When the copier encounters any of the following conditions, a
correspondingwarningindicator lightsup.Someofthewarning conditions
entail inhibition of the initiation of a copy cycle:
A control panel key or keys have been incorrectly operated.
Not all necessary conditions are met to start a copy cycle.
The copier requires the operator’s intervention during a copy cycle.
The following table explains the most important warning conditions. You
will find more detailed procedures on the page referenced in the “Action”
column.
Warning Indicators
Indicator Copier State Action
Add Toner
Indicator
The copier has run out of toner.
(Warning onlyand a copy cycle can
still be initiated.)
Replace the Toner Bottle following
the steps given in the “Add Toner
Indicator” section, see page 5-2.
Add Paper
Indicator
The paper has run out. Add paper by following the steps
given in the “Add Paper Indicator”
section, see page 5-4.
Misfeed
Indicator
There is a misfeed sheet of paper
insidethecopieroranoption.
Check the Monitor Display for the
location ofthemisfeedandclearthe
misfeed sheet of paper as
instructed, see page 5-7.
Call-Tech.-
Rep. Indicator
The copier has developed a
technical malfunction.
If the Call-Tech.-Rep. Indicator
remainslitevenafter youhavereset
it, call your Technical
Representative, see page 5-15.
I.U. Service
Life Indicator
Indicates that the Toner Bottle is
running out of toner.
ReplacetheTonerBottleassoonas
possible, see page 5-16.
Meter Count
Toner
Drum Dehumidify
Paper
%
50%~200%
1152O034DA
Auto
Lighter Darker
Auto Size Sort Book
Auto/Photo
141% A4
@
A3
115% B4
@
A3
100%
@@@
Full Size
81% B4
@
A4
70% A3
@
A4
A3
@@
A4
@@
B4
A4
@@
FLS.
A5
@@
Inch
