3
Making Copies
3-10 EP1085
Checking the Copy Paper Size and Selecting the Paper Source
When the copier is not equipped with the Multi Bypass Tray, it is
necessary to check that the desired paper size is loaded into the Drawer.
If it is not loaded, make a copy using a Manual Bypass Tray or load the
desired paper size into the Drawer.
Manual Bypass Copying see page 3-22.
Add Paper Indicator see page 5-4.
Whenthe copier is equipped with the Multi Bypass Tray, the papersource
(paper size) can be selected, Drawer or Multi Bypass Tray.
Selecting the Paper Source
(Only when the Multi Bypass Tray is used)

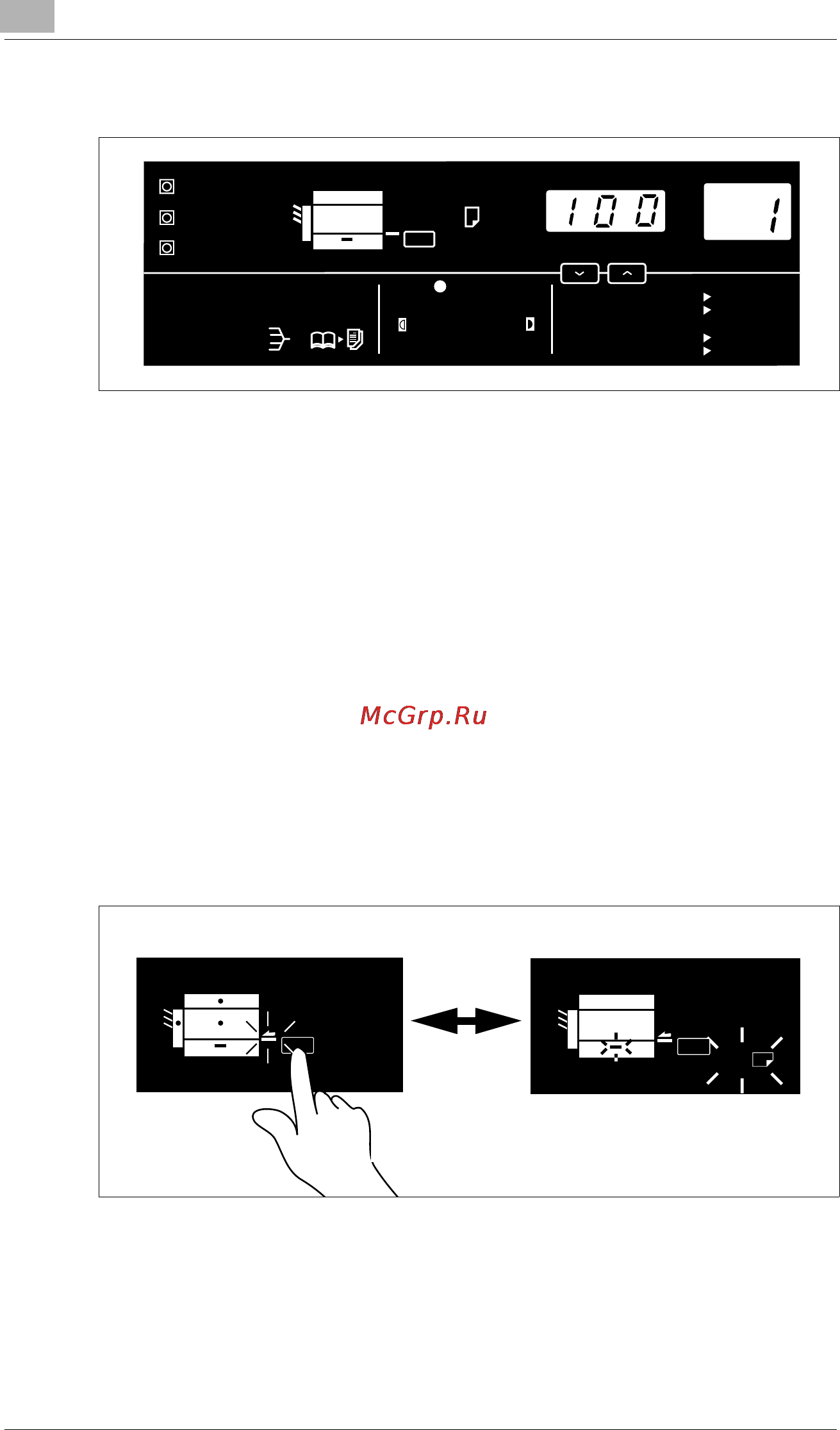

Each time the Paper Select Key is pressed, the Paper Source Indicators,
Drawer Indicator or Multi Bypass Indicator, light up alternately. Also, the
Paper Size Indicator corresponding to that of the Drawer lights up.
Meter Count
Toner
Drum Dehumidify
Paper
%
50%~200%
Auto
Lighter Darker
Auto Size Sort Book
Auto/Photo
141% A4
@
A3
115% B4
@
A3
100%
@@@
Full Size
81% B4
@
A4
70% A3
@
A4
A3
@@
A4
@@
B4
A4
@@
FLS.
A5
@@
Inch
Paper
1142O100CA
1142O139DA
A4
Paper
