Making Copies
3-14 EP1085

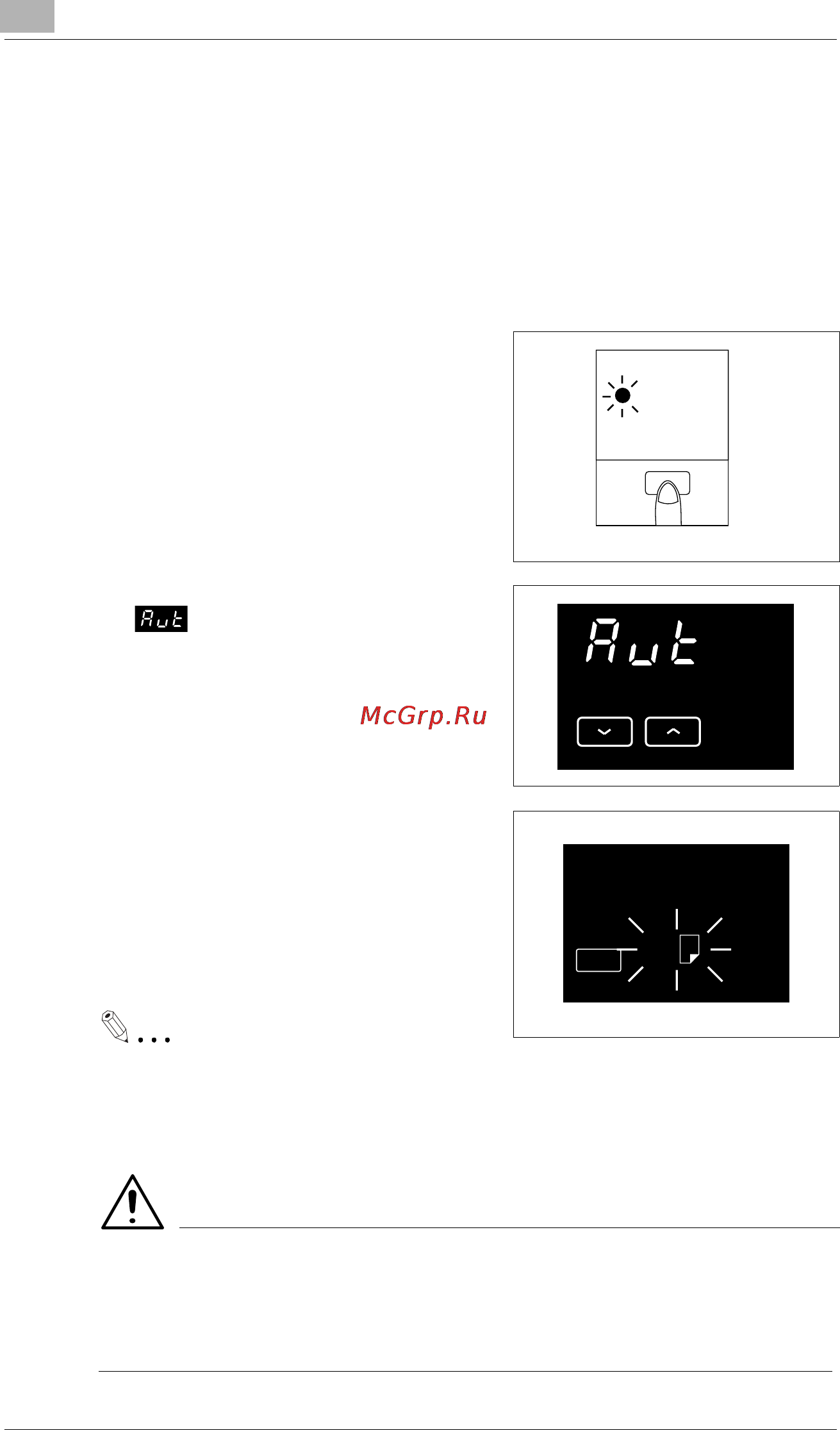

Auto Size Mode
The AutoSizeMode can be selected only whenthecopier isequipped
with the Automatic Document Feeder.
In the Auto Size Mode, the copier automatically selects the correct
zoom ratio according to the original size and copy paper size.
Selecting the Auto Size Mode
1 Press the Auto Size Mode Key.
The Zoom Ratio Indicator shows
.
2 Check the copy paper size, see
page 3-10.
If the desired paper size is not
loadedintheDrawer,loaditintothe
Drawer. Add Paper Indicator, see
page 5-4.
Useful Tip
This mode is very helpfulfor neat filing when you need to make copies
from originals of assorted sozes.
NOTE
è The copier has been factory-set to automatically select the Manual
Mode. This default setting can be changed to the Auto Size Mode by
using the User’s Choice, see page 4-7.
Auto Size
1142O096CC
1142O046AA
%
50%~200%
Paper
A4
1142O143DA
