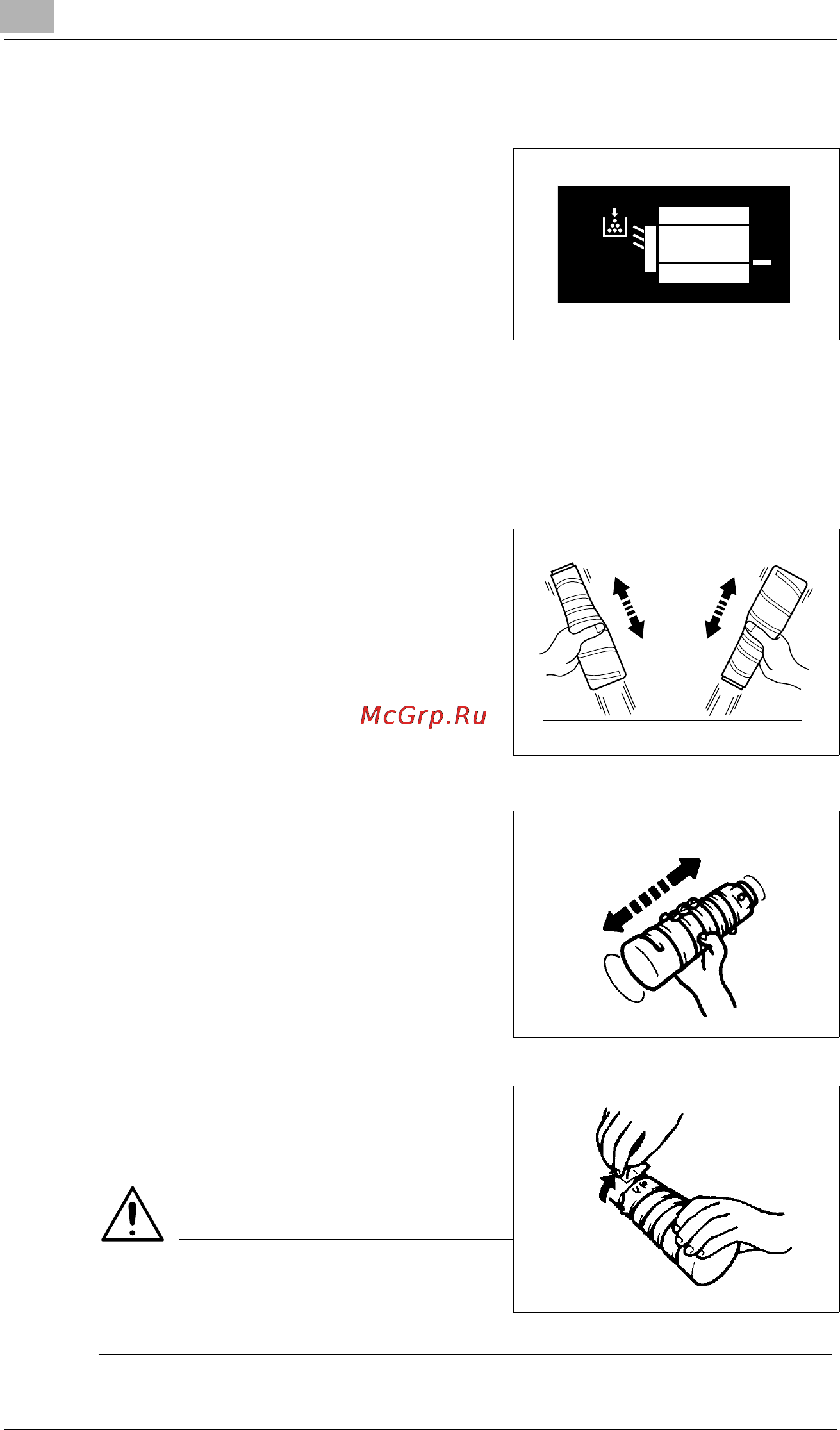

When an Indicator Lights Up
5-2 EP1085
5.2 Detailed Instructions for Indicator Lights
Add Toner Indicator
The AddToner Indicator lightsupwhen
toner in the Toner Bottle is running out.
OncetheIndicatorlightsup,replacethe
TonerBottle witha new one as soon as
possible by following the procedure
given below.
Replacing the Toner Bottle
1 Open the Front Door.
Swing open the Toner Bottle Holder and pull out the old Toner Bottle.
2 Tap the new Toner Bottle on a hard
surface, such as a desk, several
times. Then, turn the Toner Bottle
over and tap it several times again
in the same manner.
3 Shake the new Toner Bottle well.
4 With the Seal on the Toner Bottle
facingup,slowlypeel offthe Seal as
illustrated.
NOTE
è Be careful, some toner may puff out
from the bottle.
1142O021AB
