Getting to Know Your Copier
2
EP1085 2-9

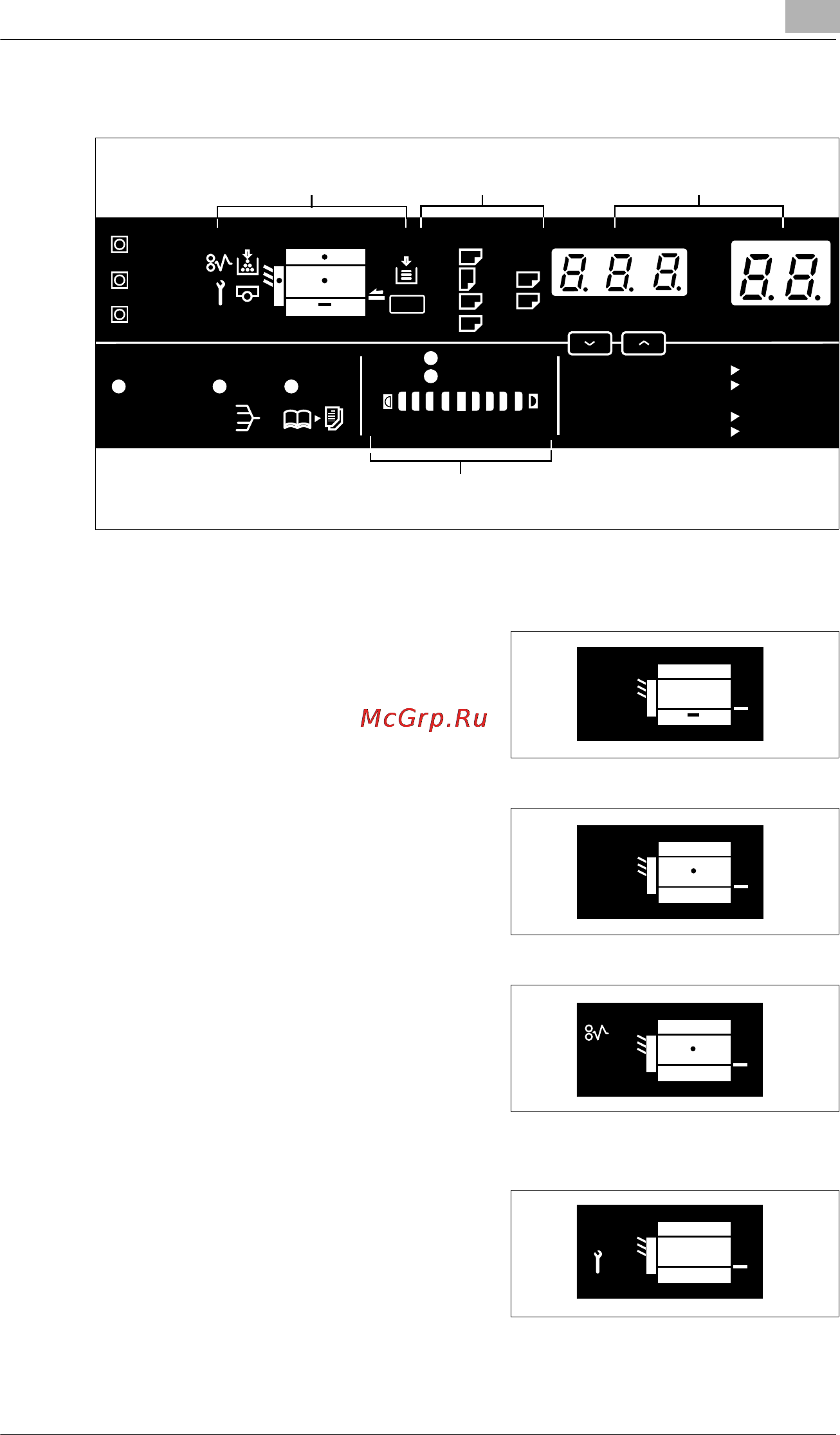

Display
Monitor Display
Paper Source Indicator
Shows the paper source which is
currently selectedfor use, see page
3-10.
Example: Shows that the Drawer is
currently selected for use.
Closure Failure Indicator
The location of a Door left open is
also indicated by a round marker,
see page 5-6.
Example: Indicates that the Front
Door or Right Door is left open.
Misfeed Indicator
Indicates that a paper misfeed has
occurred. The location of the
misfeedis also indicated by a round
marker, see page 5-7.
Example: Shows that a misfeed has
occurred inside the copier.
Call-Tech.-Rep. Indicator
Indicates that the copier has
developed a malfunction.
When a malfunction occurs, the
corresponding malfunction code is
shown across the Zoom Ratio
Indicator and Multi-Copy Display, see page 5-15.
Meter Count
Toner
Drum Dehumidify
Paper
%
50%~200%
1152O030DA
Auto
Lighter Darker
Auto Size Sort Book
Auto/Photo
141% A4
@
A3
115% B4
@
A3
100%
@@@
Full Size
81% B4
@
A4
70% A3
@
A4
A3
@@
A4
@@
B4
A4
@@
FLS.
A5
@@
Inch
Monitor Display
Paper Information
Display
Zoom Ratio Indicator/
Multi Copy Display
Exposure Information
Display
1142O017AA
1142O018AA
1142O019AB
1142O020AA
