Konica Minolta EP1085 [57/115] Auxiliary functions

Auxiliary Functions

EP1085 4-1

4 Auxiliary Functions

4.1 Checking the Total Number of Copies Mode

This function allows you to check the

total count of the two counters of the

copier.

Types of Counters

 Total Counter:

Shows the total number of copies made since the installation of the

copier.

 Size Counter:

Shows the number of copies made on paper of a size preset by the

Technical Representative.

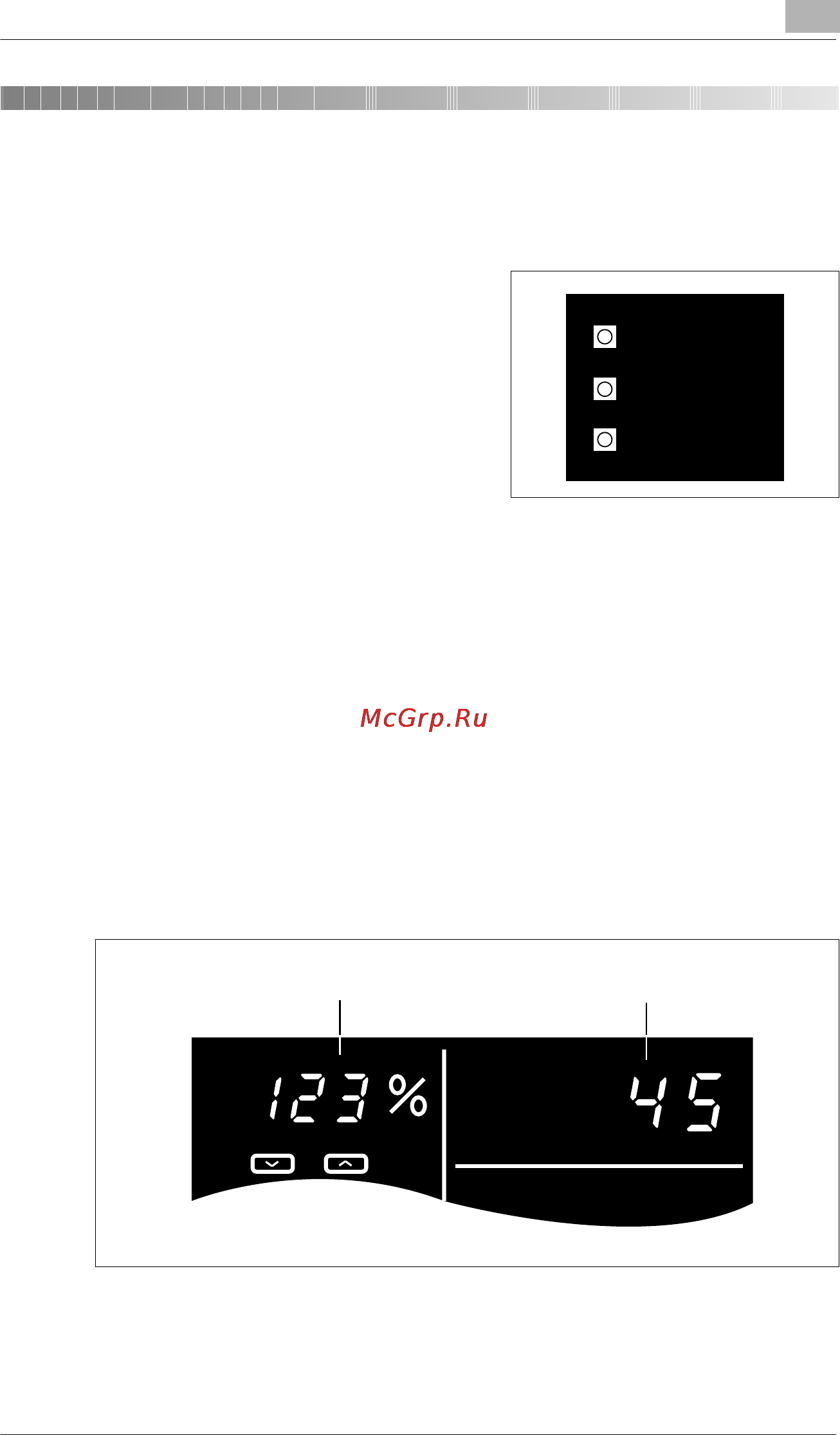

Counter Display

Example: The count is 12,345 (copies).

Meter Count

Toner

Drum Dehumidify

1142O152CA

50%~200%

TheZoomRatio Indicatorshows

the upper 3 digits of the count

The Multi-Copy Display shows

the lower 2 digits of the count
