Getting to Know Your Copier
2
EP1085 2-15

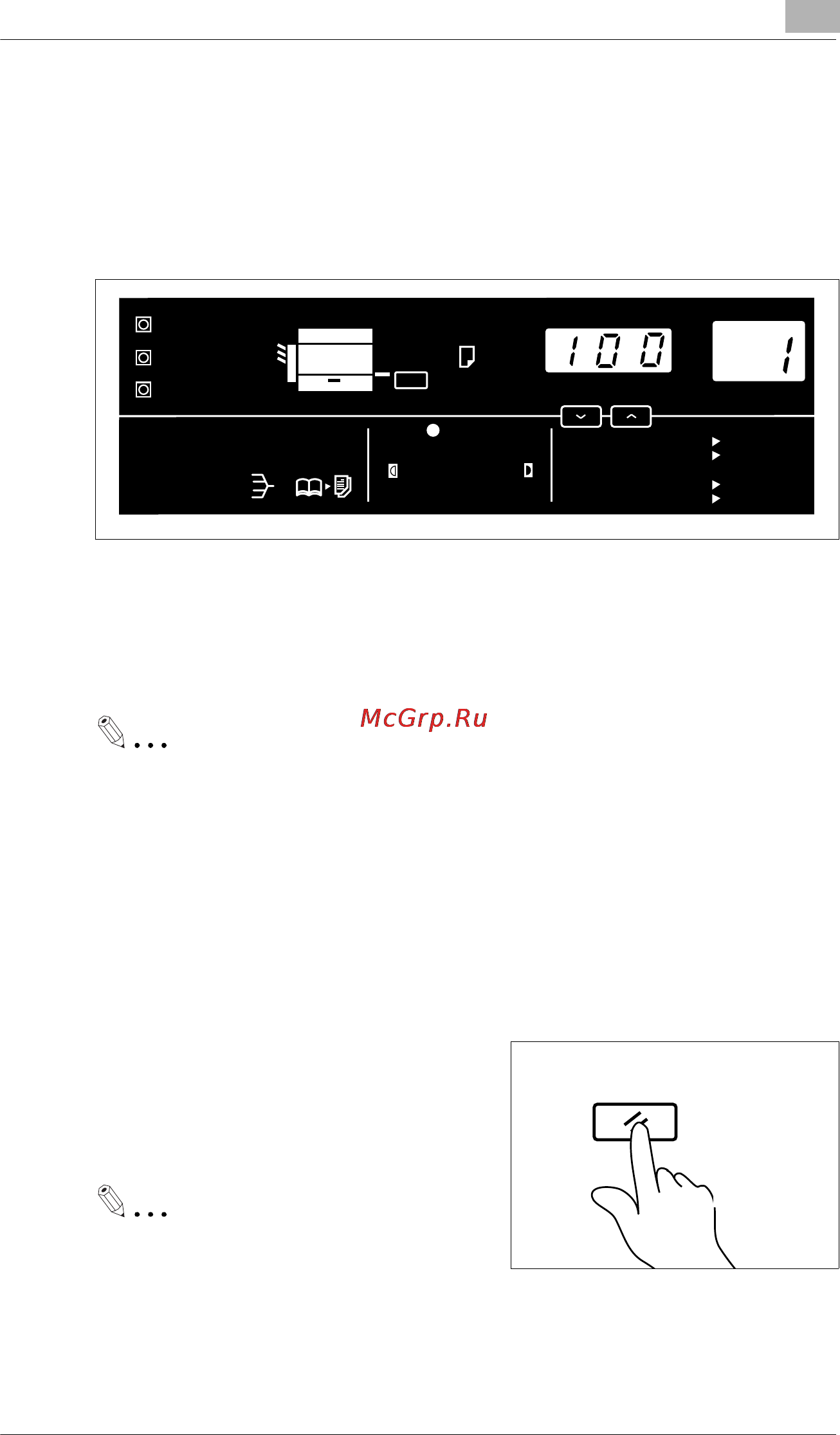

Initial Mode and Panel Resetting
Initial Mode
When the Power Switch is turned ON, the initial settings are indicated on
the control panel. The initial settings serve as the reference for all control
panel settings to be later made.
No. of copies to be made: 1
Zoom ratio: Full size (100%)
Auto Exposure Mode
Non-Sort Mode
Useful Tip
The initial settings can be changed by User’s Choice. For details see
page 4-6.
Panel Resetting
The Panel Reset Key resets all control panel settings to default settings
including the number of copies to be made and zoom ratio.
If the Automatic Document Feeder is
used, the original present on the
Original Glass will be ejected out of the
unit.
Useful Tip
The Panel Reset Key enables you
tocancelallprevioussettingsefficiently.Toavoidmiscopy,tryto press
the Panel Reset Key before attempting to make any setting for your
own job.
Meter Count
Toner
Drum Dehumidify
Paper
%
50%~200%
Auto
Lighter Darker
Auto Size Sort Book
Auto/Photo
141% A4
@
A3
115% B4
@
A3
100%
@@@
Full Size
81% B4
@
A4
70% A3
@
A4
A3
@@
A4
@@
B4
A4
@@
FLS.
A5
@@
Inch
Panel Reset
1139O4782A
