Konica Minolta EP1085 [77/115] Misfeed indicator and monitor display

When an Indicator Lights Up

EP1085 5-7

Misfeed Indicator

If apaper misfeed occurs during a copy

cycle, that copy cycle stops. The Mis-

feed Indicator lights up and the Monitor

Displayshows the location. At this time,

you cannot start a new copy cycle.

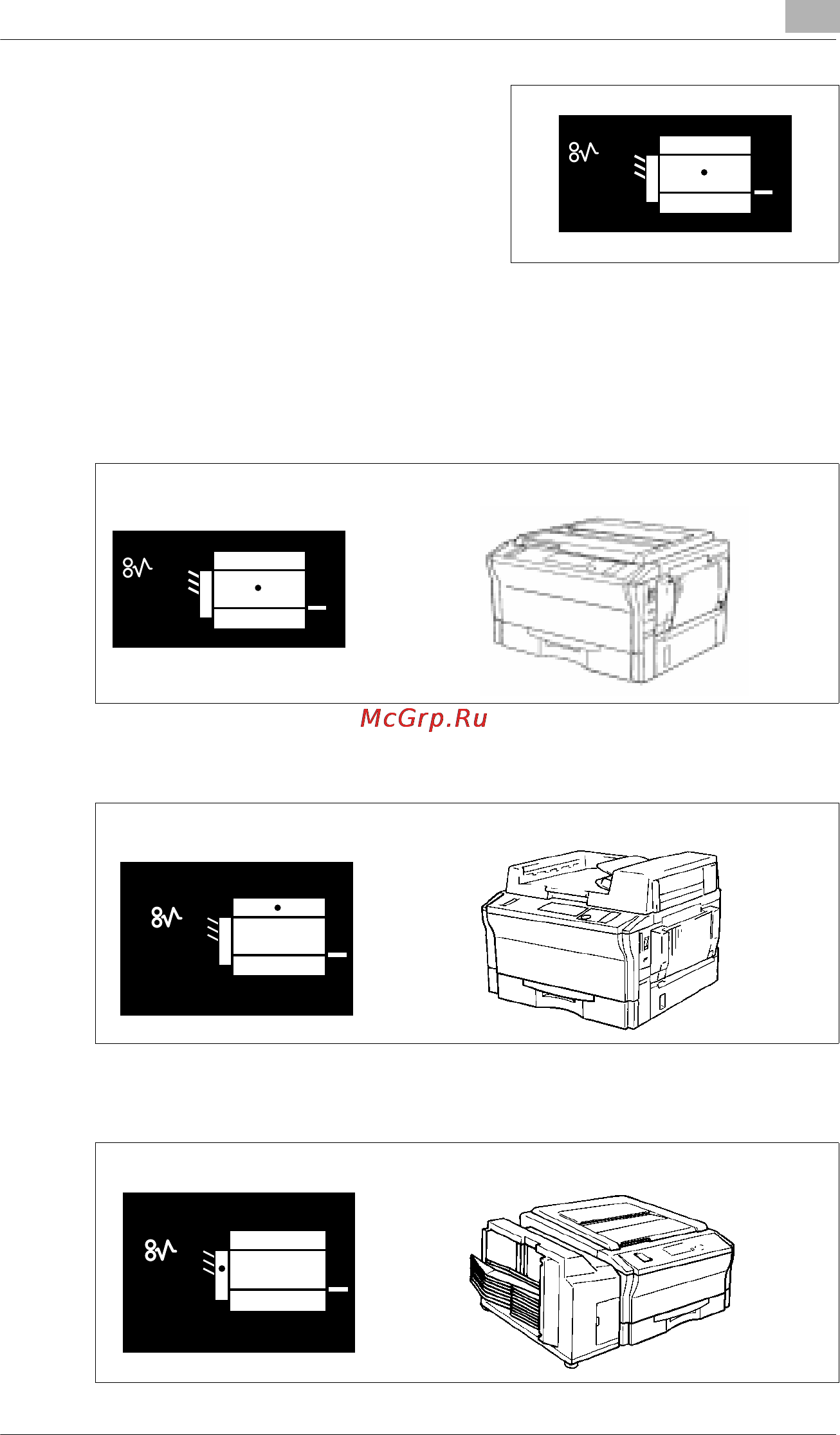

Misfeed Indicator and Monitor Display

Check the Monitor Display for the location of the misfeed, and clear the

misfed sheet of paper according to the procedure given for each location.

Misfeed in the copier see page 5-8.

Misfeed in the Automatic Document Feeder see page 5-12.

Misfeed in the Sorter see page 5-14.

1142O019AB

Monitor Display Misfeed Location

1142O019AB

Monitor Display Misfeed Location

1142O068AC

Monitor Display Misfeed Location

1142O069AC
