When an Indicator Lights Up
5
EP1085 5-3

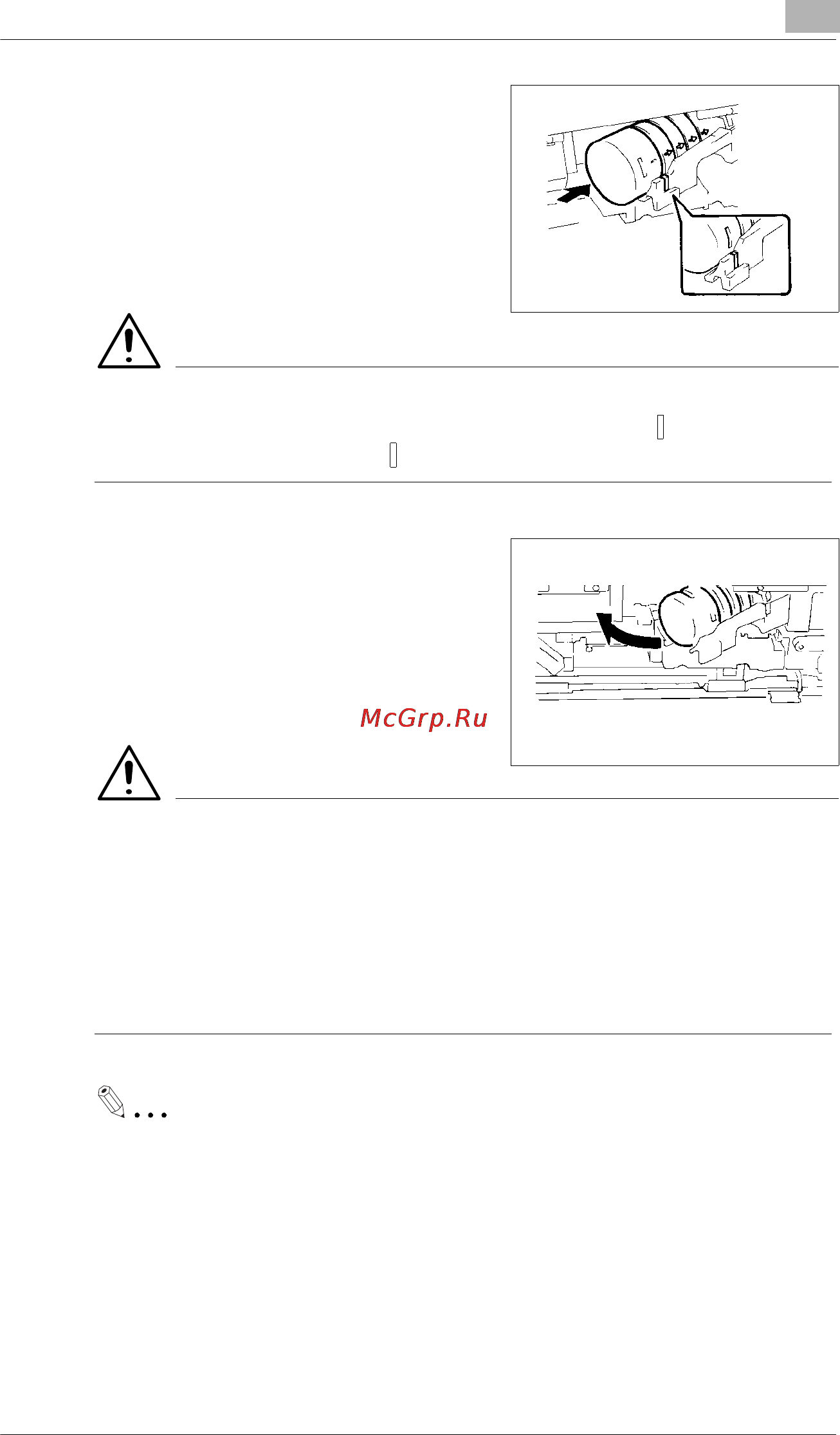

5 Ensuring that the arrows ( ) on the
Toner Bottle are facing you, insert
theBottleintoposition.
NOTE
è Insert the Bottle all the way into the copier until the marking on the
Bottle is aligned with the marking on the Toner Bottle Holder.
6 Swing the Toner Bottle Holder
closed and close the Front Door.
NOTES
è Try to replace the Toner Bottle with a new one as soon as possible
once the Add Toner Indicator lights up. Continuing to make copies
without changing the Toner Bottle will result in increasingly lighter
images.
è Use ONLY the specified toner for this copier. Using any other toner
could result in image trouble.
Toner Replenisher Function
Use the Toner Replenisher Function if the image is light immediately
after replacing the Toner Bottle with a new one, see page 4-3.
