15

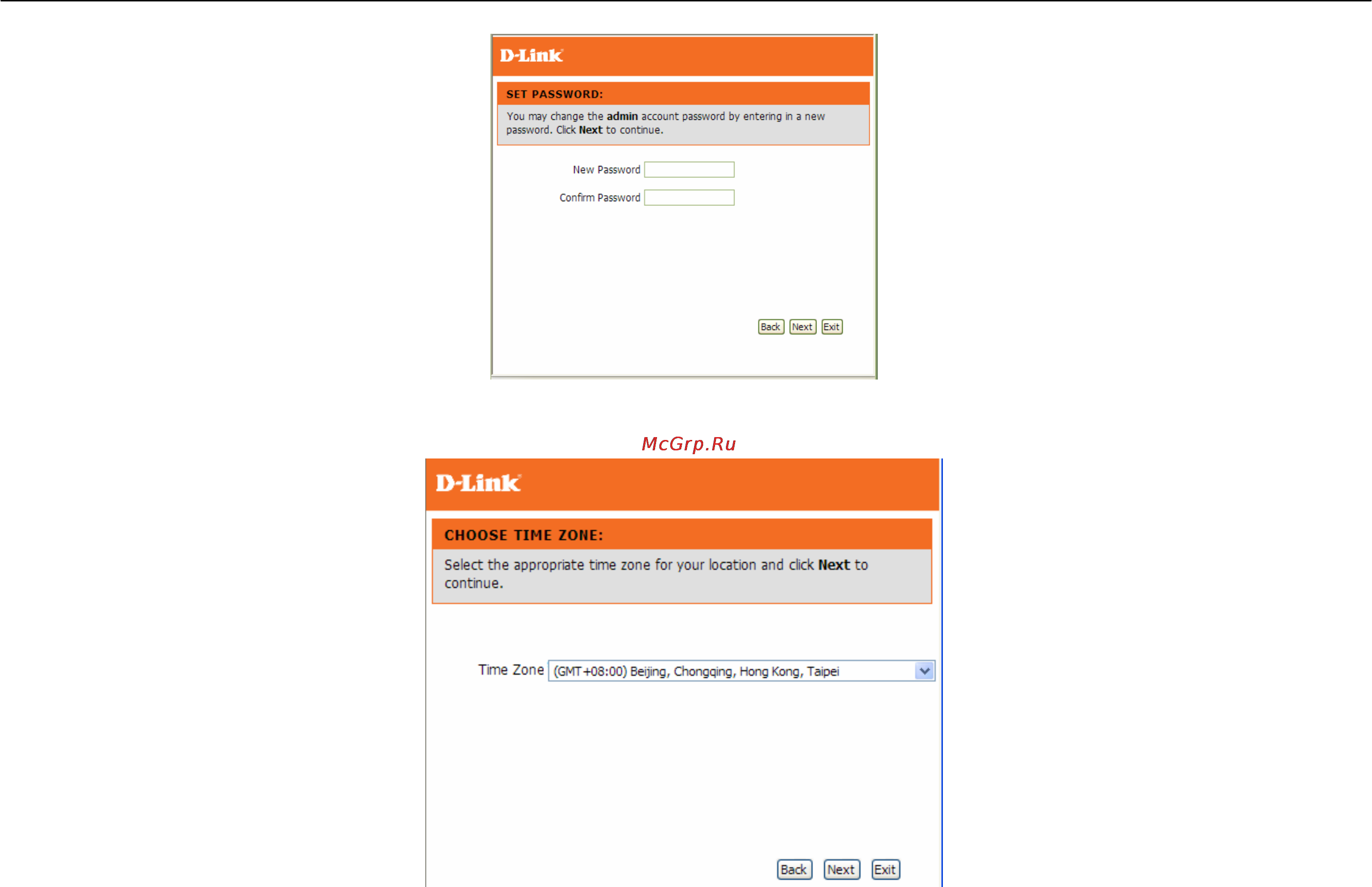

It is recommended you set an admin password here. Enter the new password and re-enter it for confirmation. Click ‘Next’ to
continue.
Set the appropriate Time Zone and click ‘Next’ to continue.
Section 3 - Configuration
