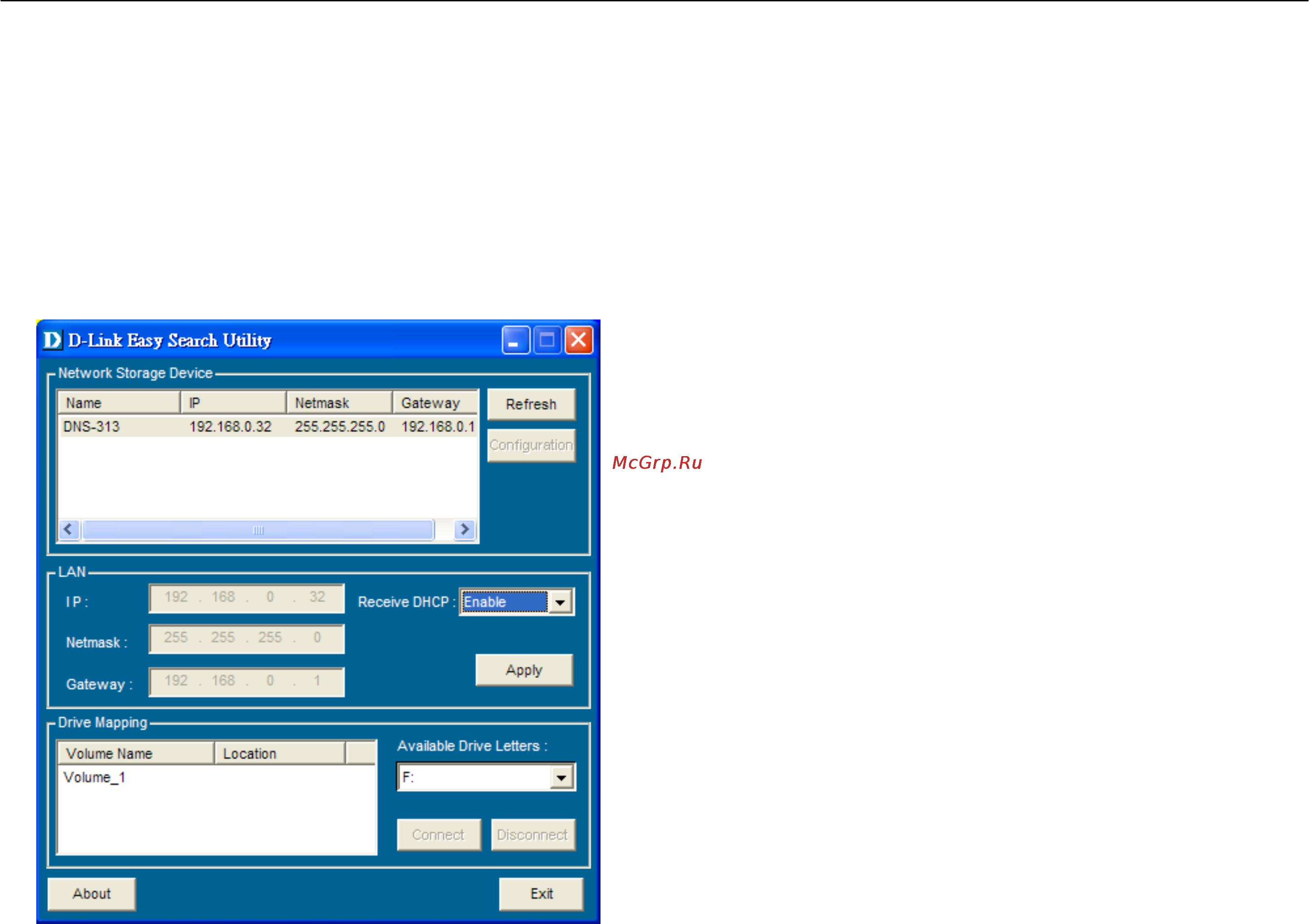

Easy Search Utility
The Easy Search Utility included in the CD provides many useful functions help you to discover the device,
assign the IP address, mapping a drive, and connect to the device GUI.
To run the Easy Search Utility, insert the DNS-313 CD into your CD-ROM drive, and click Easy Search Utility.
