D-Link DNS-313 [61/67] Scheduling
![D-Link DNS-313 [61/67] Scheduling](/views2/1013329/page61/bg3d.png)
61
Scheduling

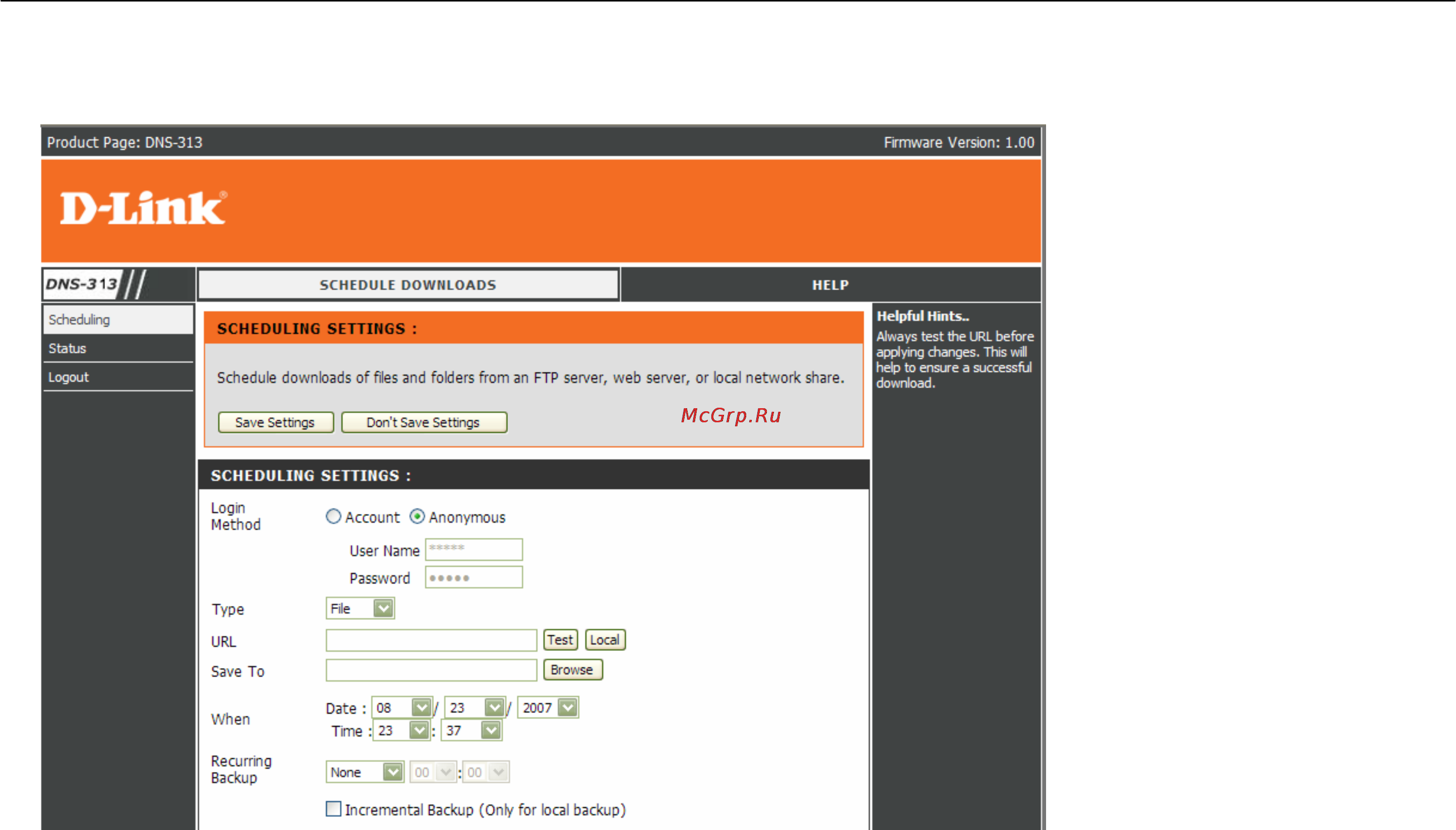

Scheduling Settings
Configure download and backup schedules here.
Schedule List
The Schedule List will display all completed, active, and pending scheduled downloads and backups.
Section 3 - Configuration
