LAN Setup

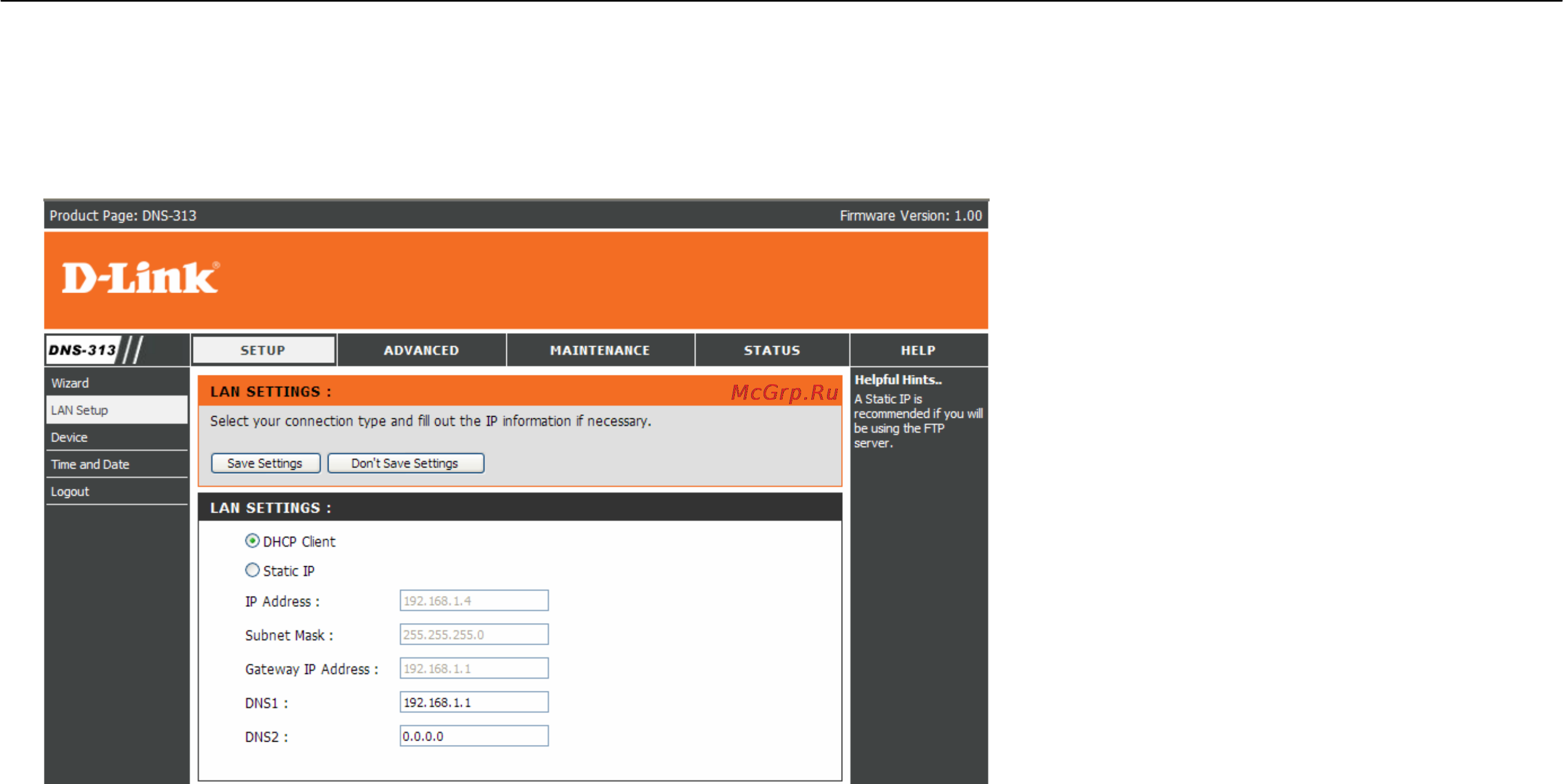

The Local Area Network settings for the DNS-313 are configured on the LAN page.
DHCP Client
Selecting DHCP Client will cause the DNS-313 to obtain an IP address from the local DHCP server.
Static IP
Selecting Static IP requires the user to assign the IP information for the DNS-313 manually.
Section 3 - Configuration
