40
System

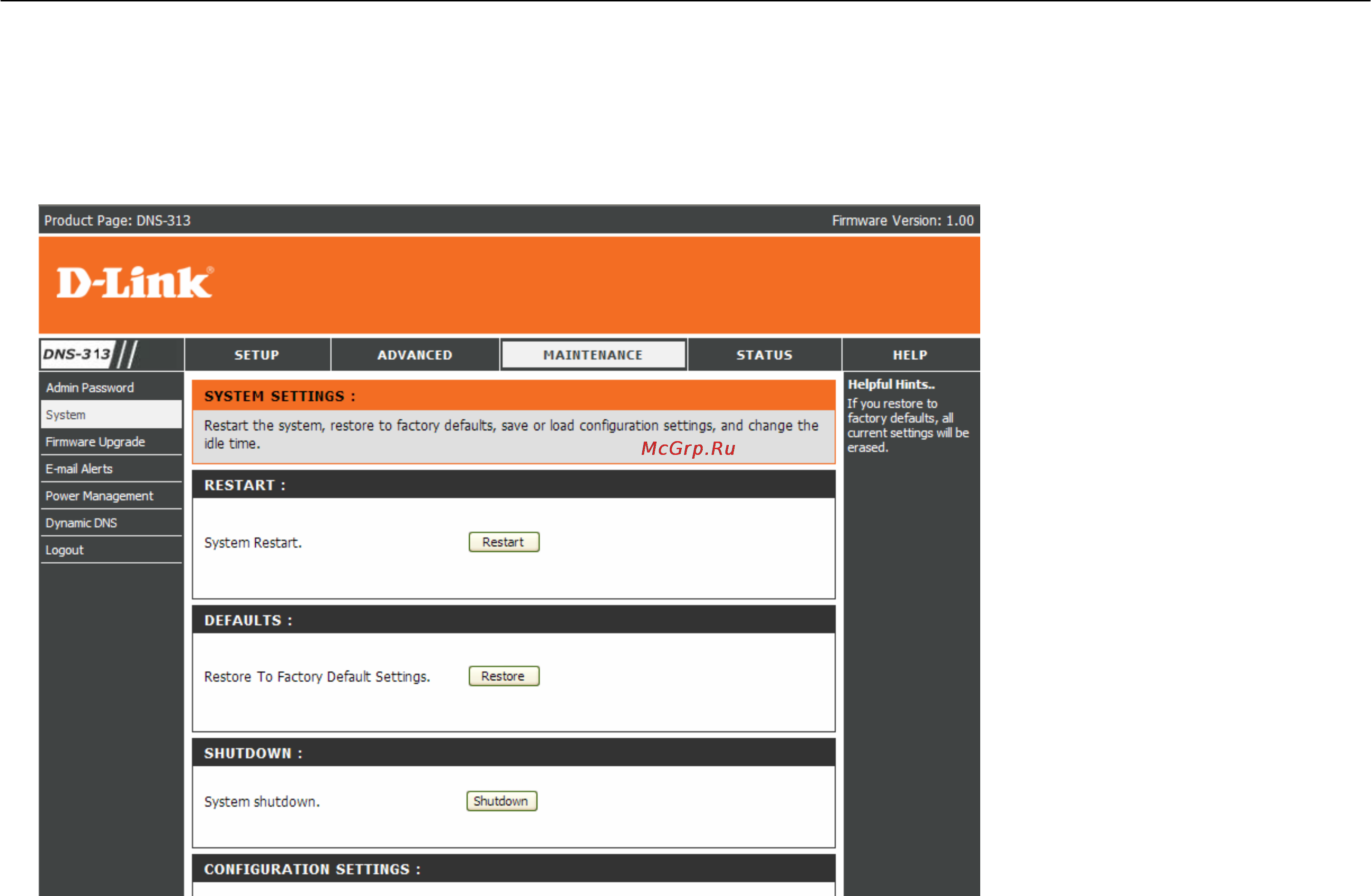

The DNS-313 System menu provides options for system restarts, saving and loading configuration settings,
and setting idle times.
Restart
Click ‘Restart’ to reboot the DNS-313.
Section 3 - Configuration
