31
UPnP AV Server
The DNS-313 features a UPnP AV Server. This server provides the ability to stream photos, music and
videos to UPnP AV compatible network media players. If the server is enabled, the DNS-313 will be
automatically detected by UPnP AV compatible media players on your local network.

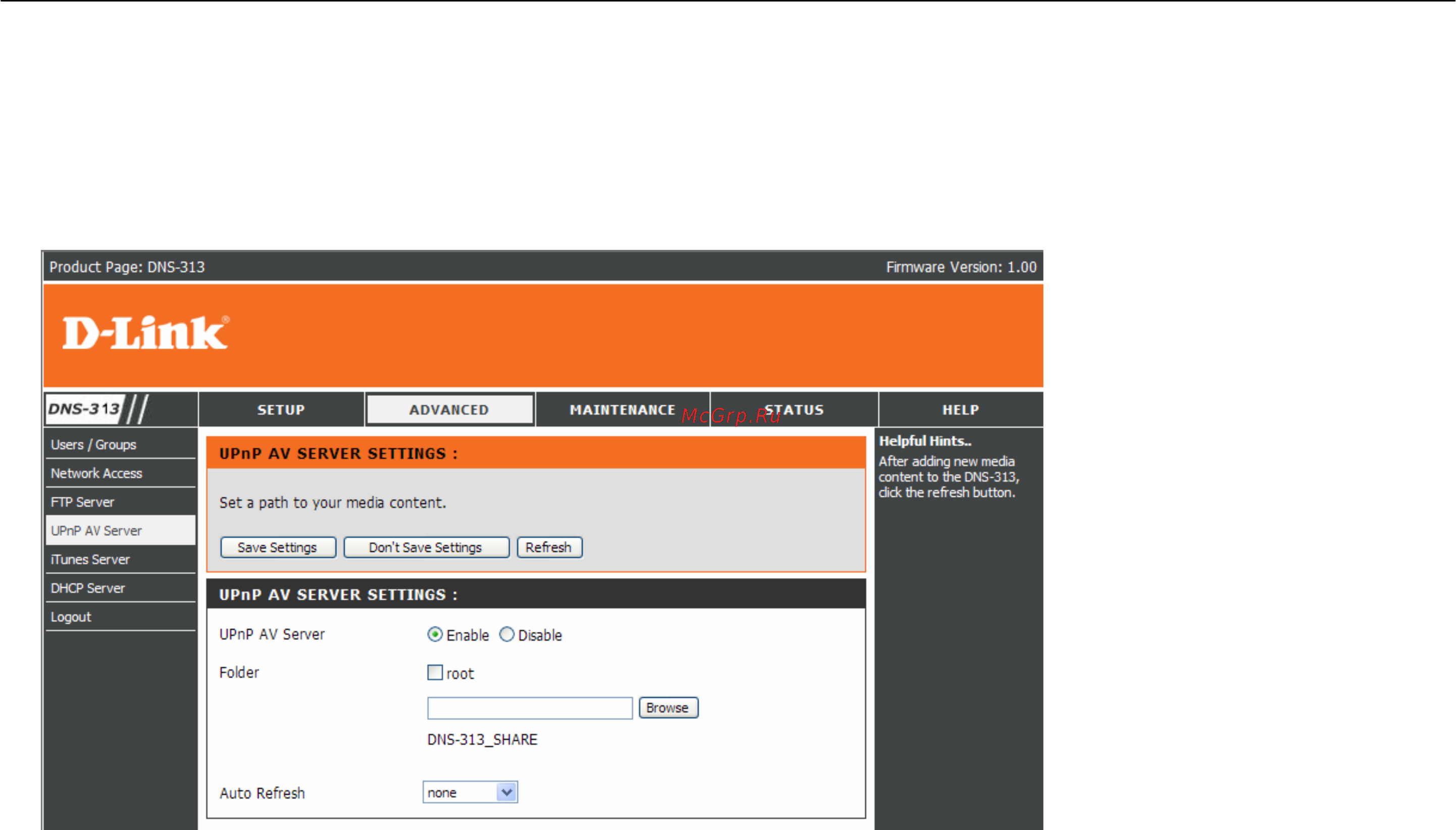

UPnP AV Server
Select Enable or Disable to enable or disable the DNS-313 UPnP AV server.
Folder
Specifies the folder or directory that will be shared by the UPnP AV server. Select root to share the entire volume, or click
‘Browse’ to select a specific folder
Section 3 - Configuration
