34
‘Browse’ to select a specific folder.
Password
Sets password for the iTunes server.
Refresh
Click ‘Refresh’ after adding new files to be used with iTunes.
After enabling the iTunes server on the DNS-313, launch iTunes. When iTunes detects the DNS-313, select it
and you will be prompted to enter the iTunes server password.

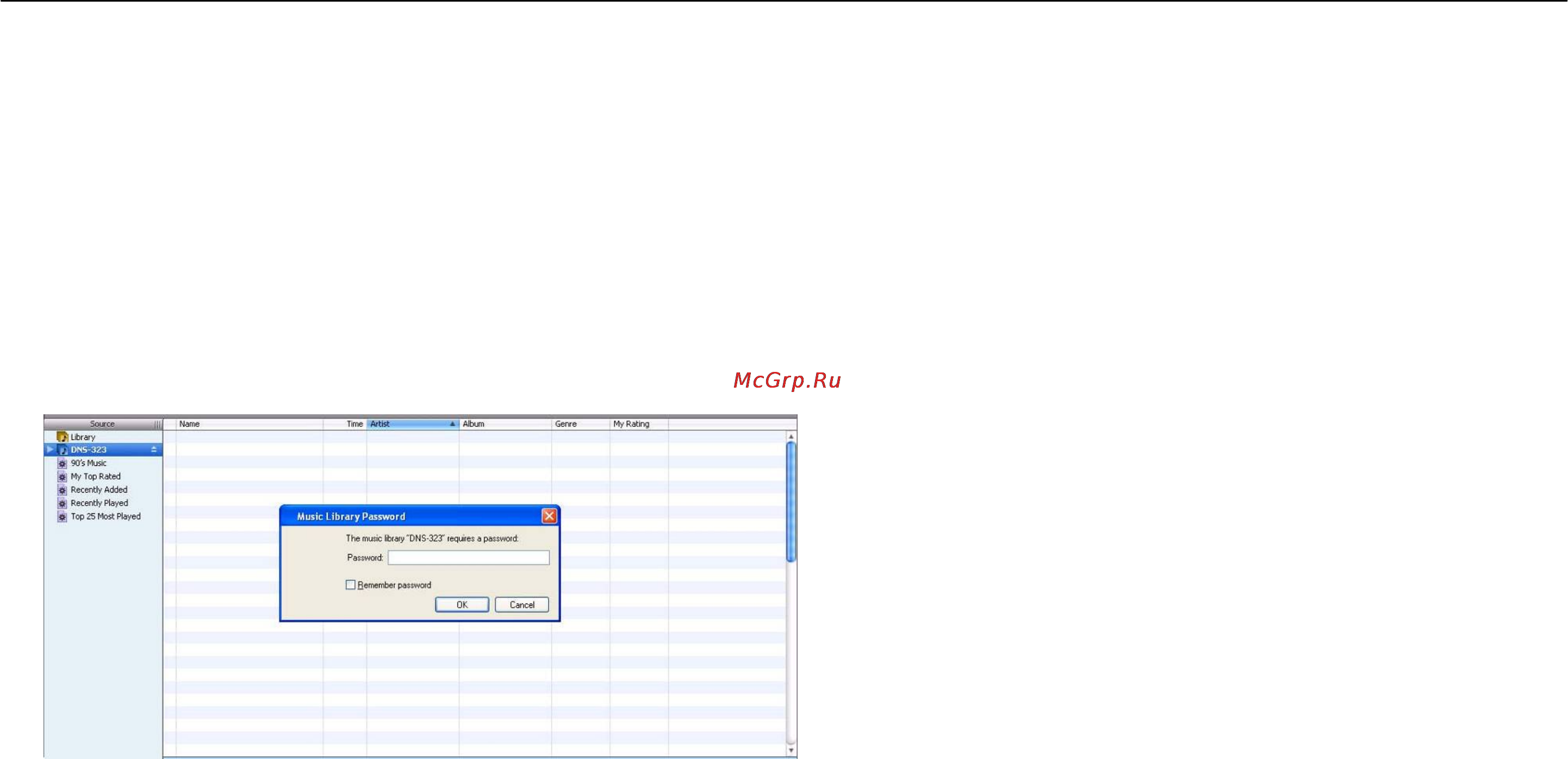

Select the DNS-313. When prompted, enter in the iTunes server password. Click OK.
Section 3 - Configuration
