Device Settings

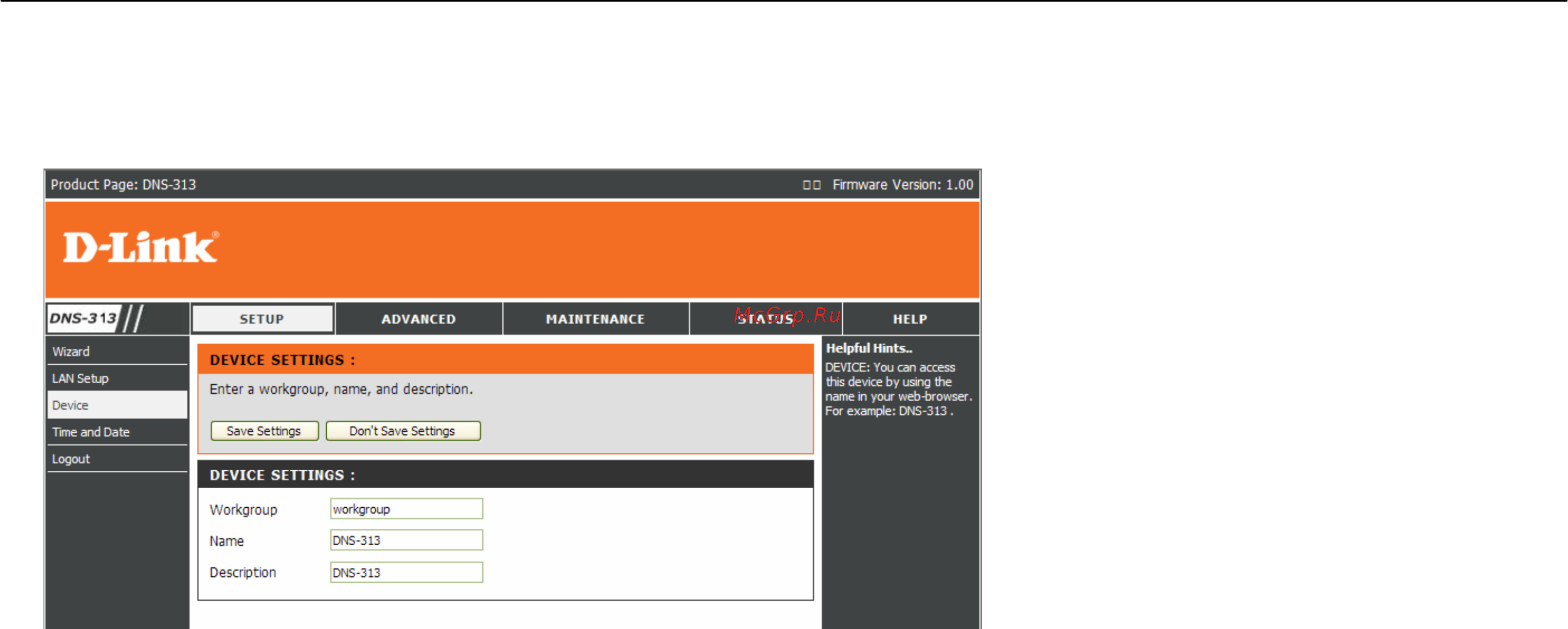

The device settings page allows you to assign a workgroup, name and description to the DNS-313.
Workgroup
Assigns a workgroup name to the DNS-313.
Name
Assigns a name to the DNS-313. The name can be used to access the device from a web browser instead of the IP address, for
example, http://DNS-313.
Description
Assigns a unique device description to the DNS-313.
