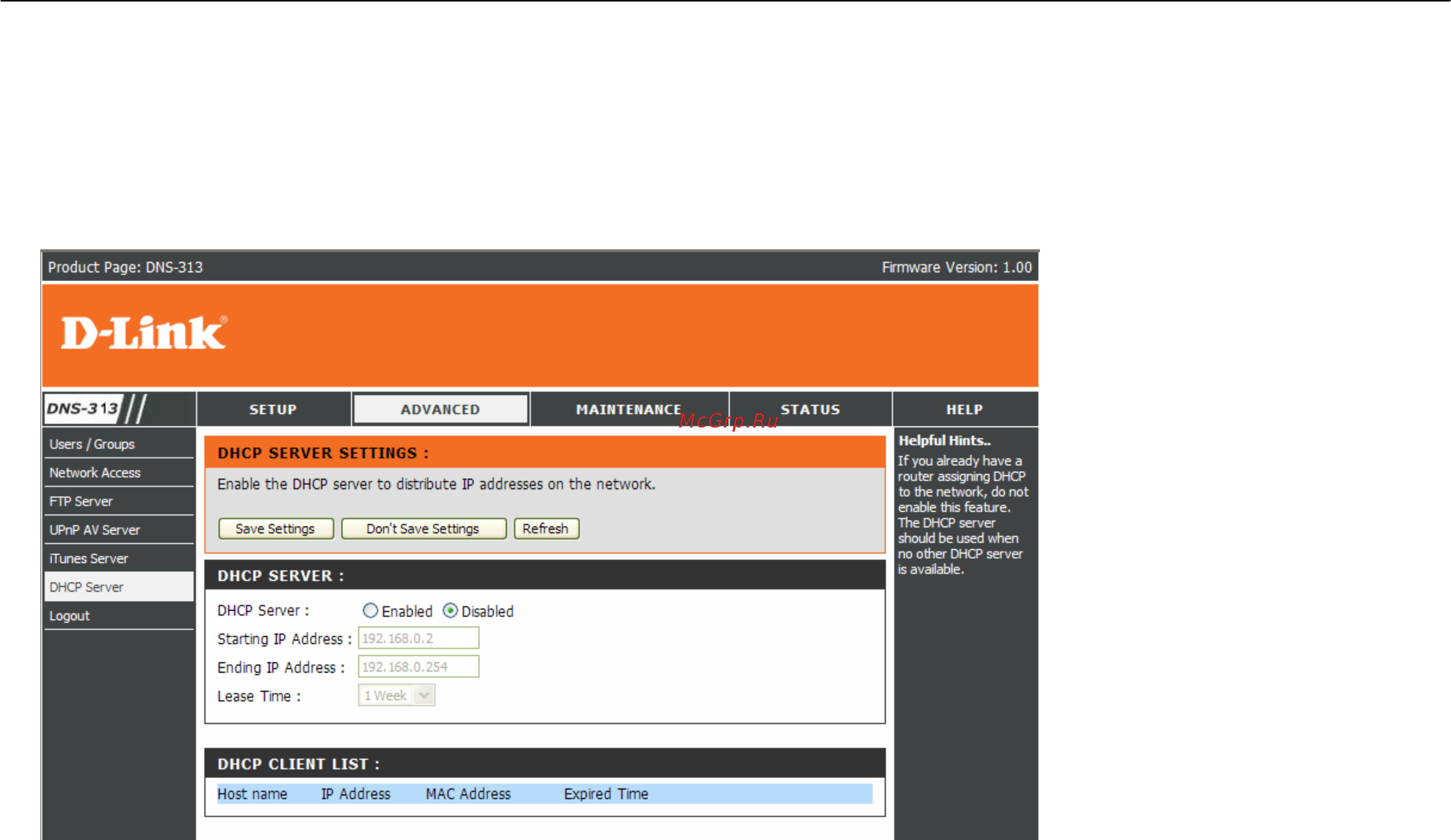

DHCP Server
The DNS-313 can also be used as a DHCP Server. As a DHCP server, it can be used to serve IP
addresses to devices on your local network, however, this feature should not be enabled if you already have
a DHCP server, such as a router on your local network.
DHCP Server
Enables or Disables the DNS-313 DHCP Server.
Starting IP Address
Enter the starting IP address for the range of addresses assigned by the DHCP server.
Section 3 - Configuration
