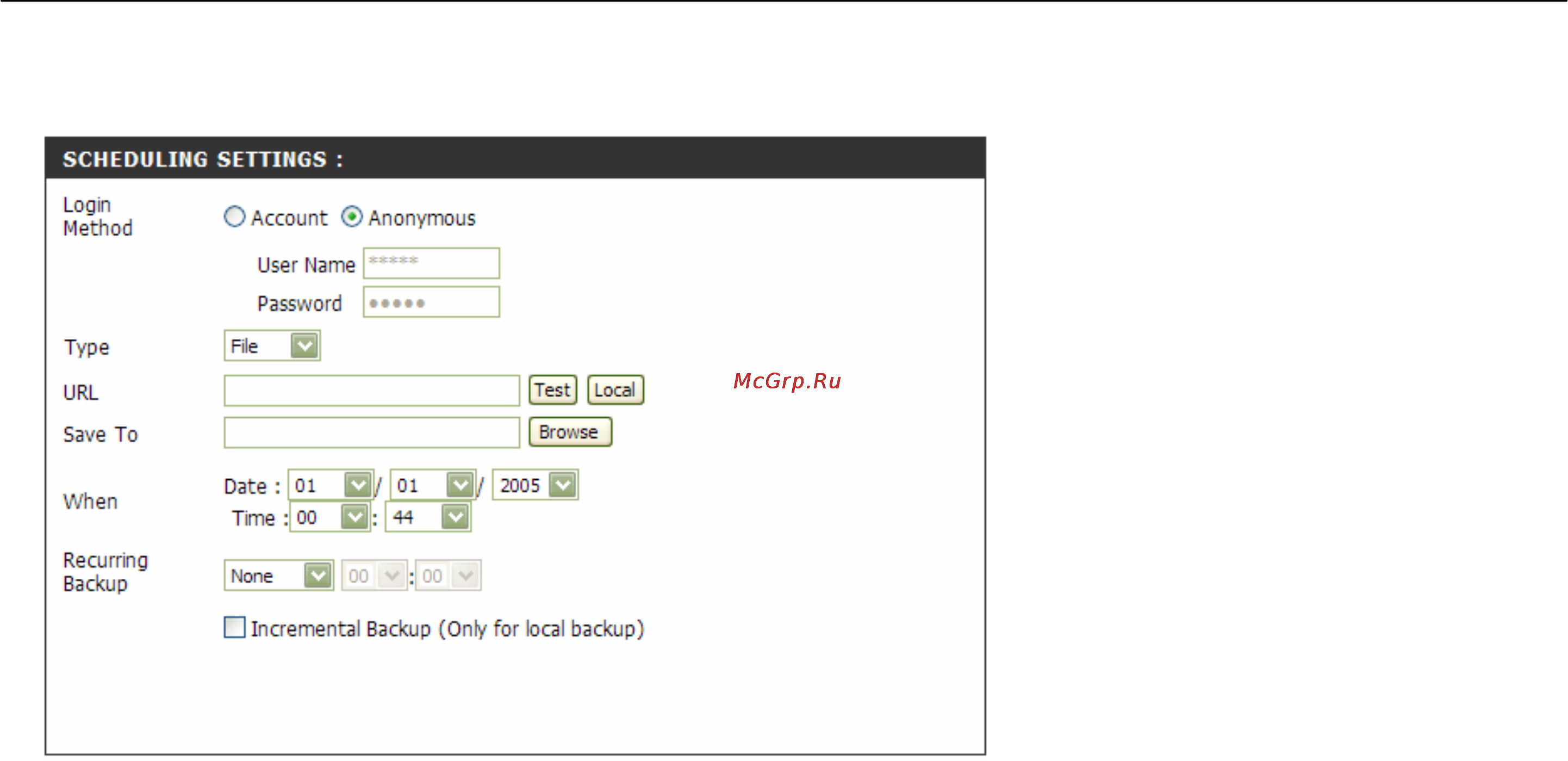

Scheduling Settings

Select the appropriate login method to access the files for download. If the site requires login credentials, select Account and

enter a valid username and password.

Type

Select File or Folder, depending on what you want to download or backup.

URL

Enter the URL of the site or server you are initiating a transfer from.

Section 3 - Configuration
